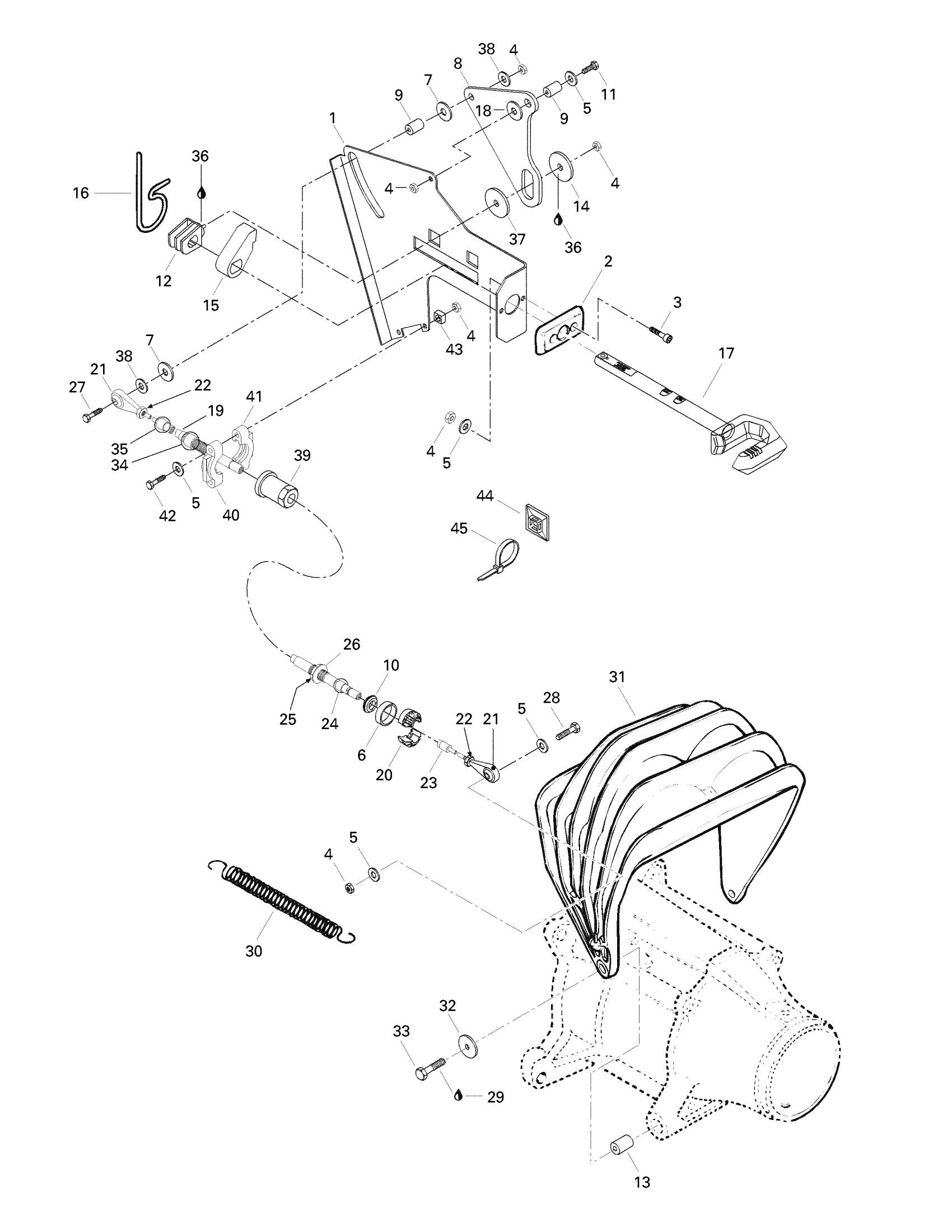

Sea-doo Explorer, 5824, 1997 05- Reverse Diagram

#

Description
Price

1

Reverse Support Plate

271000261

Unavailable

2

Guide Plate

271000057

Unavailable

3

SCREW-SOCKET BN.HD.M6 X 20 - Call your local BRP dealership

211000018

Unavailable

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

Stainless Flat Washer M6

234061600

$0.33

6

Retaining Ring

211100010

Unavailable

7

Flat Washer 10 mm

217001000

Unavailable

8

Triangular Lever

271000260

Unavailable

9

Bushing

271000293

Unavailable

10

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

11

Hex. Screw M6 X 25

207162560

$1.47

12

Sliding Block

271000269

Unavailable

13

Bushing

271000152

Unavailable

14

Washer

271000061

Unavailable

15

Catch

271000268

Unavailable

16

Spring

271000270

Unavailable

17

Reverse Handle

271000288

Unavailable

18

Flat Washer 10 mm

217001000

Unavailable

19

REVERSE CABLE - Call your local BRP dealership

277000282

Unavailable

20

Half-Ring

277000168

Unavailable

21

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

22

Hex. Nut

212100005

$1.35

23

Small Boot

277000038

Unavailable

24

LARGE BOOT - Call your local BRP dealership

277000039

Unavailable

25

Hex. Jam Nut 1/2-20

211100011

Unavailable

26

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

27

Hex. Screw M6 X 40

207064060

$1.69

28

HEX. SCREW M6 X 45 - Call your local BRP dealership

207064560

Unavailable

29

Loctite 243, 10 ml

293800060

$21.49

30

Spring

271000083

Unavailable

31

Reverse Gate (Black)

271000149

Unavailable

32

Stainless, Flat Washer 8 mm

234081600

$0.55

33

Hex. Screw M8 X 35

207083560

$1.47

34

Large Boot

277000277

Unavailable

35

SMALL BOOT - Call your local BRP dealership

277000278

Unavailable

36

Synthetic Grease, 400 G

293550010

Unavailable

37

Flat Washer 20 mm

211200012

Unavailable

38

Flat Washer M6, Stainless

234062600

$0.77

39

KNOB ADJUSTER - Call your local BRP dealership

277000167

Unavailable

40

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

41

Thrust Support

271000257

Unavailable

42

Hex. Screw M6 X 50

207065060

$2.22

43

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

44

TIE RAP MOUNT - Call your local BRP dealership

293750003

Unavailable

45

Tie Wrap 142 mm

293750002

$1.25
