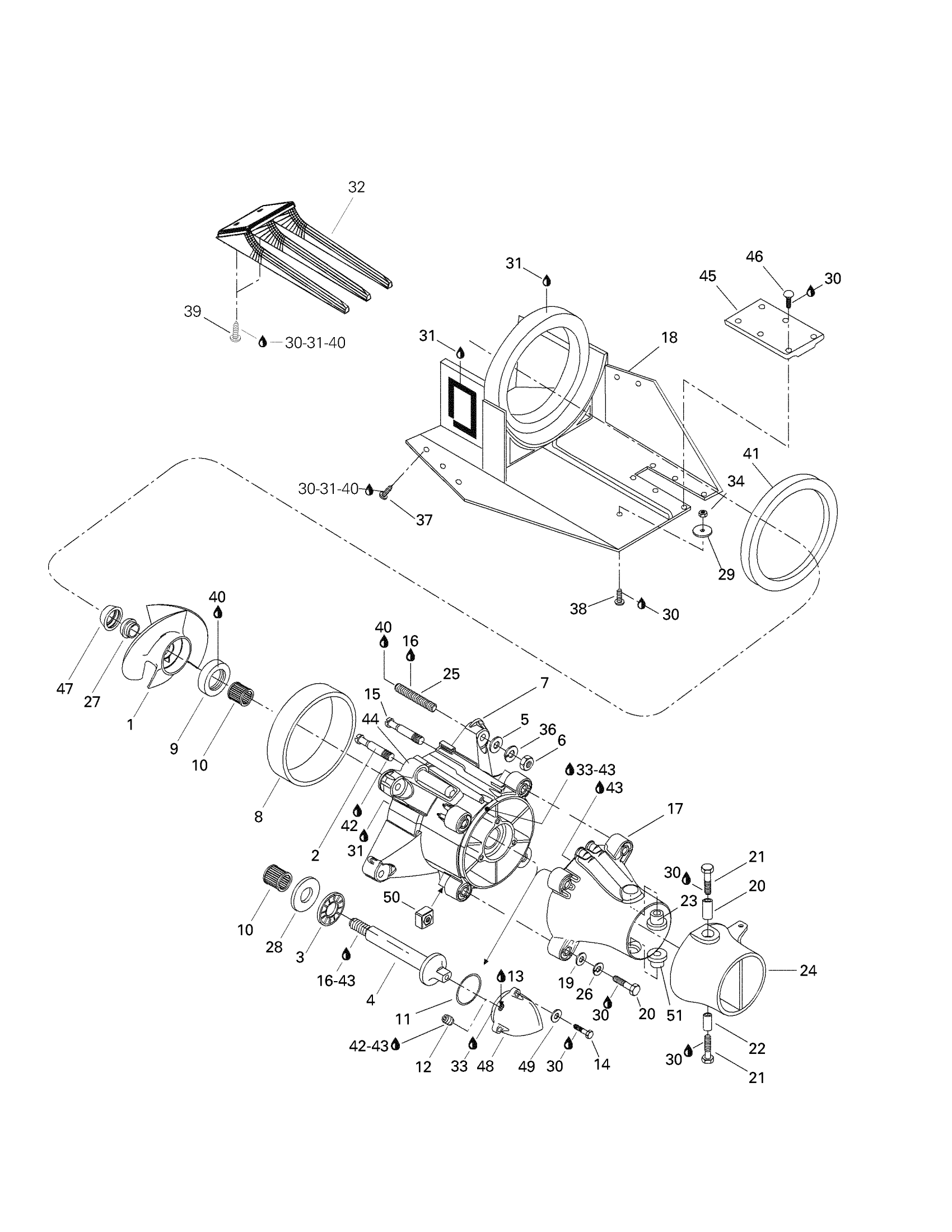

Sea-doo Explorer, 5824, 1997 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000470

$391.99

2

BAILER FITTING - Call your local BRP dealership

293700017

Unavailable

3

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Flat Washer 10 mm, Stainless

234001600

$1.15

6

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

295500429

Unavailable

8

Wear Ring

271000290

$58.49

9

Oil Seal

267000094

$22.49

10

Needle Bearing

293350017

$27.99

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

14

Hex. Screw M5 X 20

207152060

$1.47

15

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

16

Loctite 271, 10 ml

293800005

$26.99

17

VENTURI ASS'Y - Call your local BRP dealership

271000510

Unavailable

18

Shoe

271000407190

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$2.43

20

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.90

21

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

22

Sleeve

271001816

$14.99

23

Venturi Bushing

293900001

$7.62

24

STEERING NOZZLE ASS'Y - Call your local BRP dealership | Includes 23 - 24.

271000418

Unavailable

25

STUD-M10 - Call your local BRP dealership

211300015

Unavailable

26

Lock Washer 8 mm, Stainless

234181601

$0.55

27

Impeller Boot

271000516

$9.59

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

Anode-Zinc

204000477

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

Inlet Grate

271000537

Unavailable

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

34

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

35

O-Ring

293300013

$8.18

36

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

37

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

38

Screw 1/4-20 x 5/8

211000084

Unavailable

39

Phillips Screw M6 X 25

208562560

$2.32

40

Silicone Sealant 51388, 300 ml

296000309

$36.99

41

SEAL NEOPRENE - Call your local BRP dealership

293200024

Unavailable

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

43

Was 293800041 Loctite Primer 7649

219704458

$39.99

44

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

45

Ride Shoe Cap

291000446

Unavailable

46

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

47

Impeller Ring

271000517

$9.59

48

Impeller Cover

271000553

Unavailable

49

Flat Washer M5, Stainless

234051600

$0.77

50

Square Nut M8

211100033

$17.99

51

Plastic Bushing

293900010

$9.59
