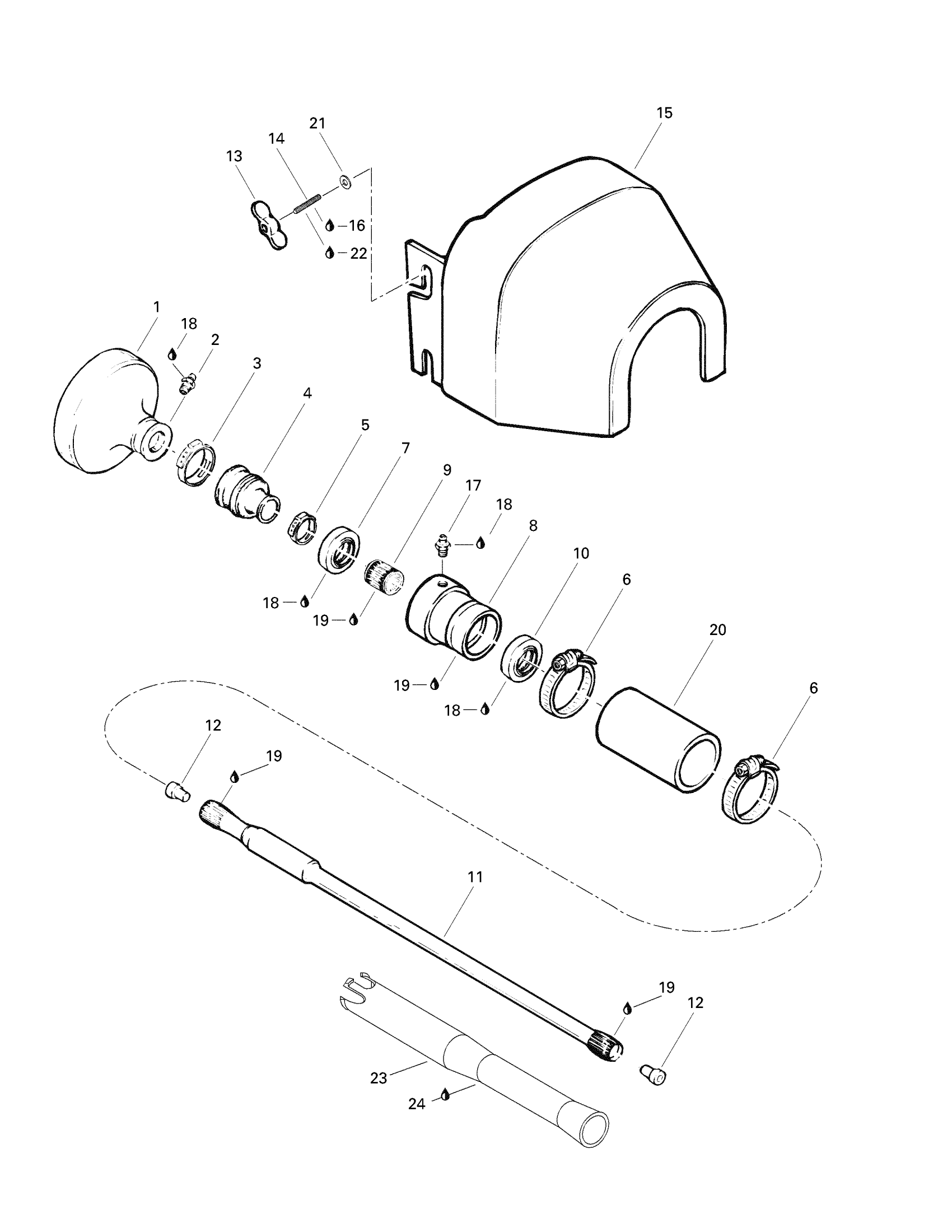

Sea-doo Explorer, 5824, 1997 05- Drive System Diagram
#
Description
Price
1
Clutch-Flywheel | Includes 23 - 24.
290958011
Unavailable
2
GREASE FITTING - Call your local BRP dealership
290499113
Unavailable
3
OETIKER CLAMP - Call your local BRP dealership
293650021
Unavailable
4
RUBBER BOOT - Call your local BRP dealership
272000001
Unavailable
5
OETIKER CLAMP - Call your local BRP dealership
293650067
Unavailable
6
Tridon Clamp
293650035
$7.29
7
Oil Seal
267000094
$22.49
8
SEAL CARRIER - Call your local BRP dealership
272000024
Unavailable
9
NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership
293350007
Unavailable
10
DOUBLE LIP SEAL - Call your local BRP dealership
293200012
Unavailable
11
Drive Shaft
272000044
Unavailable
12
DRIVE SHAFT PLUG - Call your local BRP dealership
272000019
Unavailable
13
Wing Nut M8
232681100
$2.19
14
Stud M8 x 15
211300013
Unavailable
15
Flywheel Guard
272000122
Unavailable
16
Loctite 271, 10 ml
293800005
$26.99
17
GREASE FITTING - Call your local BRP dealership
293550008
Unavailable
18
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
19
Synthetic Grease, 400 G
293550010
Unavailable
20
PROTECTION HOSE - Call your local BRP dealership
271000311
Unavailable
21
Flat Washer 8 mm, Stainless
234082600
$2.43
22
Loctite 243, 10 ml
293800060
$21.49
23
Shaft Protector
271000536
Unavailable
24
Instant Gasket
219701421
$51.99
