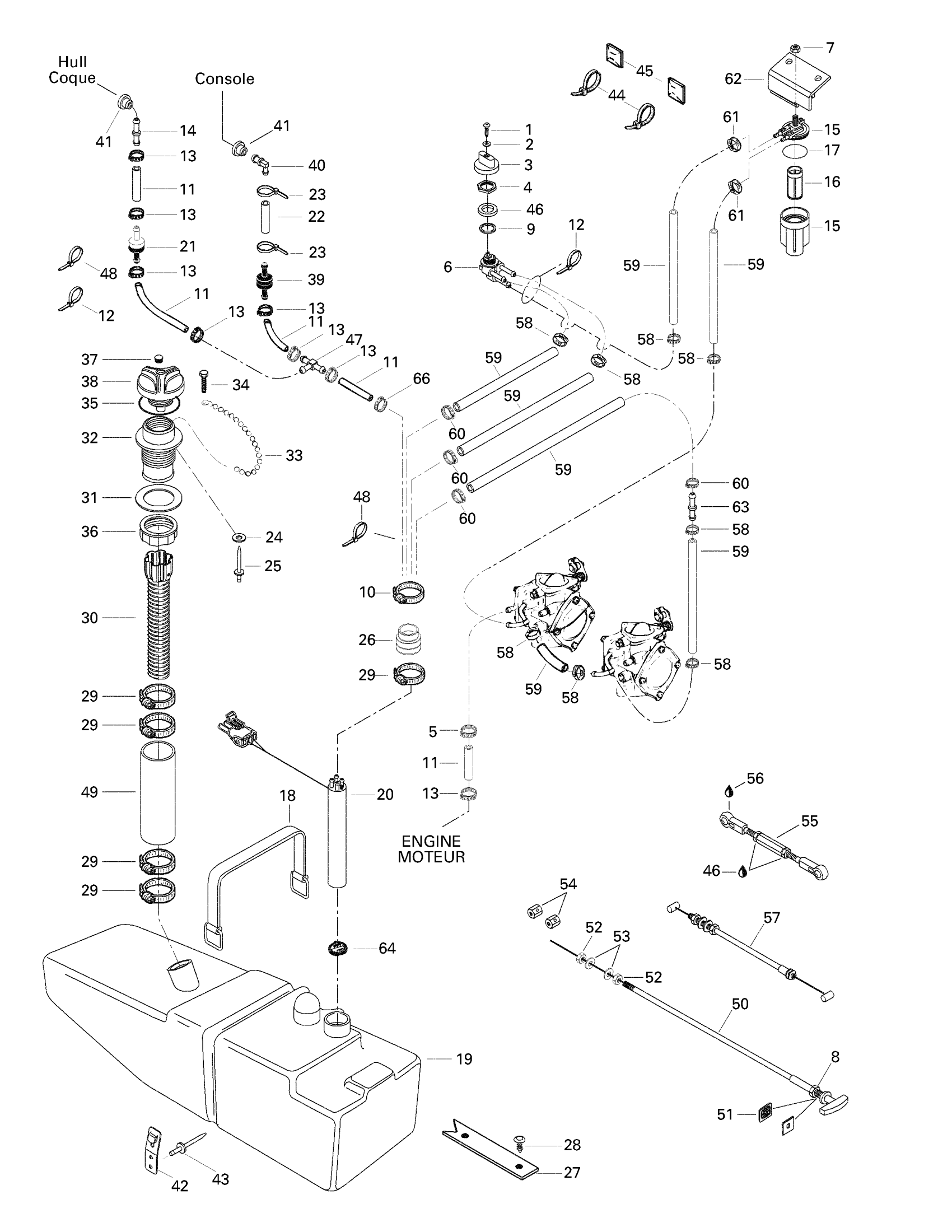

Sea-doo Explorer, 5824, 1997 02- Fuel System Diagram
#
1
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
2
Flat Washer 4 mm
234040600
$0.55
3
Fuel Valve Knob (Black)
275500134
Unavailable
4
HEX. PLASTIC NUT - Call your local BRP dealership
212100009
Unavailable
5
Tridon Clamp
280650038
Unavailable
6
Fuel Valve
275500098
$43.99
7
Hex. Elastic Stop Nut M6
232561600
$1.15
8
Hex. Nut
211100007
Unavailable
9
GASKET - Call your local BRP dealership
293250004
Unavailable
10
Tridon Clamp
293650035
$7.29
11
HOSE-6MM. 5000MM LONG - Call your local BRP dealership
219704396
Unavailable
12
Tie Wrap 368 mm
293750008
$1.04
13
Oetiker Clamp
293650042
$3.09
14
Straight Fitting
293710035
$8.89
15
Fuel Filter Ass'y | Includes 15 - 17.
275500088
$42.49
16
FUEL FILTER - Call your local BRP dealership
275500089
Unavailable
17
O-Ring
275500090
$8.79
18
Strap
293850023
Unavailable
19
Fuel Tank
275500218
Unavailable
20
BAFFLE - Call your local BRP dealership | Includes 20 - 22.
275500226
Unavailable
21
Pressure Relief Valve (1.5 P.S.I)
275500104
Unavailable
22
Was 415110000 Polyurethane Hose 5.2 mm
219704414
$121.99
23
Tie Wrap 94 mm | 4X4
293750001
$1.03
24
Flat Washer M3, Stainless
234032600
$0.55
25
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
26
Tube Adapter
275500111
Unavailable
27
Pad Rubber
293830033
Unavailable
28
Black, Dart
293730006
$0.99
29
Tridon Clamp
293650023
$13.49
30
Filler Neck Hose
275500181
Unavailable
31
Gasket
293250029
$14.82
32
Filler Neck
275500175
Unavailable
33
Oil Cap Chain
275500015
Unavailable
34
Screw K40 X 10
241140060
$1.48
35
Gasket
293250017
Unavailable
36
Filler Neck Nut, Fuel
211100012
$14.22
37
Black, Snap Cap
293000034
$9.39
38
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
39
Check Valve This part replaces 275500087.
275501246
$10.99
40
Male Connector
414580700
$4.12
41
Grommet
709200285
$9.69
42
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
43
Avdel Rivet 3/16"
293150037
$0.56
44
Tie Wrap 142 mm
293750002
$1.25
45
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
46
Sealant LOCTITE 222MS - Call your local BRP dealership
413703400
Unavailable
47
T-Fitting | Europe
293710024
$14.75
48
Tie-Rap 180 mm
414115200
$0.11
49
Filler Neck Hose
204000002
Unavailable
50
Choke Cable (Incl. It. 8,51,52,53)
270000279
Unavailable
51
Choke Plate
291000457
Unavailable
52
Hex. Nut M6
232160600
$1.15
53
Stainless Flat Washer M6
234061600
$0.33
54
Allen Screw M4 x 6
210100014
Unavailable
55
Carburator Linkage Rod
270500256
Unavailable
56
Synthetic Grease, 400 G
293550010
Unavailable
57
THROTTLE CABLE - Call your local BRP dealership
277000502
Unavailable
58
Caillau Clic Clamp
293650060
Unavailable
59
Hose 6 mm
204000068
Unavailable
60
Clic Clamp
293650059
Unavailable
61
Clic Clamp
293650057
Unavailable
62
Fuel Filter Support
291000527
Unavailable
63
Y-Fitting
293710059
$9.69
64
Fuel Filter
275500249
Unavailable
