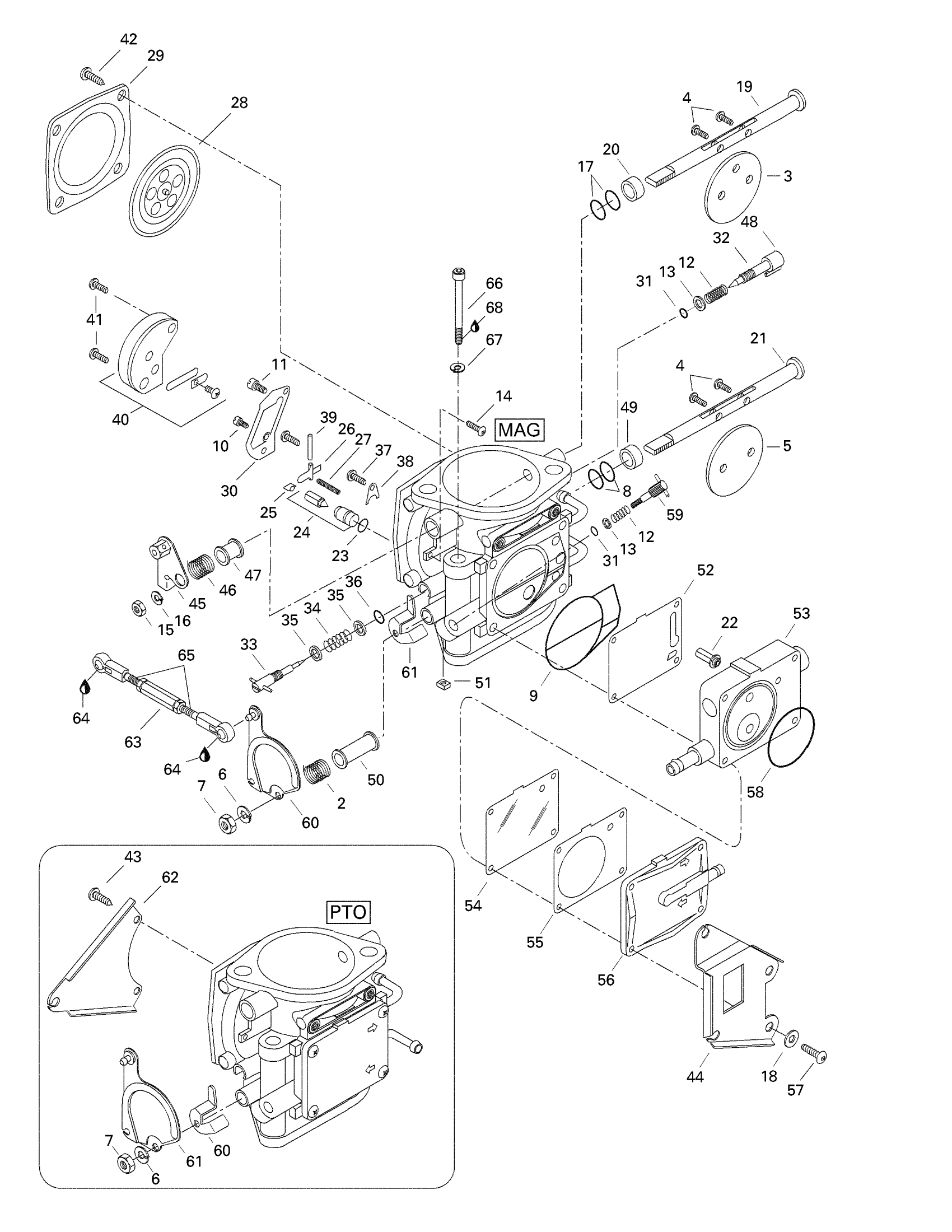

Sea-doo Explorer, 5824, 1997 02- Carburetor Diagram
#
1
Carbure tor Ass'y P.T.O Side | Includes 1 - 62. EXPLORER 5824 PTO.
270500279
Unavailable
Carbure tor Ass'y MAG Side | EXPLORER 5824 MAG.
270500278
Unavailable
2
Spring | CHALLENGER 1800 5679 MAG.
270500097
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
SPRING WASHER - Call your local BRP dealership
270500011
Unavailable
5
Throttle Lever | EXPLORER 5824 PTO.
270500142
Unavailable
Throttle Lever | EXPLORER 5824 MAG.
270500211
Unavailable
6
SPRING WASHER - Call your local BRP dealership
270500011
Unavailable
7
Nut
270500012
Unavailable
8
Sealing Ring
270500222
Unavailable
9
O-Ring
270500104
Unavailable
10
Pilot Jet 67.5
270500165
Unavailable
11
Main Jet 130
270500163
Unavailable
12
SPRING - Call your local BRP dealership
270500091
Unavailable
13
Washer
270500136
Unavailable
14
Screw
270500228
Unavailable
15
NUT - Call your local BRP dealership
270500229
Unavailable
16
Spring Washer
270500230
Unavailable
17
SEALING RING - Call your local BRP dealership
270500234
Unavailable
18
Carburetor Ass'y (BN38-34-92) | EXPLORER 5824 MAG.
270500203
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
RING - Call your local BRP dealership
270500239
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
FUEL FILTER - Call your local BRP dealership
270500115
Unavailable
23
O-RING - Call your local BRP dealership
270500127
Unavailable
24
Needle Valve 1.2
270500263
Unavailable
25
CLIP - Call your local BRP dealership
270500129
Unavailable
26
NEEDLE VALVE LEVER - Call your local BRP dealership
270500128
Unavailable
27
SPRING - Call your local BRP dealership
270500267
Unavailable
28
DIAPHRAGM ASS'Y - Call your local BRP dealership
270500132
Unavailable
29
COVER - Call your local BRP dealership
270500133
Unavailable
30
GASKET - Call your local BRP dealership
270500131
Unavailable
31
O-RING - Call your local BRP dealership
270500144
Unavailable
32
Adjuster Screw
270500113
Unavailable
33
IDLE ADJUSTING SCREW - Call your local BRP dealership
270500020
Unavailable
34
SPRING - Call your local BRP dealership
270500019
Unavailable
35
Washer
270500018
Unavailable
36
O-RING - Call your local BRP dealership
270500119
Unavailable
37
Screw and Spring Washer
270500135
Unavailable
38
PLATE - Call your local BRP dealership
270500125
Unavailable
39
Pin
270500038
Unavailable
40
VALVE ASS'Y - Call your local BRP dealership
270500124
Unavailable
41
SCREW - Call your local BRP dealership
270500123
Unavailable
42
Screw
270500243
Unavailable
43
Screw | EXPLORER 5824 PTO.
270500190
Unavailable
44
Bracket | CHALLENGER 1800 5679 MAG.
270500270
Unavailable
45
Choke lever
270500271
Unavailable
46
SPRING - Call your local BRP dealership
270500248
Unavailable
47
Ring
270500110
Unavailable
48
Cap
270500154
Unavailable
49
Ring | CHALLENGER 1800 5679 MAG.
270500221
Unavailable
50
RING - Call your local BRP dealership
270500192
Unavailable
51
Nut
270500249
Unavailable
52
GASKET - Call your local BRP dealership
270500103
Unavailable
53
Body Pump Ass'y | CHALLENGER MAG.
270500269
Unavailable
54
DIAPHRAGM - Call your local BRP dealership
270500106
Unavailable
55
Gasket
270500146
Unavailable
56
PUMP COVER - Call your local BRP dealership
270500108
Unavailable
Pump Cover | CHALLENGER 1800 5675 PTO.
270500138
Unavailable
57
Screw
270500303
Unavailable
Screw | CHALLENGER PTO.
270500109
Unavailable
58
O-RING - Call your local BRP dealership
270500102
Unavailable
59
Adjuster Screw
270500288
Unavailable
60
Throttle Lever Ass'y | CHALLENGER 1800 5679 MAG.
270500300
Unavailable
Throttle Lever | EXPLORER 5824 PTO.
270500272
Unavailable
61
Throttle Lever Ass'y | CHALLENGER 1800 5679 MAG.
270500300
Unavailable
Throttle Lever Ass'y | CHALLENGER 1800 5675 PTO.
270500301
Unavailable
62
Bracket | EXPLORER 5824 PTO.
270500286
Unavailable
63
Carburator Linkage Rod
270500256
Unavailable
64
Synthetic Grease, 400 g
270550010
Unavailable
65
Sealant LOCTITE 222MS - Call your local BRP dealership
413703400
Unavailable
66
Screw Allen M8 x 75
215987560
Unavailable
67
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
68
Loctite 243, 10 ml
293800060
$21.49
