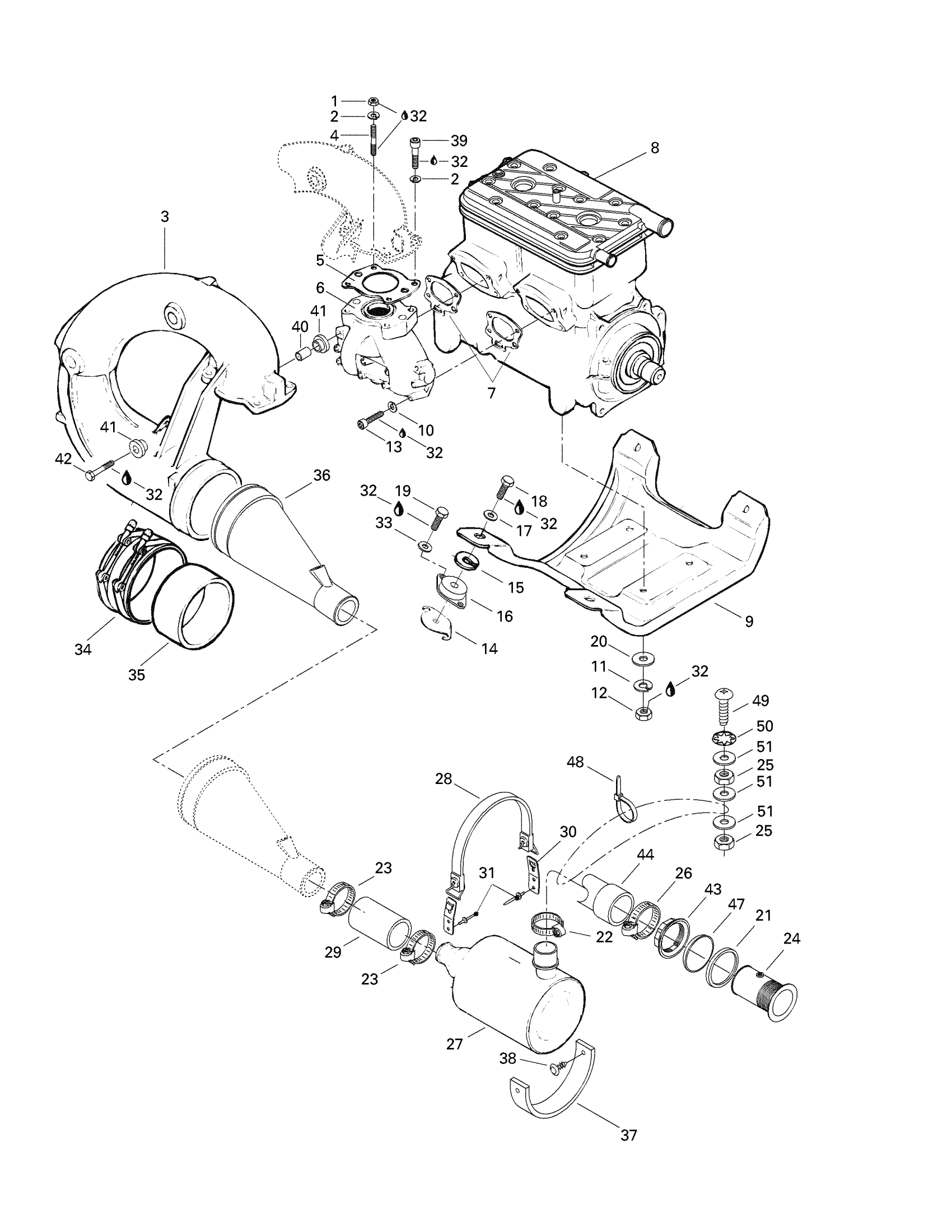

Sea-doo Explorer, 5824, 1997 01- Engine Support And Muffler Diagram
#
1
Hex. Nut M8
232081600
$1.47
2
Flat Washer M8.5 x 18
293050001
$3.07
3
Tuned Pipe Ass'y
274000487
Unavailable
4
Stud M8 x 26
420941014
$14.22
5
Exhaust Gasket This part replaces 290950253.
420950253
$14.83
6
Exhaust Manifold (White)
290979141
Unavailable
7
Gasket This part replaces 293250070.
293250134
$13.76
8
Rotax Eng. 717, Double Carb. (White)
270000135
Unavailable
9
Engine Support
270000312
Unavailable
10
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
11
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
12
Flat Washer M6, Stainless
234062600
$0.77
13
Hex. Flange Screw M8 x 68.5
290841998
Unavailable
14
Shim 0.4 mm
270000006
Unavailable
Shim 1.3 mm
270000007
Unavailable
Shim 3.3 mm
270000143
Unavailable
15
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
16
Rubber Mount
270000425
$71.99
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
19
Hex. Screw M8 X 30
207183060
$1.58
20
Flat Washer 10 mm, Stainless
234001600
$1.15
21
GASKET - Call your local BRP dealership
293250041
Unavailable
22
Tridon Clamp
293650023
$13.49
23
Tridon Clamp
293650036
$7.49
24
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
25
Hex. Elastic Stop Nut M6
232561600
$1.15
26
Tridon Clamp
293650064
$8.29
27
Muffler
274000491
Unavailable
28
Retainer Strap
293850097
$11.64
29
Exhaust Hose
274000449
Unavailable
30
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
31
Avdel Rivet 3/16"
293150037
$0.56
32
Loctite 243, 10 ml
293800060
$21.49
33
Stainless, Flat Washer 8 mm
234081600
$0.55
34
NORMA CLAMP - Call your local BRP dealership
293650068
Unavailable
35
Sealing Ring
274000074
Unavailable
36
Exhaust Cone Ass’Y
274000488
Unavailable
37
Rubber Pad
293830055
Unavailable
38
Black, Dart
293730006
$0.99
39
Hex. Screw M8 X 30
207183060
$1.58
40
Bushing
274000114
$8.85
41
Rubber Bushing
293830031
Unavailable
42
Hex. Screw M8 X 40
207084060
$2.22
43
Nut 72 mm
274000224
$16.34
44
Exhaust Hose Formed
274000273
Unavailable
45
Engine Gasket Set (Not Shown)
290886317
Unavailable
46
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886316
Unavailable
47
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
48
Tie-Rap
293750017
Unavailable
49
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership
208563060
Unavailable
50
External Serrated Lock Washer 6 mm
234461608
$1.15
51
Stainless Flat Washer M6
234061600
$0.33
