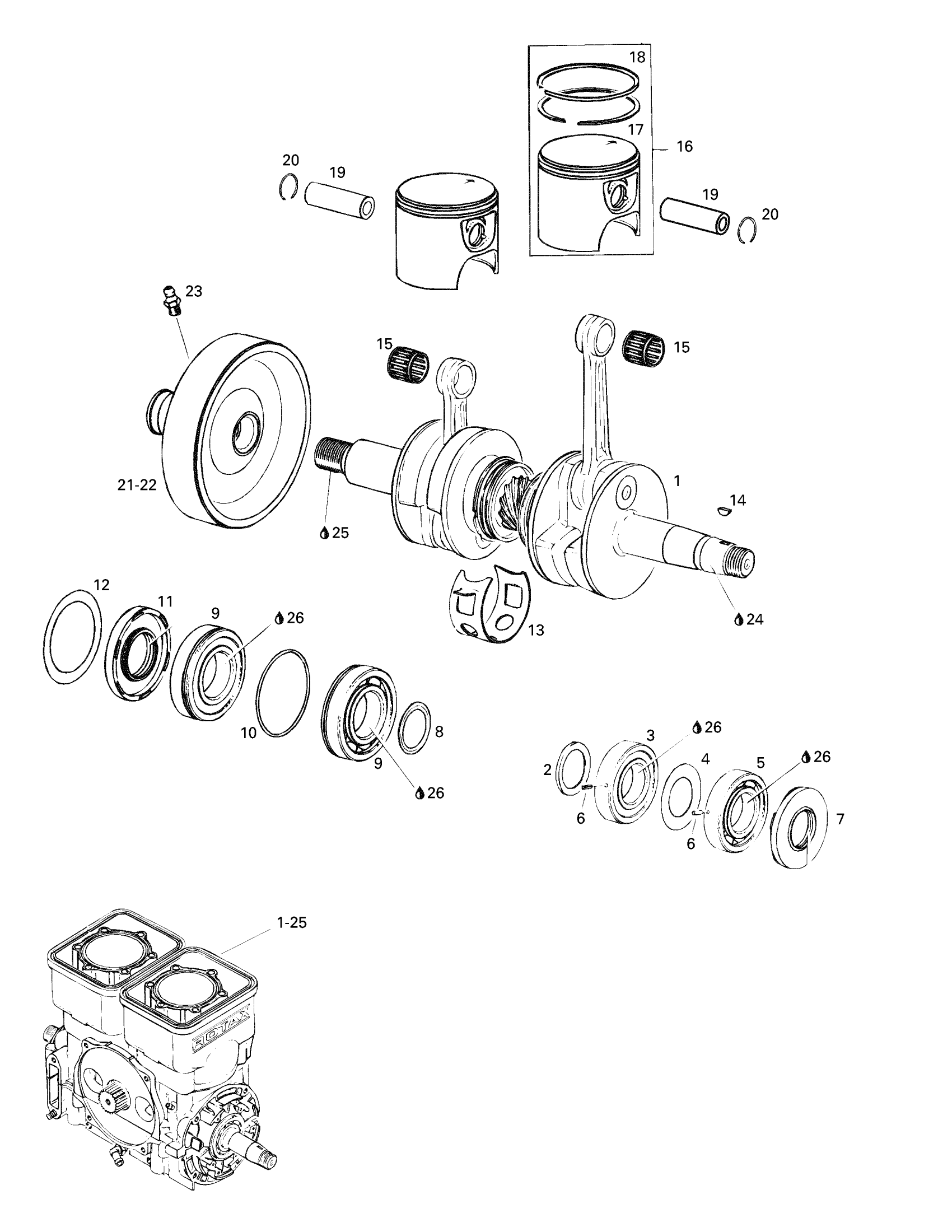

Sea-doo Explorer, 5824, 1997 01- Crankshaft And Pistons Diagram
#
Description
Price
1
Short Block Ass'y | Includes 1 - 20.
290881521
Unavailable
1
Crankshaft Ass'y | Includes 1 - 13.
290887862
Unavailable
2
RING-DISTANCE RING - Call your local BRP dealership This part replaces 290827447.
420827448
Unavailable
3
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
4
Retaining Disk
290827050
Unavailable
5
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
6
Rolled Pin
290832470
Unavailable
7
Oil Seal This part replaces 290830749.
420830749
$18.54
8
Distance Ring
290827760
Unavailable
9
Ball Bearing 6207 | Includes 10 - 11.
290832574
Unavailable
10
Retaining Disk
420927710
$7.41
11
Oil Seal This part replaces 290831952.
420831952
$18.01
12
RETAINING SHIM - Call your local BRP dealership
290926060
Unavailable
13
Retaining Ring
290926070
Unavailable
14
Woodruff Key
420246055
$2.43
15
NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.
420832421
Unavailable
16
Pis ton with 2 Rings, 82.00 mm | Includes 16 - 18.
290887180
Unavailable
Pis ton with 2 Rings, 82.25 mm
290887181
Unavailable
Pis ton with 2 Rings, 82.50 mm
290887182
Unavailable
17
Rectangular Ring 82.00 mm
290815080
Unavailable
Rectangular Ring 82.25 mm
290815081
Unavailable
Rectangular Ring 82.50 mm
290815082
Unavailable
18
Semi-Trapez Ring 82.00 mm
290815070
Unavailable
Semi-Trapez Ring 82.25 mm
290815071
Unavailable
Semi-Trapez Ring 82.50 mm
290815072
Unavailable
19
Piston Pin This part replaces 290916402.
420916404
$28.49
20
Circlip
290845100
Unavailable
21
Clutch-Flywheel | Includes 23 - 24.
290958011
Unavailable
23
GREASE FITTING - Call your local BRP dealership
290499113
Unavailable
24
Loctite 243, 10 ml
293800060
$21.49
25
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
26
Engine Gasket Set (Not Shown)
290886317
Unavailable
27
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886316
Unavailable
