Description

Price

1

Fitting

293710063

Unavailable

2

GASKET - Call your local BRP dealership

293250028

Unavailable

3

Was 276000001 Hose 12.5 mm

219704394

$51.99

4

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

5

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

6

Tridon Gear Clamp

293650172

$3.09

7

Elbow Fitting

293700016

Unavailable

8

T-FITTING - Call your local BRP dealership

293710052

$12.70

9

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

10

Elbow Fitting 90°

293710048

Unavailable

11

Elbow Fitting 90°

293710018

Unavailable

12

Elbow Fitting

293700016

Unavailable

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

15

Was 276000001 Hose 12.5 mm

219704394

$51.99

16

Hose 6 Mm 15000Mm Long

219704360

$132.49

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

Tie-Rap 180 mm

414115200

$0.11

19

Tridon Gear Clamp

293650172

$3.09

20

WASHER - Call your local BRP dealership

293050003

Unavailable

21

<> FITTING - Call your local BRP dealership

293710042

Unavailable

22

Male Connector

293710037

$10.49

23

Was 293800013 Loctite 56765

219704454

$65.99

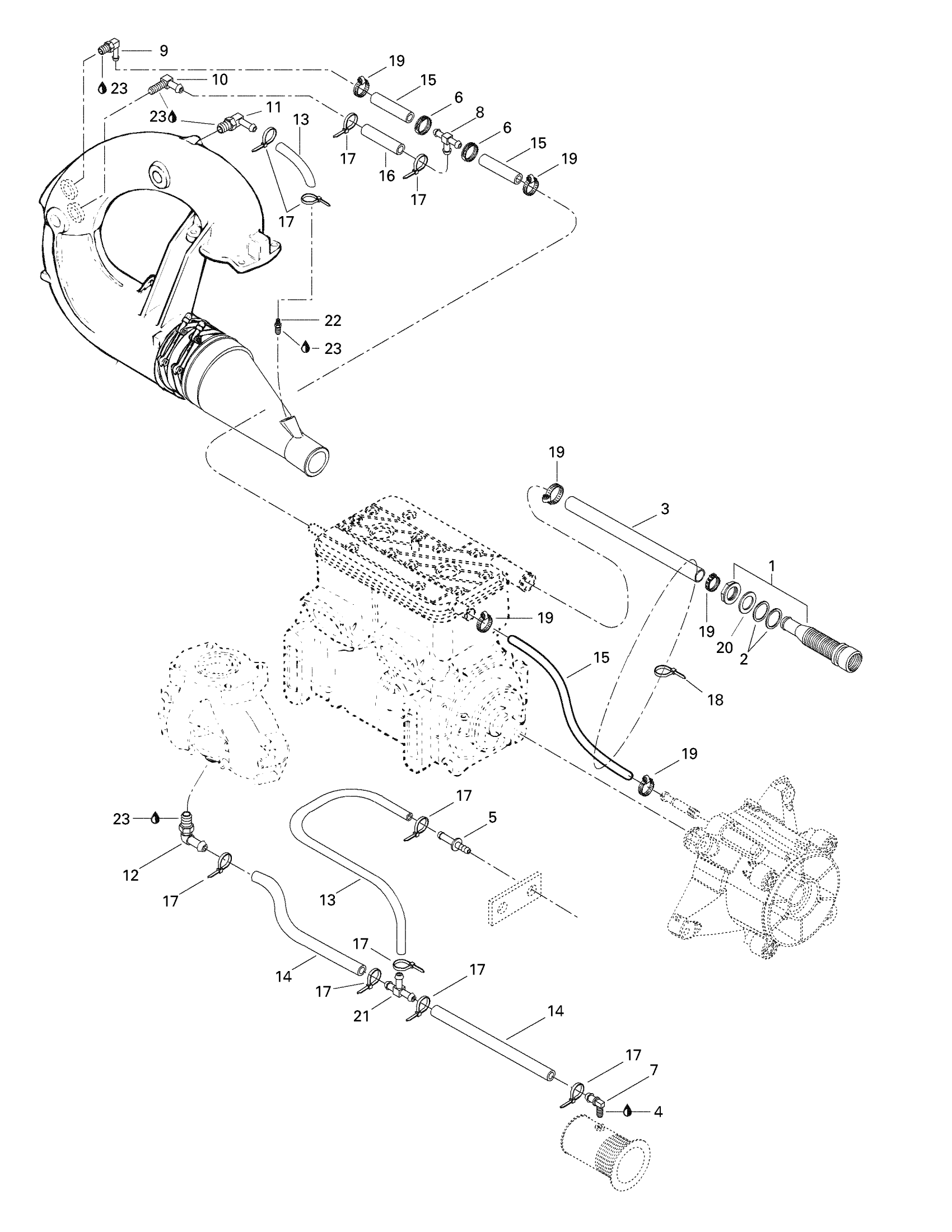

Sea-doo Explorer, 5824, 1997 01- Cooling System Diagram

Fitting

GASKET - Call your local BRP dealership

Was 276000001 Hose 12.5 mm

Was 293800018 Loctite 592, 50 ml | Package T

BLEED FITTING - Call your local BRP dealership

Tridon Gear Clamp

Elbow Fitting

T-FITTING - Call your local BRP dealership

Elbow Fitting 90° | Without Catalyst

Elbow Fitting 90°

Elbow Fitting 90°

Elbow Fitting

Was 415110000 Polyurethane Hose 5.2 mm

Polyurethane Hose, 8 Mm 3000Mm Long

Was 276000001 Hose 12.5 mm

Hose 6 Mm 15000Mm Long

Tie Wrap 94 mm | 4X4

Tie-Rap 180 mm

Tridon Gear Clamp

WASHER - Call your local BRP dealership

<> FITTING - Call your local BRP dealership

Male Connector

Was 293800013 Loctite 56765
