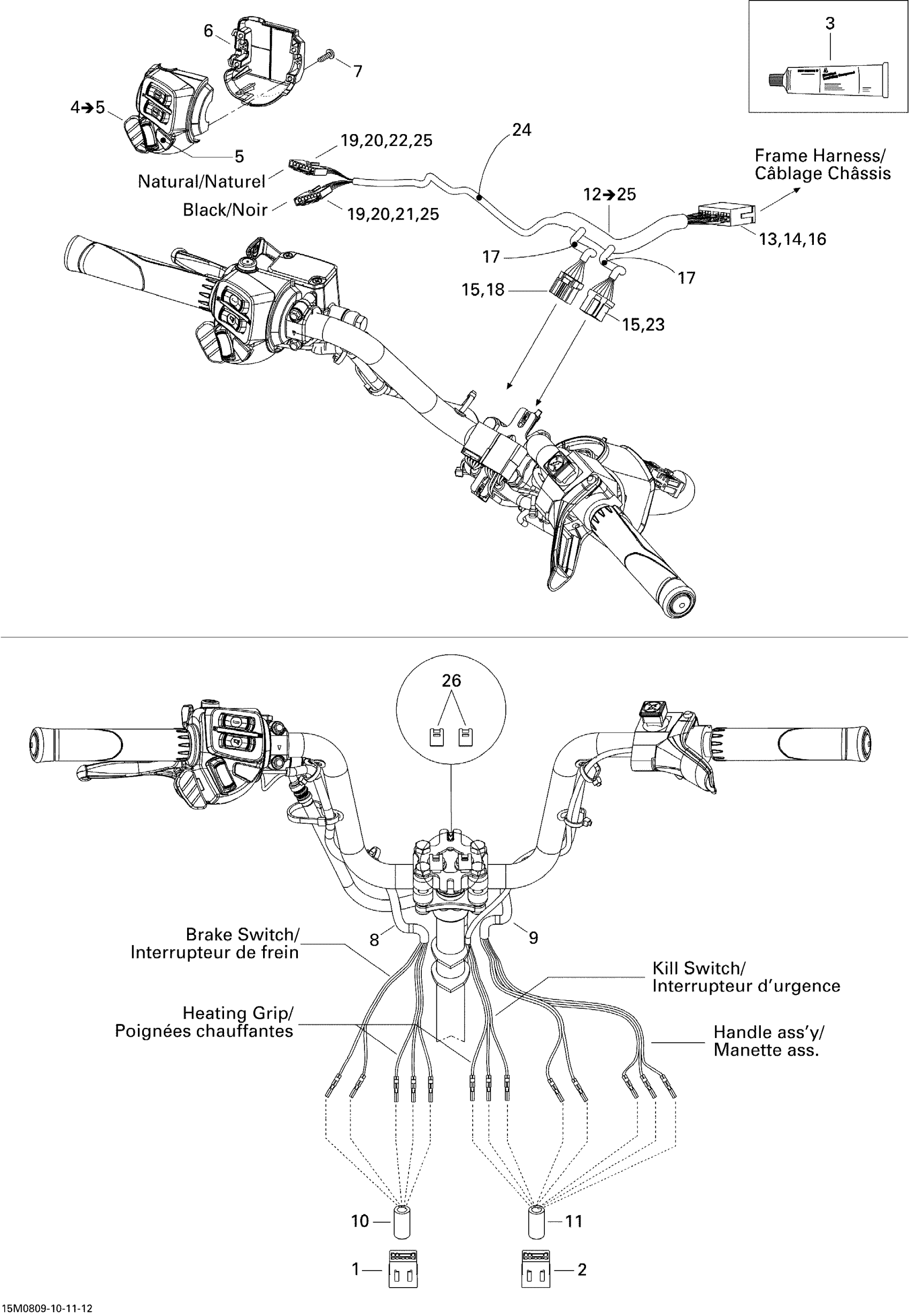

Ski-Doo Expedition Sport V-800, 2008 Steering Wiring Harness Diagram

#

Description
Price

1

Male Terminal Housing, 6 Circuits

515175662

$8.57

2

Male Terminal Housing, 8 Circuits

515175817

$8.57

3

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

4

Switch Housing

515177028

$133.05

5

CAP - Call your local BRP dealership

515175779

Unavailable

6

Switch Housing Plate

515175926

$17.66

7

Torx Screw #8-18

250000263

$1.02

8

Tubing 25 MM 1000MM Long

219704402

$12.69

9

Tubing 25 MM 1000MM Long

219704402

$12.69

10

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

11

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

12

STEERING WIRING HARNESS - Call your local BRP dealership | Includes 16 to 29

515176309

Unavailable

13

Male Terminal

515175232

$1.49

14

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

15

Female Terminal

515175231

$4.12

16

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

17

Tubing 10 MM 1000MM Long

219704407

$2.20

18

Female Terminal Housing, 6 Circuits

515175543

$8.57

19

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

20

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

21

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

22

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

23

Female Terminal Housing, 8 Circuits

515175819

$7.46

24

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

25

Female Terminal

515175941

$2.48

26

HOUSING SUPPORT - Call your local BRP dealership

515175944

Unavailable
