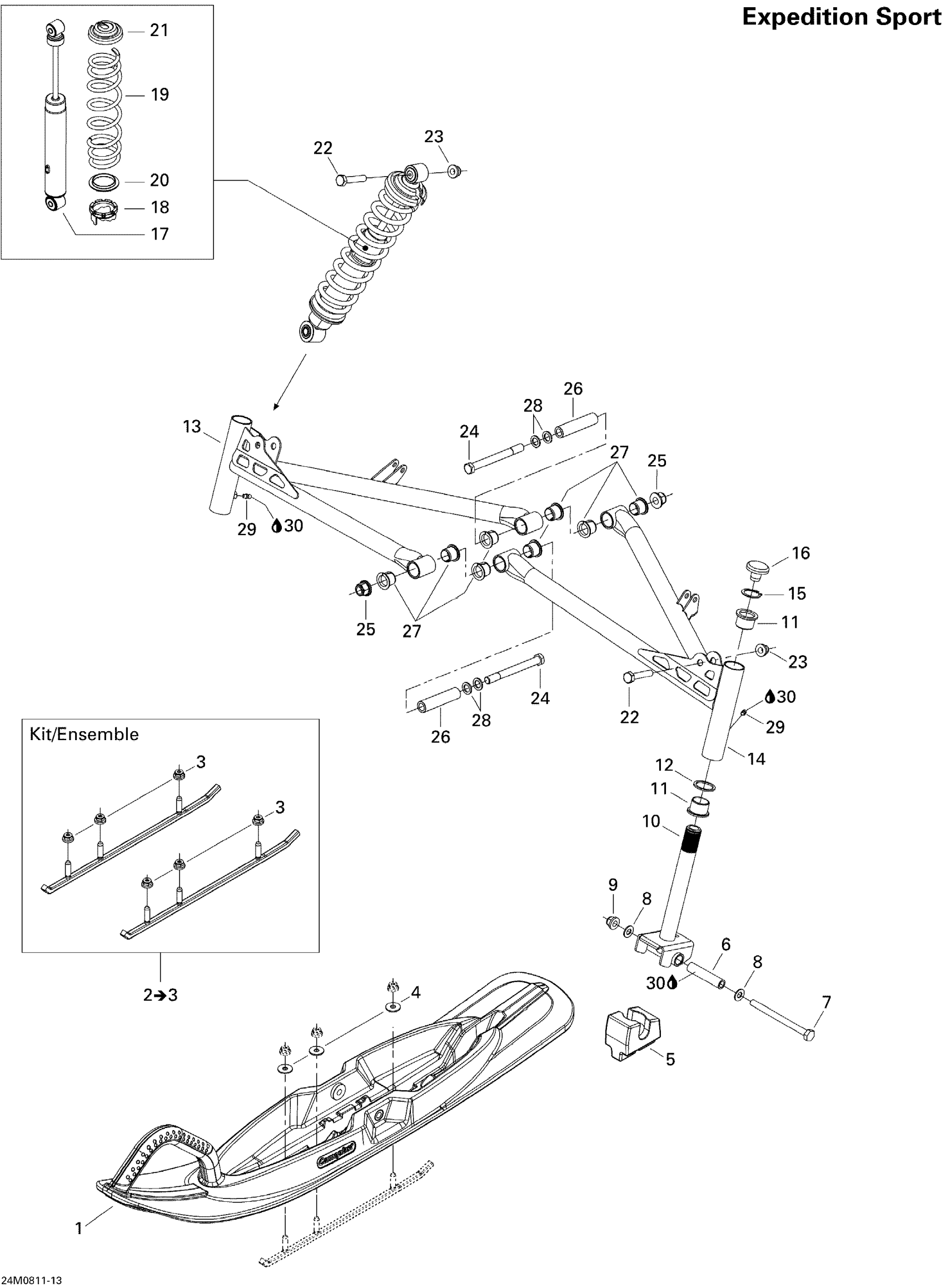

Ski-Doo Expedition Sport V-800, 2008 Front Suspension And Ski Diagram

#

Description
Price

1

Large ''Blow Mold'' Ski With Handle | STD

505072020

$146.24

2

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

$91.01

3

Hex. Flange Elastic Nut M8

233281414

$1.31

4

Flat Washer 8 mm

234082410

$1.27

5

SKI STOPPER - Call your local BRP dealership

505070978

Unavailable

6

Spacer

506133300

$19.37

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

8

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

9

Elastic Stop Nut M10

232500416

$1.79

10

SKI LEG - Call your local BRP dealership

505072001

Unavailable

11

Cushion

505070003

$7.18

12

WASHER - Call your local BRP dealership

505070004

Unavailable

13

RH LOWER ARM - Call your local BRP dealership

505071739

Unavailable

14

LH LOWER ARM - Call your local BRP dealership

505071740

Unavailable

15

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

16

Cap

572091300

$8.70

17

FRONT SHOCK - Call your local BRP dealership | Except Europe

505072258

Unavailable

18

Adjustment Cam

505073625

$11.82

19

FULL MOON SPRING - Call your local BRP dealership

505071849

Unavailable

20

Spring Guide

503187500

$8.46

21

Spring Stopper

706200881

$11.82

22

Hex. Screw M10 X 55

207005544

$2.12

23

Hex. Flange Elastic Nut M10

233201414

$1.45

24

HEX. SCREW M12 X 120 - Call your local BRP dealership

230022044

Unavailable

25

Hex. Flange Elastic Nut M12

233221414

$5.85

26

BUSHING - Call your local BRP dealership

505071366

Unavailable

27

BUSHING - Call your local BRP dealership

505072094

Unavailable

28

Washer

503189276

$3.10

29

Grease Fitting

408200700

$3.21

30

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
