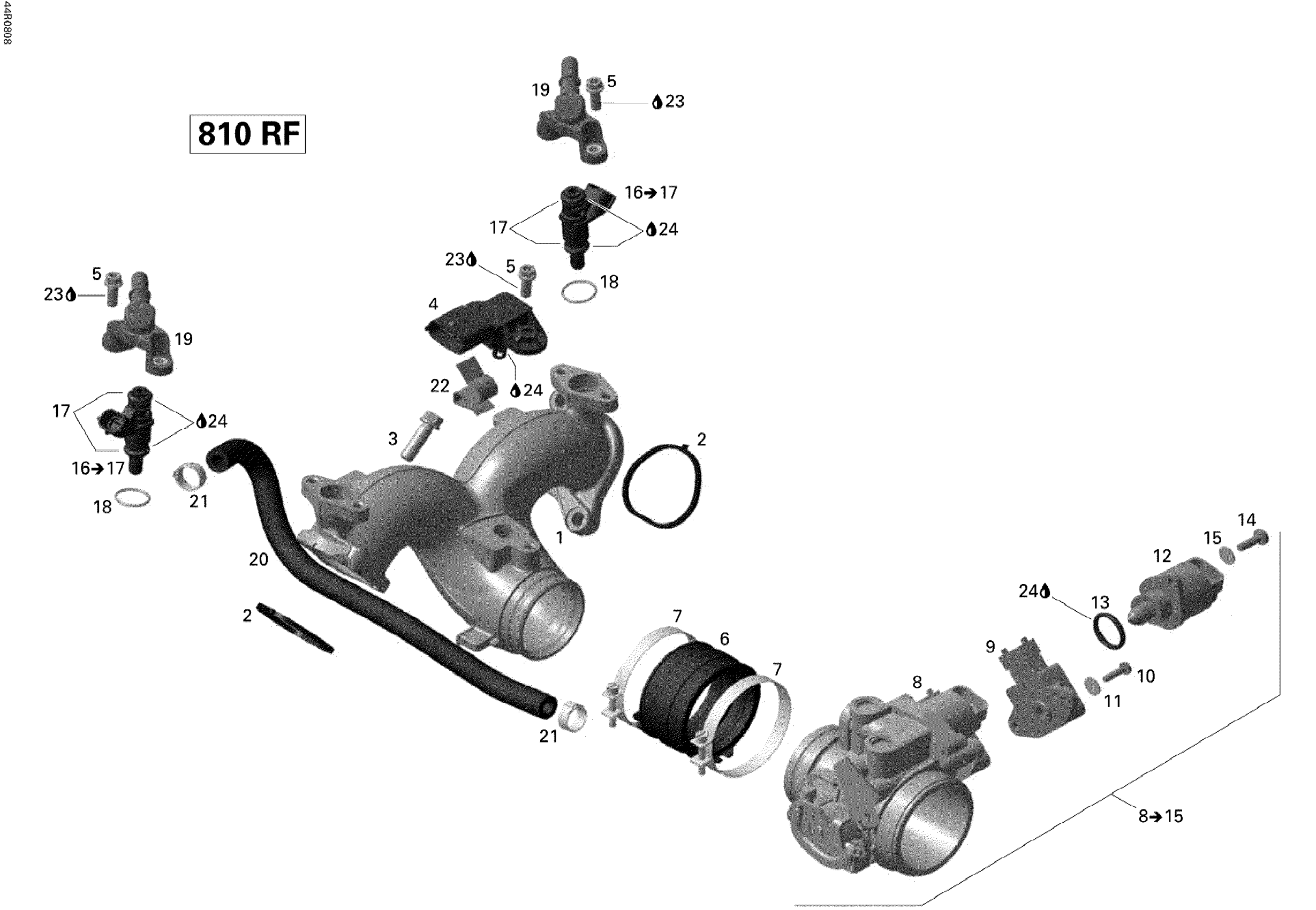

Ski-Doo Expedition Sport V-800, 2008 Intake Manifold And Throttle Body Diagram

#

Description
Price

1

AIR INTAKE MANIFOLD - Call your local BRP dealership

420667342

Unavailable

2

Gasket

420630642

$5.22

3

Torx Flange Screw M8 X 25

420440372

$4.00

4

Pressure And Temperature Sensor

707000995

$70.82

5

Torx Flange Screw M6 X 16

420641048

$2.46

6

Intake Adaptor

420267480

$15.19

7

Clamp

420251480

$13.58

8

THROTTLE BODY ASS'Y. - Call your local BRP dealership | Includes 8 to 15

420296878

Unavailable

9

Position Sensor

420866120

$77.97

10

Phillips Screw M4 X 16

208641660

$0.74

11

Flat Washer 4 mm, Stainless

234042600

$0.92

12

Idle Air Control Valve

420665941

$147.52

13

O-Ring

420631780

$3.61

14

Binding Head Screw M5 X 16

420440911

$11.48

15

Snap Ring

420845710

$3.38

16

Injection Valve

420874402

$180.49

17

O-Ring

420631220

$11.48

18

O-Ring

420631296

$0.74

19

Fuel Rail

420874901

$23.05

20

Formed Hose

420460271

Unavailable

21

Oetiker Clamp

293650125

$2.69

22

WIRE CLAMP - Call your local BRP dealership

420651030

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

Grease, Super Lube

293550030

$24.67
