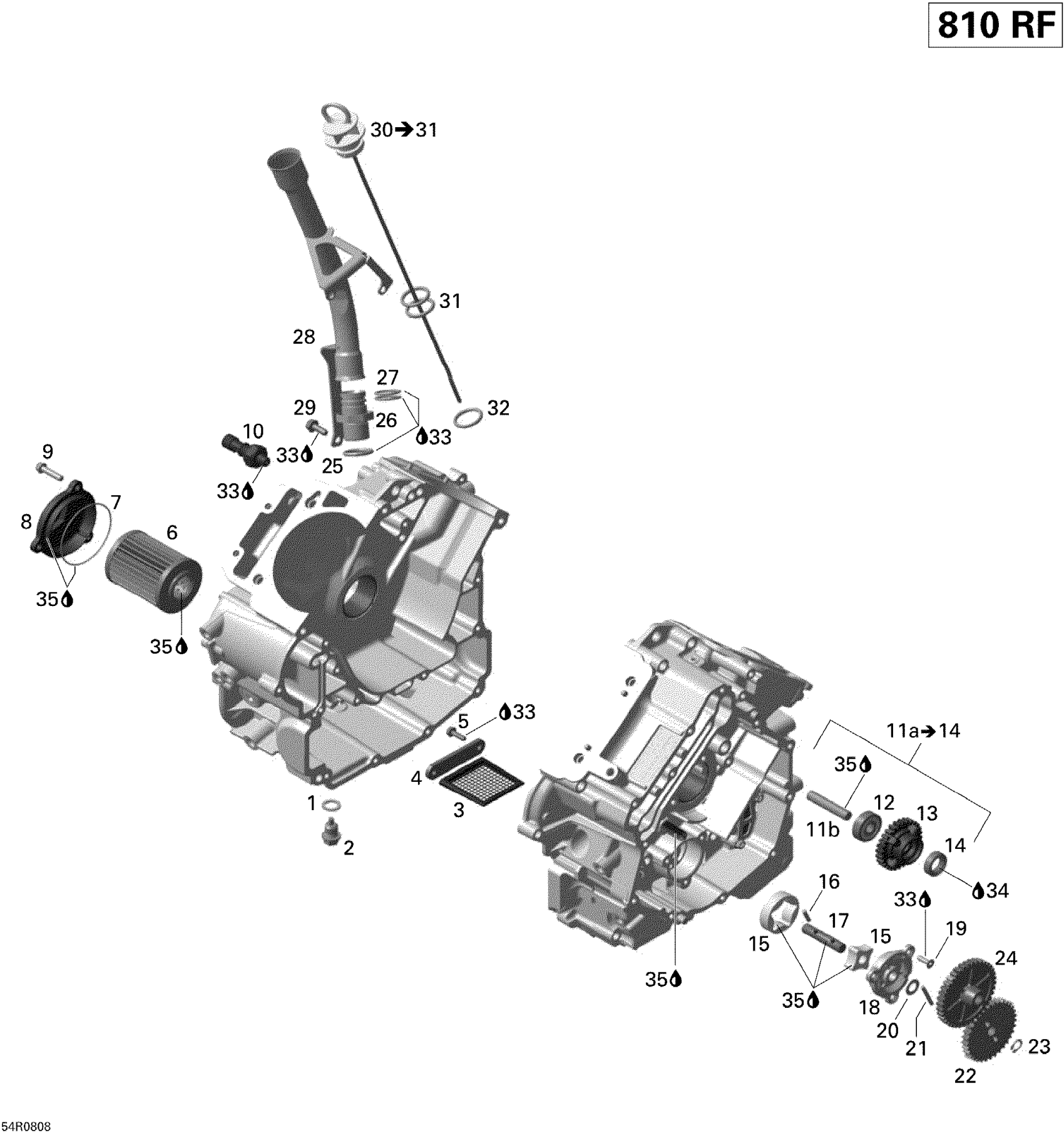

Ski-Doo Expedition Sport V-800, 2008 01- Engine Lubrication Diagram

#

Description
Price

1

Copper Washer

420250640

$0.98

2

Magnetic Drain Plug M12

420241787

$17.99

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420210661

$14.28

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$13.77

7

O-Ring

420230923

$3.17

8

Oil Filter cover

420612135

$11.63

9

Torx Flange Screw M6 X 25

420641238

$3.27

10

Oil Pressure Switch

420856537

$45.99

11a

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

11b

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420430555

$19.99

15

Oil Pump Rotor

420256348

$77.99

16

Needle Pin

420232731

$4.01

17

Oil Pump Shaft

420237059

$29.49

18

Oil Pump Cover

420210646

$48.49

19

Torx Head Screw M5 X 16

420640823

$1.90

20

Thrust Washer

420827590

$4.01

21

Needle Pin

420232431

$4.39

22

Oil Pump Gear, 33 Teeth

420434320

$13.77

23

Snap Ring

420245330

$1.79

24

Idle Gear, 38 Teeth

420434300

$13.77

25

O-Ring

420631640

$2.11

26

Adaptor

420856610

$18.49

27

O-Ring

420430373

$3.17

28

OIL TUBE - Call your local BRP dealership

420856920

Unavailable

29

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

30

OIL LEVER GAUGE ASS'Y - Call your local BRP dealership | Includes 30 to 31

420956936

Unavailable

31

O-Ring

420631640

$2.11

32

O-Ring

420631612

$4.33

33

Loctite 243, 10 ml

293800060

$21.49

34

Grease, Super Lube

293550030

$28.99

35

Not Available As Spare Part - Friction Washer

Unavailable
