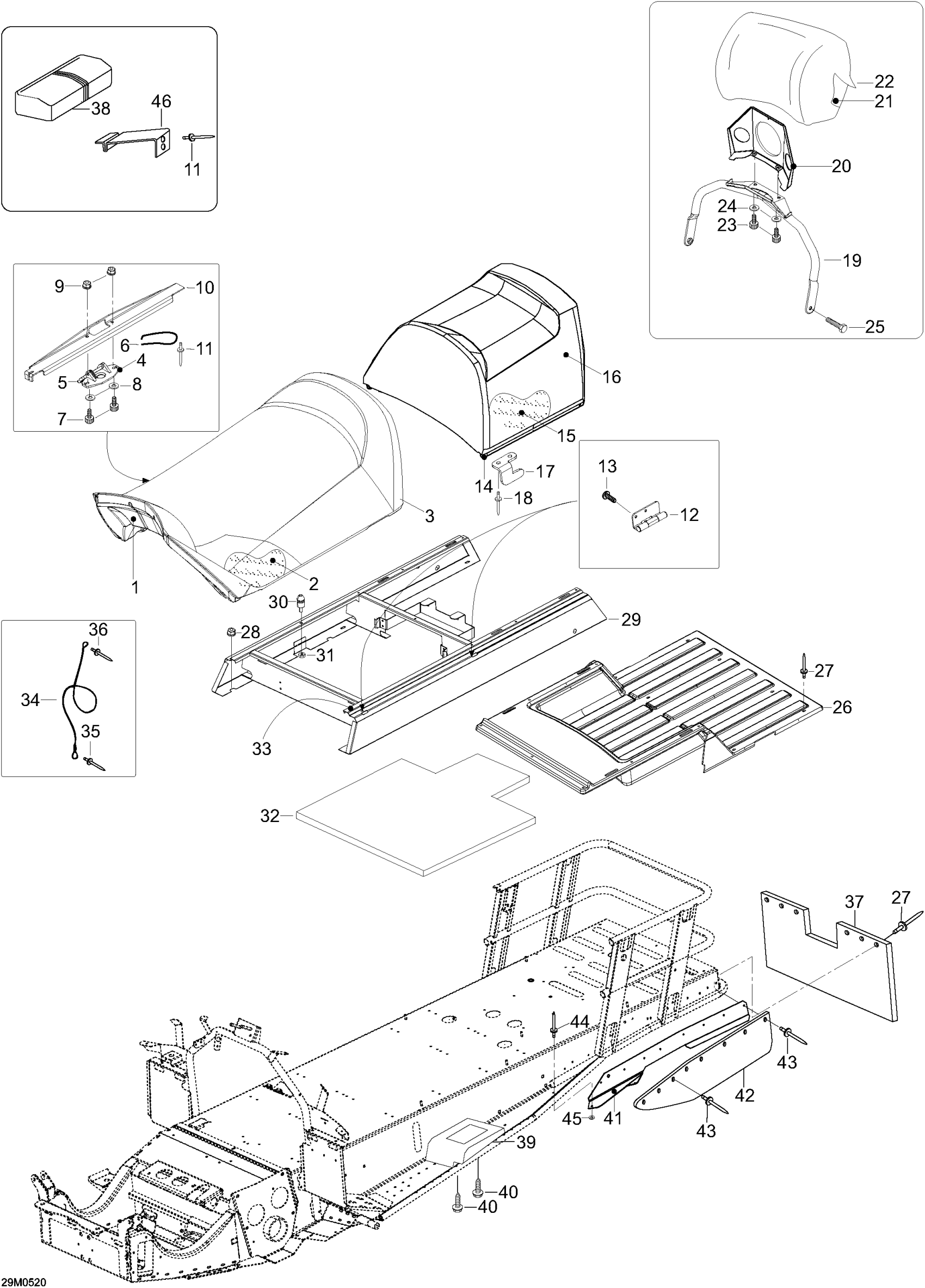

Ski-Doo Expedition 600 H.O. SDI, 2005 Seat Diagram

#

Description
Price

1

SEAT BASE, FRONT - Call your local BRP dealership

605251388

Unavailable

2

Foam. Front

605251389

Unavailable

3

Cover, Front

605251422

Unavailable

4

Latch Ass'y

269700109

$23.10

5

Latch Ass'y

269700109

$23.10

6

Latch Spring

269700017

$8.34

7

SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership

M40276

Unavailable

8

Flat Washer 6 mm

234061410

$1.19

9

Elastic Stop Nut M6

232561414

$1.78

10

SUPPORT PLATE - Call your local BRP dealership

605352483

Unavailable

11

Rivet

36108

$1.79

12

Hinge

605351798

$38.78

13

Screw 4,2 X 16

M40890

Unavailable

14

SEAT BASE, REAR - Call your local BRP dealership

605251390

Unavailable

15

Foam, Rear

605251391

Unavailable

16

Cover

605251425

Unavailable

17

LH HOOK - Call your local BRP dealership

605351808

Unavailable

17

RH HOOK - Call your local BRP dealership

605352007

Unavailable

18

Rivet This part replaces M36087.

36087

$0.99

19

Backrest

605251730

Unavailable

20

Support Plate

605252096

Unavailable

21

FOAM - Call your local BRP dealership

605252104

Unavailable

22

COVER - Call your local BRP dealership

605251431

Unavailable

23

Hex. Screw M8 X 16

M40066

Unavailable

24

Lock Washer 8 mm

234181401

$0.87

25

Hex. Screw

M40337

Unavailable

26

COVER - Call your local BRP dealership

605151397

Unavailable

27

Black, Rivet

M36036

$1.60

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

29

Seat Base

605252651

Unavailable

30

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

31

Elastic Stop Nut M6

232561414

$1.78

32

FOAM - Call your local BRP dealership

605352460

Unavailable

33

Sealing Strip

M28413

Unavailable

34

Seat Retainer Cable

293750070

$9.93

35

Black Rivet

36037

$1.43

36

Rivet

M36489

Unavailable

37

Snow guard This part replaces M538629.

538629

$98.48

38

TOOL SET - Call your local BRP dealership

605352219

Unavailable

39

RH Rear Footrest | Europe

414975300

Unavailable

39

LH Rear Footrest | Europe

414975400

Unavailable

40

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

41

RH SIDE SNOW GUARD - Call your local BRP dealership

605251249

Unavailable

41

LH SIDE SNOW GUARD - Call your local BRP dealership

605251248

Unavailable

42

Side Snowguard This part replaces M5142828.

5142828

Unavailable

43

RIVET - Call your local BRP dealership

M36097

Unavailable

44

Rivet

36005

$1.96

45

Washer 5,3 mm

20008

$0.70

46

SPRING PLATE - Call your local BRP dealership

M5346728

Unavailable
