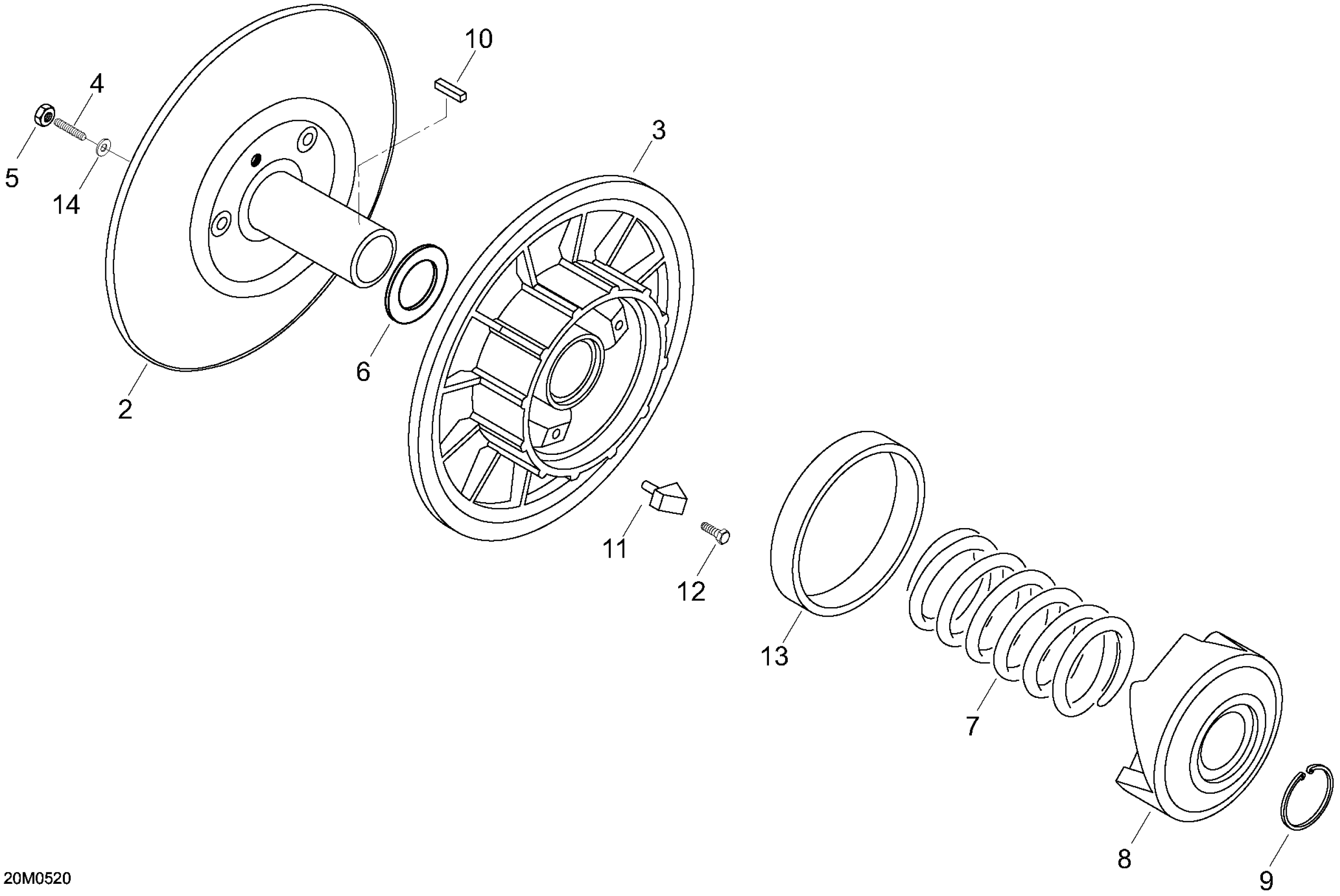

Ski-Doo Expedition 600 H.O. SDI, 2005 05- Driven Pulley Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FIXED FLANGE - Call your local BRP dealership

M140065

Unavailable

3

Sliding Flange

M140066

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Hex. Nut M6

232061414

$0.53

6

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

7

Release Spring, Black

M140069

Unavailable

8

CAM 35/30 DEGR. - Call your local BRP dealership

M140070

Unavailable

9

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

10

KEY - Call your local BRP dealership

417119400

Unavailable

11

Cam Slide Shoe This part replaces M140068.

140068

$12.64

12

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

13

Bushing

M140053

Unavailable

14

WASHER - Call your local BRP dealership

420245370

Unavailable
