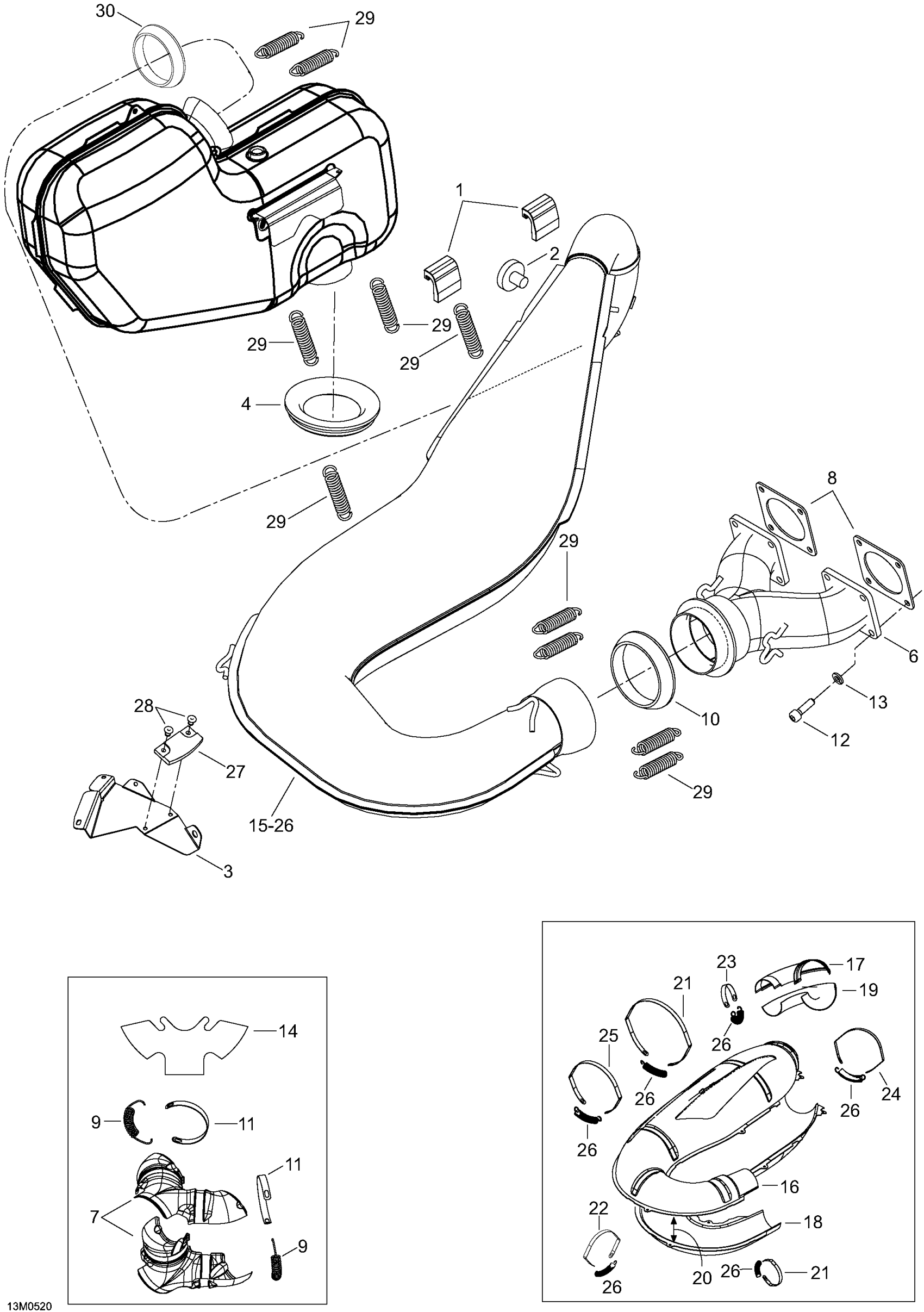

Ski-Doo Expedition 600 H.O. SDI, 2005 01- Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

Unavailable

2

Rubber Bumper

514053654

$50.99

3

SUPPORT - Call your local BRP dealership

605351705

Unavailable

4

Exhaust Grommet

514053064

Unavailable

5

Muffler Ass'y

605351442

Unavailable

6

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

7

Enveloppe, Exhaust Manifold

514053593

Unavailable

8

Gasket

420850552

$8.85

9

Spring

514053643

$6.35

10

Exhaust Gasket

514053487

$26.49

11

RETAINING STRAP - Call your local BRP dealership

514053603

Unavailable

12

Socket Head Screw M6 X 20

M40052

Unavailable

13

Lock Washer M6, Black

234161471

$0.53

14

INSULATING WOOL - Call your local BRP dealership

514053588

Unavailable

15

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 19 to 31

514054003

Unavailable

16

UPPER FRONT HALF ENVELOPPE - Call your local BRP dealership

514053181

Unavailable

17

UPPER REAR HALF ENVELOPPE - Call your local BRP dealership

514054008

Unavailable

18

LOWER ENVELOPE - Call your local BRP dealership

514053367

Unavailable

19

LOWER REAR HALF ENVELOPPE - Call your local BRP dealership

514054009

Unavailable

20

INSULATIN WOOL - Call your local BRP dealership

514054010

Unavailable

21

Retaining Strap

514053498

$11.47

22

RETAINING STRAP - Call your local BRP dealership

514053540

Unavailable

22

Retaining Strap

514053501

$9.27

23

Retaining Strap

514053492

$13.10

24

RETAINING STRAP - Call your local BRP dealership

514053500

Unavailable

25

RETAINING STRAP - Call your local BRP dealership

514053512

Unavailable

26

Spring

514053643

$6.35

27

BUMPER - Call your local BRP dealership

514053352

Unavailable

28

Black Rivet

36037

$1.48

29

Spring

415107100

$6.35

30

Exhaust Gasket

514053677

$24.99
