1990 Yamaha Exciter (EX570P) Windshield Diagram

← All diagrams

Find the part on the Windshield diagram for your 1990 Yamaha Exciter (EX570P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

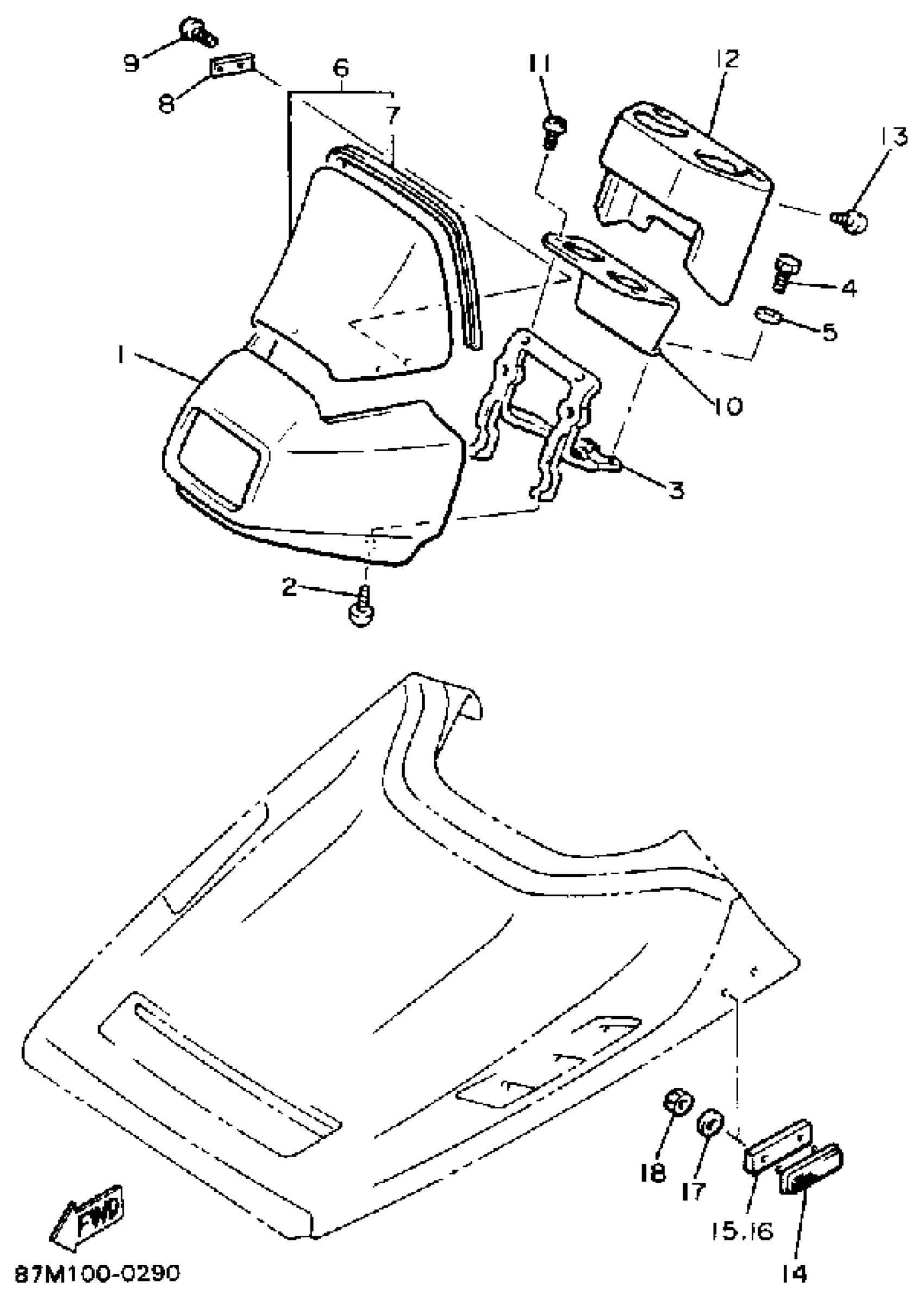

1990 Yamaha Exciter (EX570P) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAIRING 1

86F-77231-00-00

1
Out of stock

2

SCREW, BINDING

98907-06010-00

1

$1.49

In stock

3

STAY, FAIRING

82M-77241-00-00

1
Out of stock

4

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

5

WASHER, SPRING

92907-06100-00

1
Out of stock

6

WINDSHIELD

8BH-77210-00-XX

1
Out of stock

7

TRIM,UPPER

87K-77213-00-00

1
Out of stock

8

WASHER 1

82M-77218-00-00

1
Out of stock

9

SCREW, PAN HEAD

98502-05006-00

1
Out of stock

10

BRACKET, METER

82M-83519-01-00

1
Out of stock

11

SCREW, BINDING

98907-06010-00

1

$1.49

In stock

12

COVER, HEADLIGHT

82M-77251-00-00

1
Out of stock

13

SCREW, BINDING

98907-05016-00

1

$6.18

In stock

14

REFLECTOR ASSEMBLY

81E-85110-00-00

1
Out of stock

15

BASE, REFLECTOR

82M-85115-00-00

1
Out of stock

16

BASE, REFLECTOR

82M-85115-50-00

1
Out of stock

17

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

18

NUT, NYLON

95707-05300-00

—

$2.74

In stock
