1990 Yamaha Exciter (EX570P) Frame Diagram

← All diagrams

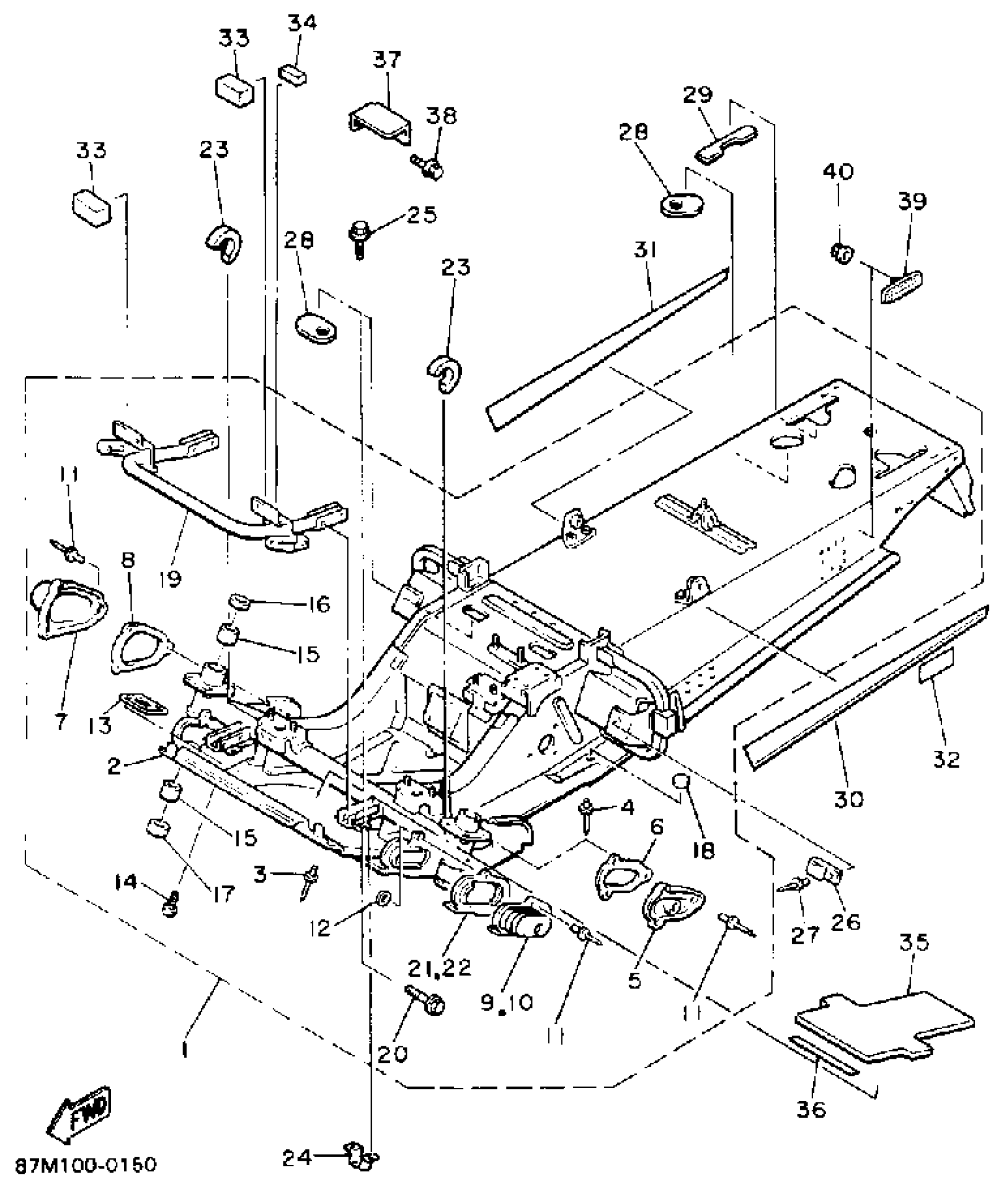

Find the part on the Frame diagram for your 1990 Yamaha Exciter (EX570P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Exciter (EX570P) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

99999-02250-00

1
Out of stock

2

. PANEL, SUB FRAME 1

86M-21912-00-00

1
Out of stock

3

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

6

SPACER

8M6-21998-00-00

1

$3.05

In stock

7

. COVER, STEERING

82M-23818-00-00

1
Out of stock

8

. WASHER 2

82M-77526-00-00

1
Out of stock

9

. COVER 1 (LH)

82M-2198F-00-00

1
Out of stock

10

. COVER 2 (RH)

82M-2198G-00-00

1
Out of stock

11

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

12

WASHER, PLATE

90201-04027-00

1
Out of stock

13

PANEL, SUB FRAME 6

8M6-21917-00-00

1
Out of stock

14

SCREW, WITH WASHER

90159-05137-00

1
Out of stock

15

1

$9.68

In stock

16

OIL SEAL (8M6)

93102-36232-00

—

$9.51

In stock

17

OIL SEAL (8M6)

93103-36117-00

—

$20.31

In stock

18

SPACER

80F-21998-00-00

—

$11.69

In stock

19

. BUMPER, FRONT 2

84M-77512-01-00

1
Out of stock

20

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

21

. PLATE, STRING BRACKET 1 (L, H)

82M-2195E-00-00

1
Out of stock

22

. PLATE, STRING BRACKET 2 (R, H)

82M-2195F-00-00

1
Out of stock

23

DAMPER, NOISE 17

82M-77277-00-00

—

$0.78

In stock

24

REINFORCEMENT, SUB FRAME 2

82M-21938-00-00

1
Out of stock

25

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

26

CLAMP(83R)

90461-08113-00

—

$10.48

In stock

27

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

28

PATCH 5

82M-21965-00-00

1
Out of stock

29

PATCH 6

82M-21966-00-00

1
Out of stock

30

EMBLEM 1

87M-77351-00-00

1
Out of stock

31

EMBLEM 2

87M-77352-00-00

1
Out of stock

32

INDICATOR 2

8K2-77742-00-00

1
Out of stock

33

PROTECTOR 5

84M-77555-00-00

—

$7.31

In stock

34

TAPE, 5

85L-7717J-00-00

1
Out of stock

35

SHIELD, HEAT

86M-2199H-00-00

1
Out of stock

36

TAPE 3

8V0-7717G-00-00

—

$3.82

In stock

37

COVER 1

86M-2198F-00-00

1
Out of stock

38

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

39

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

40

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
