1990 Yamaha Exciter (EX570P) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1990 Yamaha Exciter (EX570P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

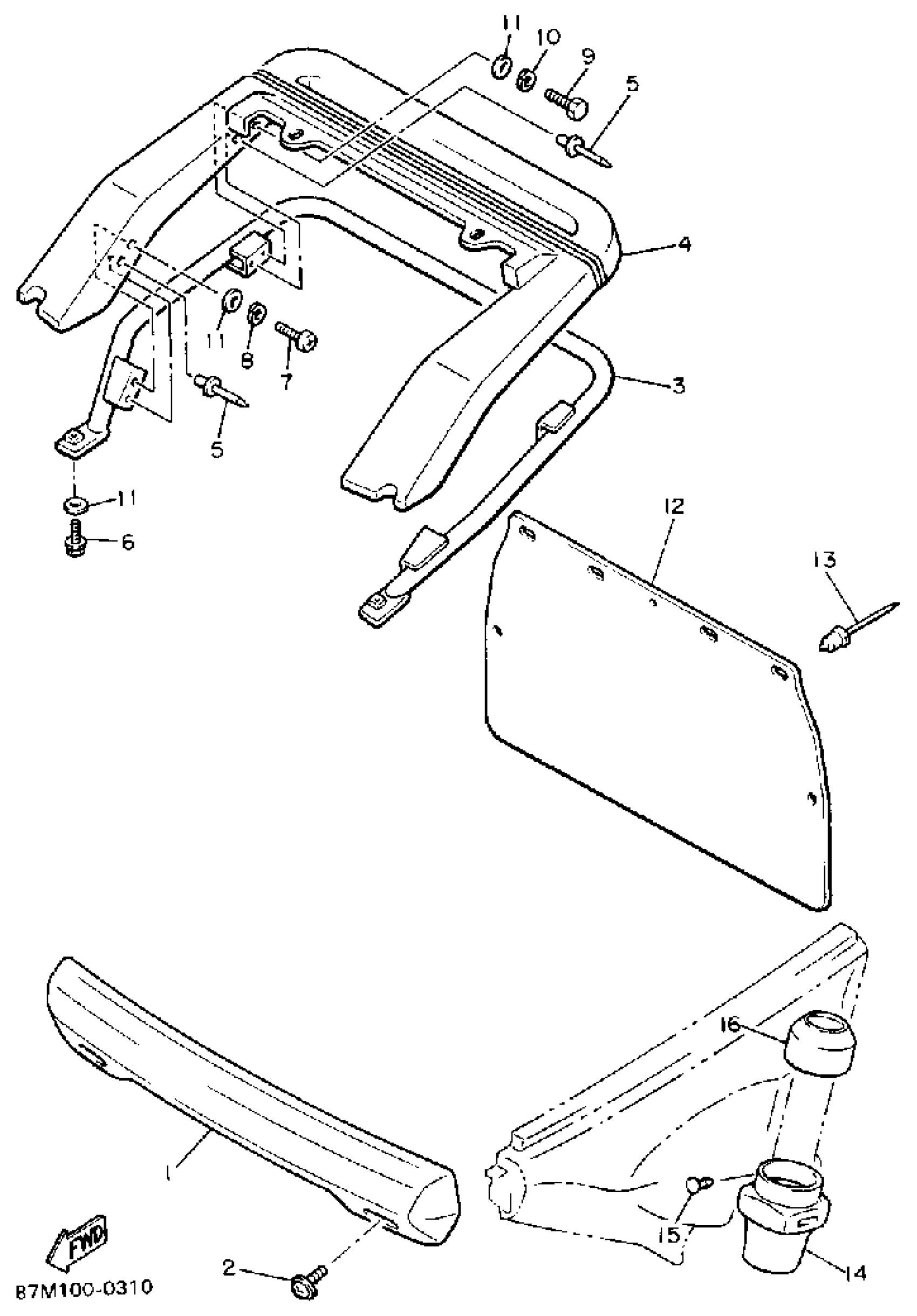

1990 Yamaha Exciter (EX570P) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

87M-77511-00-00

1
Out of stock

2

SCREW, W/WASHER (4L0)

90159-06060-00

1

$6.17

In stock

3

BUMPER, REAR 1

87F-77541-00-00

1
Out of stock

4

BUMPER, REAR 2

87F-77542-00-00

1
Out of stock

5

RIVET, BLIND

90267-48117-00

1
Out of stock

6

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

7

SCREW, BIND(J36)

98980-08025-00

1

$4.28

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

12

FLAP

8X9-77595-00-00

1
Out of stock

13

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

14

PROTECTOR 1

82M-77551-00-00

1
Out of stock

15

RIVET (8M6)

90269-04025-00

1
Out of stock

16

PROTECTOR 4

82M-77554-01-00

—
Out of stock
