1987 Yamaha Exciter (EX570L) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1987 Yamaha Exciter (EX570L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

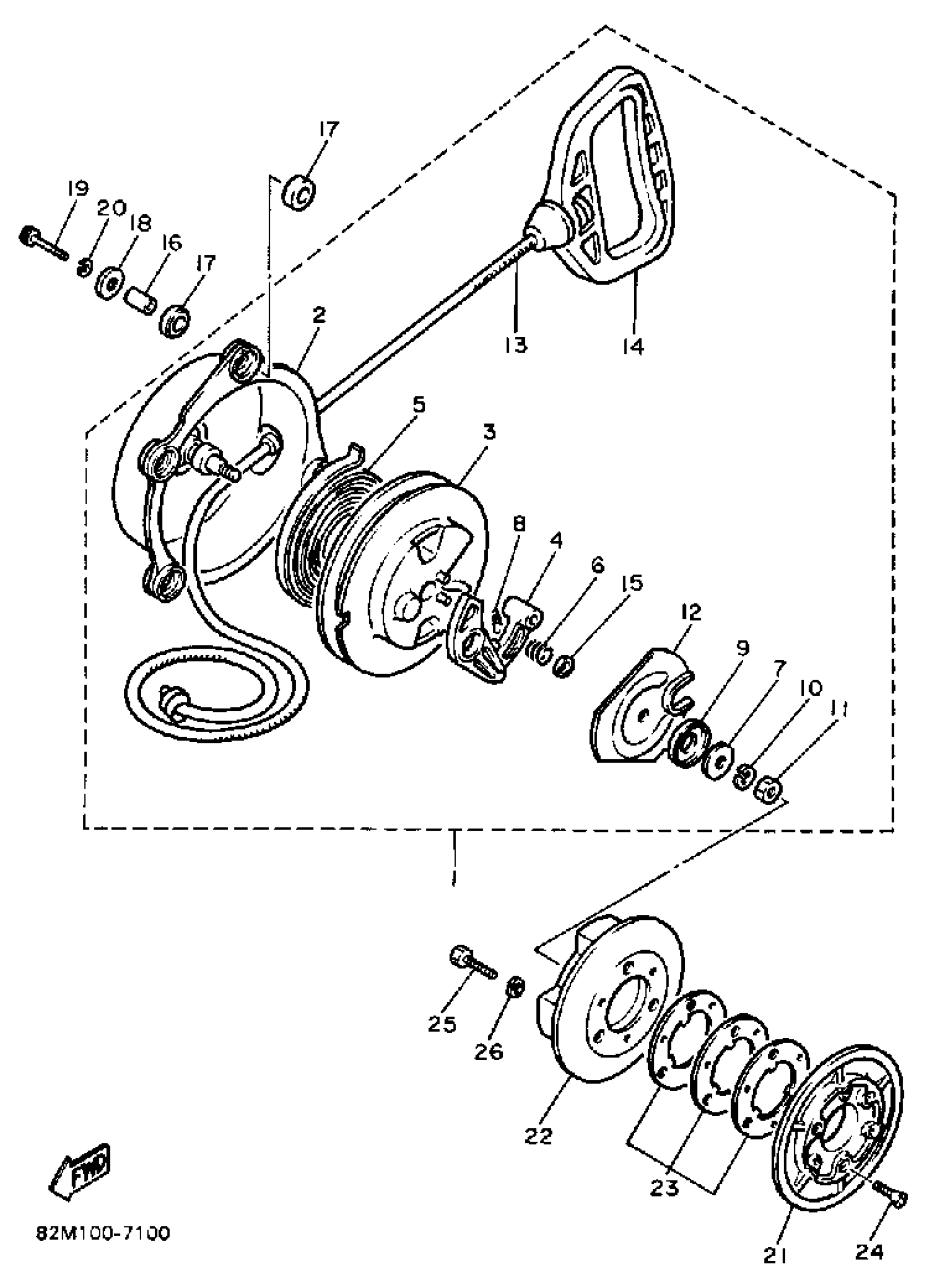

1987 Yamaha Exciter (EX570L) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

99999-02035-00

1
Out of stock

2

. CASE, STARTER

82M-15711-00-00

1
Out of stock

3

DRUM, SEAVE

8F3-15714-01-00

1

$45.63

In stock

4

PAWL, DRIVE

8F3-15741-01-00

1

$21.05

In stock

5

SPRING, STARTER

8F3-15713-01-00

1

$41.31

In stock

6

SPRING, DRIVE PLATE

8F3-15715-00-00

1

$9.15

In stock

7

WASHER, THRUST

8F3-15739-01-00

1

$11.03

In stock

8

SPRING, RETURN

8F3-15734-00-00

1

$5.12

In stock

9

. PLATE, DRIVE

82M-15716-00-00

1
Out of stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

WASHER, THRUST

8G5-15739-00-00

1

$6.94

In stock

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1

$27.50

In stock

14

HANDLE, STARTER

8F3-15755-00-00

1

$23.00

In stock

15

COLLOR

82M-15779-00-00

1

$6.88

In stock

16

COLLAR

90387-061F8-00

1
Out of stock

17

BUSH (8M6)

90385-12036-00

—

$7.80

In stock

18

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

19

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

PULLEY 1

82M-12618-00-00

1
Out of stock

22

PULLEY, STARTER

82M-15723-00-00

1
Out of stock

23

SHIM

8CA-15721-00-00

1
Out of stock

23

SHIM

8CA-15721-00-00

1
Out of stock

24

SCREW, FLAT

98707-06020-00

—

$6.69

In stock

25

BOLT, HEXAGON

97017-08030-00

—

$6.85

In stock

26

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock
