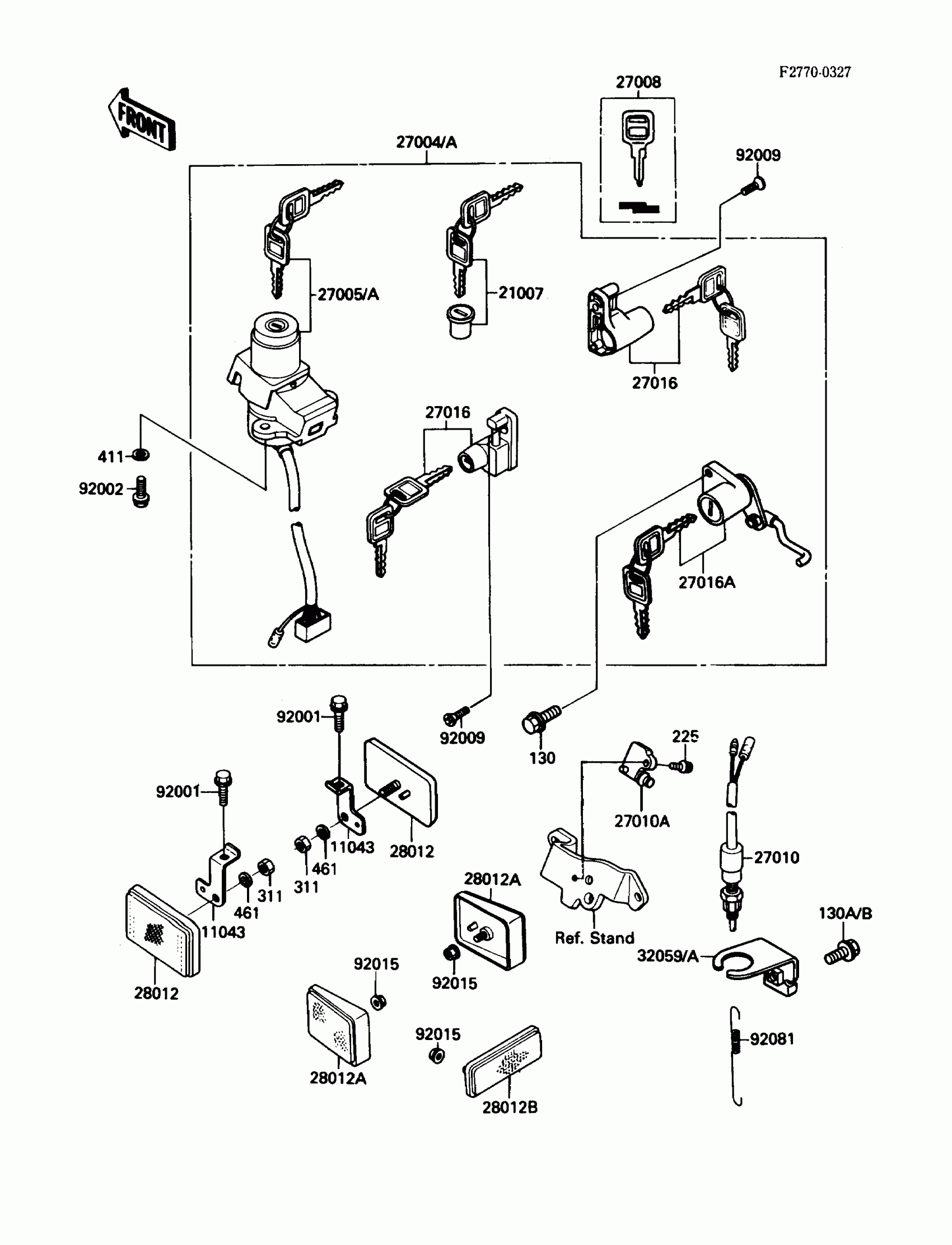

Kawasaki EX500 Ignition Switch/Locks/Reflectors Diagram

Description

Price

11043

BRACKET,FR,REFLECTOR

11043-1423

$10.24

21007

ROTOR,LOCK,TANK CAP

21007-5012

$94.15

27004A

SWITCH-ASSY

27004-5329

$401.38

27005A

SWITCH-ASSY-IGNITION

27005-5074

Unavailable

27008

KEY-LOCK,BLANK

27008-1103

$18.83

27010

SWITCH,REAR BRAKE

27010-1019

$37.98

27010A

SWITCH,BRAKE/SIDE STAND

27010-1185

Unavailable

27016

LOCK-ASSY,HELMET

27016-5091

$72.53

27016A

LOCK-ASSY,SEAT

27016-5123

$92.14

28012

REFLECTOR-REFLEX

28012-1003

$20.69

28012A

REFLECTOR-REFLEX,RR

28012-1056

$24.63

28012B

REFLECTOR-REFLEX

28012-1057

$21.76

32059A

BRACKET-SWITCH,REAR BRAKE

32059-1091

Unavailable

92001

BOLT,6X14,BLACK

92001-1847

$3.58

92002

BOLT,TORX,6X16

92002-1333

$2.15

92009

SCREW,5X18

92009-1305

$3.58

92015

NUT,FLANGED,5MM

92015-1259

$3.12

92081

SPRING,BRAKE LAMP SWITCH

27011-006

$4.34

130

BOLT-FLANGED,5X10

130B0510

Unavailable

130B

BOLT-FLANGED,6X14

130C0614

Unavailable

225

SCREW-PAN-WSP-CROS

225C0416

Unavailable

311

NUT-HEX

311B0500

$0.51

411

WASHER-PLAIN,6MM

411E0600

$1.19

461

WASHER SPRING 5MM

461F0500

Unavailable
