1993 Kawasaki EX500 Rear Wheel/chain/coupling Diagram

← All diagrams

Find the part on the Rear Wheel/chain/coupling diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

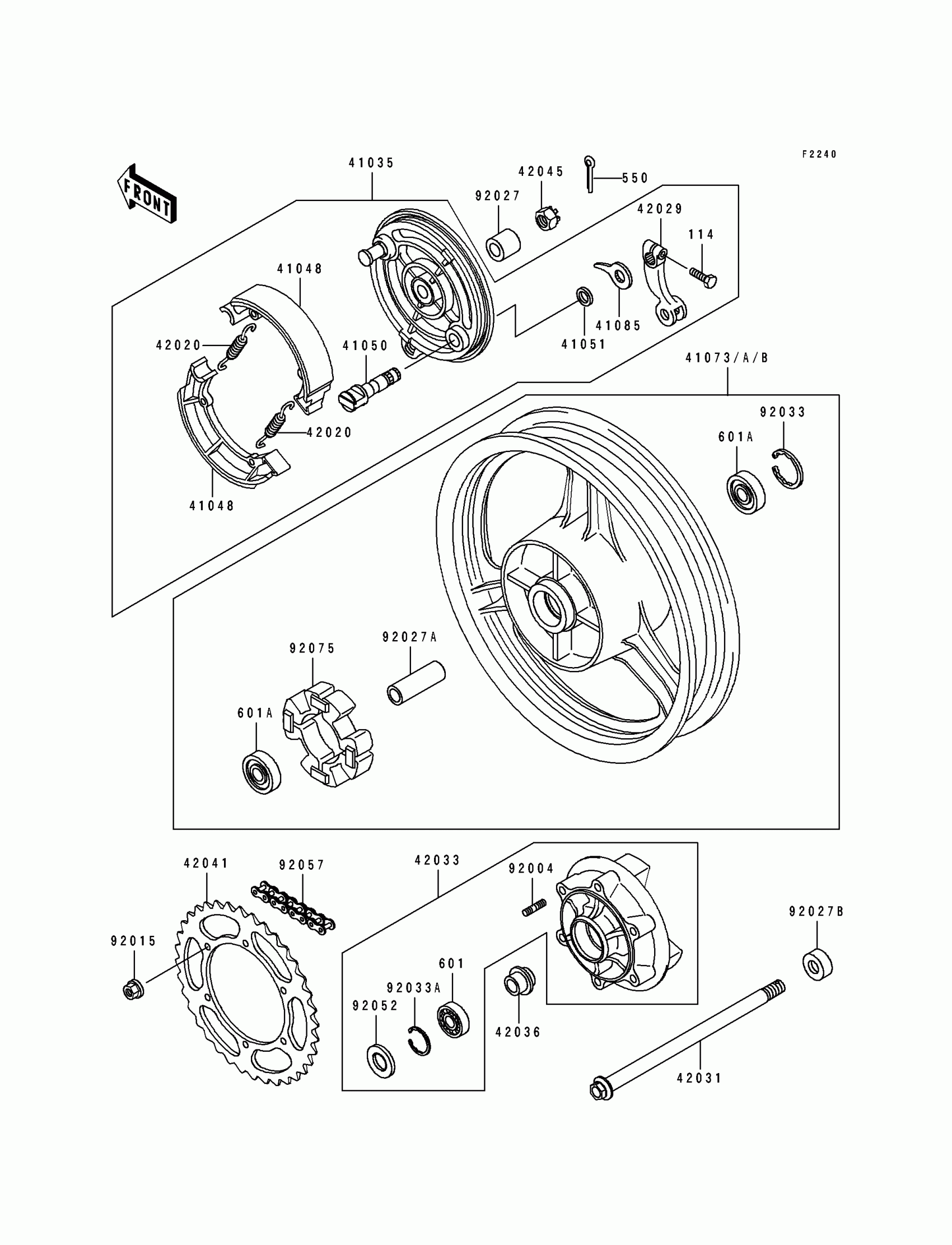

1993 Kawasaki EX500 Rear Wheel/chain/coupling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41035

PANEL-ASSY-BRAKE,RR

41035-1301

1
Out of stock

41048

SHOE-BRAKE

41048-1069

1

$24.30

In stock

41050

CAM-BRAKE

41050-1065

1

$40.90

In stock

41051

SEAL,BRAKE CAM

41051-003

1

$3.39

In stock

41073A

WHEEL-ASSY,RR,WHITE NO.1

41073-1413-T6

1

$890.94

In stock

41085

INDICATOR,BRAKE SHOE

41085-004

1
Out of stock

42020

SPRING,BRAKE SHOE

42020-004

1

$6.75

In stock

42029

LEVER-BRAKE CAM

42029-039

1
Out of stock

42031

AXLE,RR

42031-053

1

$57.83

In stock

42033

1

$237.65

In stock

42036

SLEEVE,RR HUB,L=33

42036-1146

1
Out of stock

42041

SPROCKET-HUB,42T

42041-1279

1

$76.84

In stock

42045

NUT,CASTLE,16MM

42045-014

1

$7.86

In stock

92004

STUD,10X24

92004-1146

1
Out of stock

92015

NUT,10MM

92015-1720

1

$4.16

In stock

92027

COLLAR,REAR AXLE,RH,L=18.5

92027-1484

1
Out of stock

92027A

1

$15.86

In stock

92027B

COLLAR,RR HUB

92027-1784

1

$22.49

In stock

92033

RING-SNAP,47MM

92033-1042

1

$3.36

In stock

92033A

RING-SNAP,52MM

92033-1043

1

$6.41

In stock

92052

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92057

1

$269.60

In stock

92075

DAMPER,SHOCK,RR HUB

92075-1687

1

$72.12

In stock

114

BOLT HEX HEAD 8X28

114G0828

1
Out of stock

550

1

$1.81

In stock

601

BEARING-BALL,#6205G

601B6205G

1
Out of stock

601A

1

$41.16

In stock
