1993 Kawasaki EX500 Gear Change Drum/shift Forks Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Forks diagram for your 1993 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

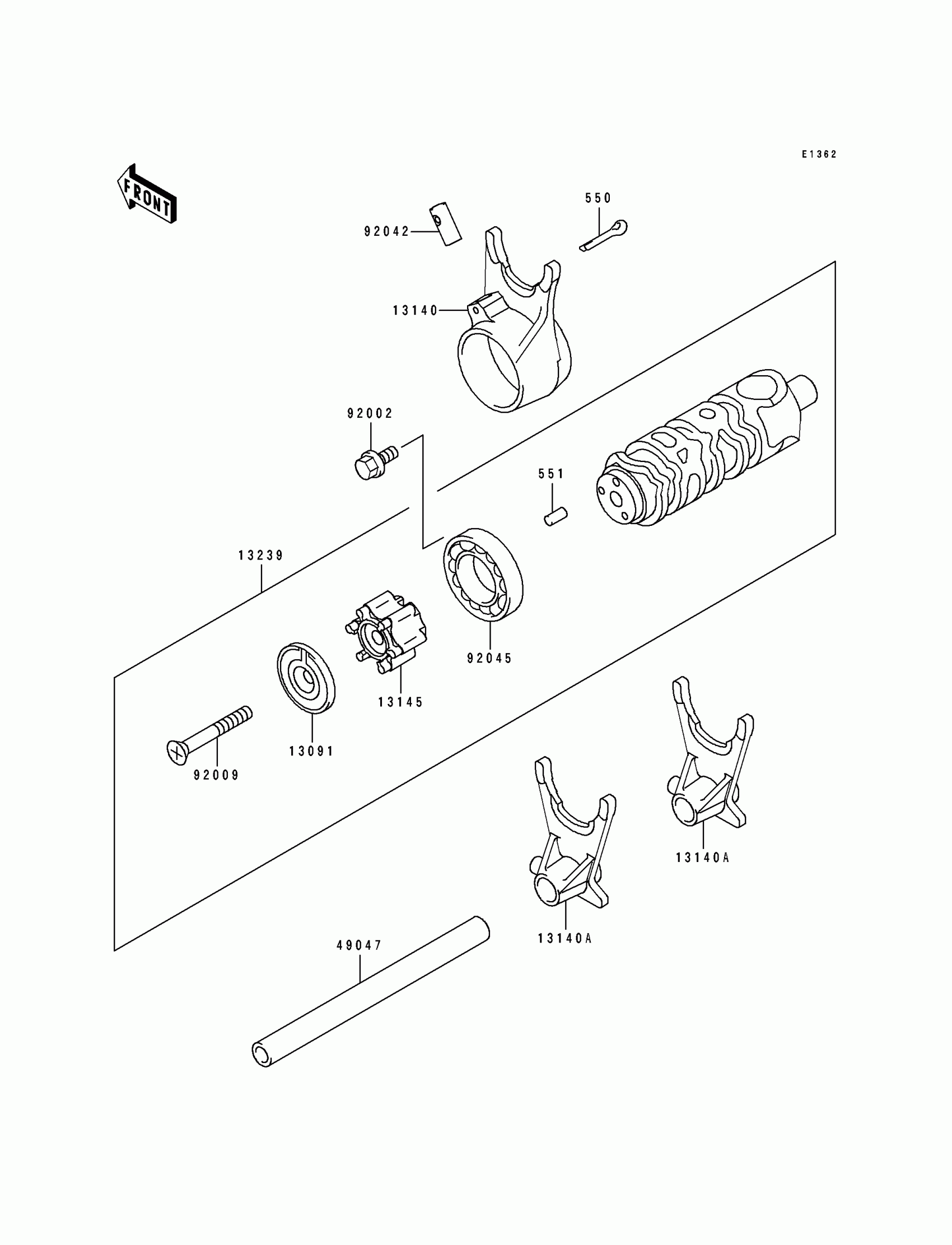

1993 Kawasaki EX500 Gear Change Drum/shift Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM

13091-1351

1

$31.15

In stock

13140

FORK-SHIFT,DRIVE

13140-1016

1

$112.11

In stock

13140A

FORK-SHIFT,OUTPUT

13140-1062

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1056

1

$64.81

In stock

13239

DRUM-ASSY-CHANGE

13239-1118

1
Out of stock

49047

ROD-SHIFT

49047-1061

1

$24.24

In stock

92002

BOLT,6X12

92002-1572

1
Out of stock

92009

SCREW,6X45

92009-1599

1
Out of stock

92042

PIN,DOWEL,8X18

92042-021

1

$9.12

In stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

550

1

$1.53

In stock

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock
