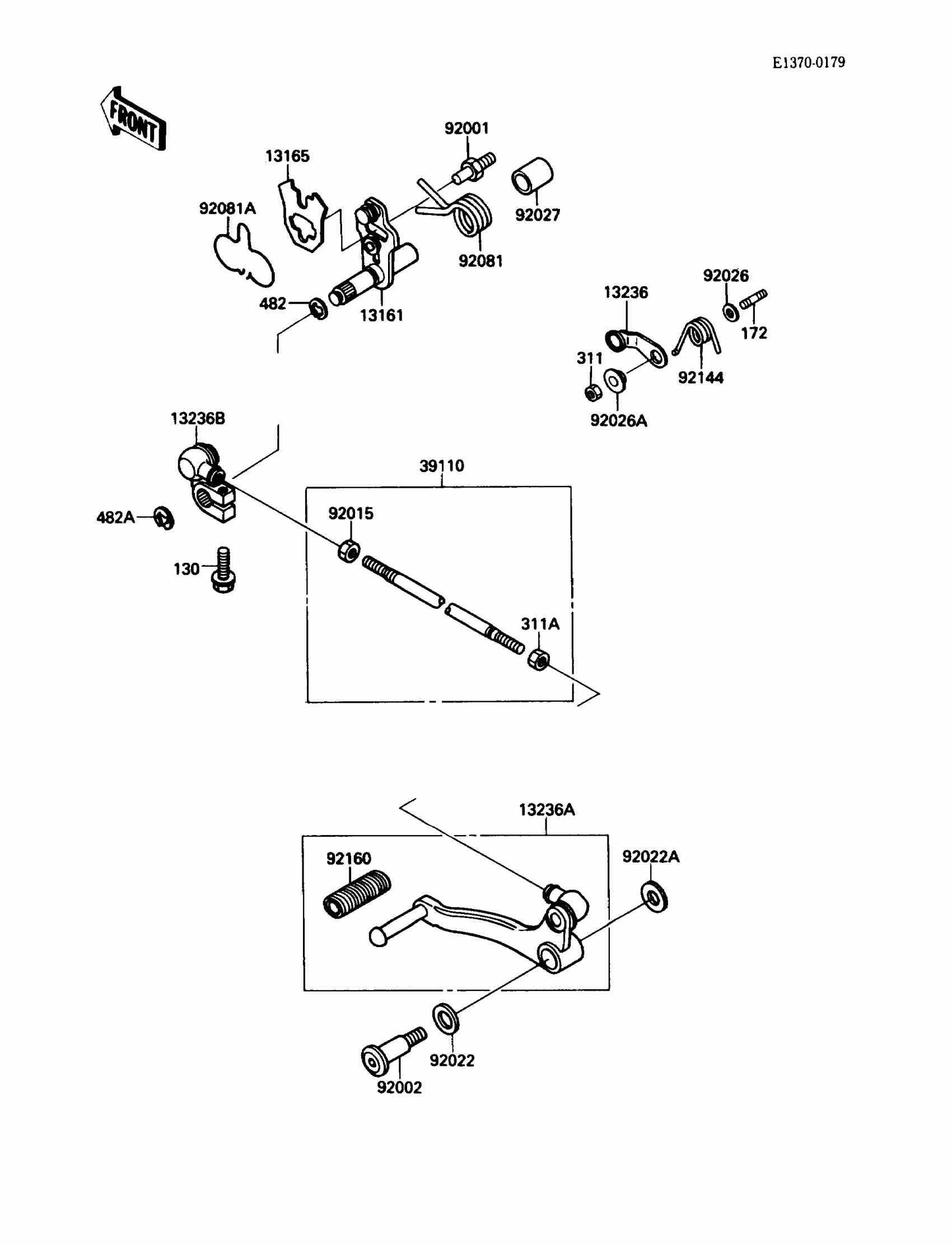

Find the part on the Gear Change Mechanism diagram for your 1989 Kawasaki EX500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

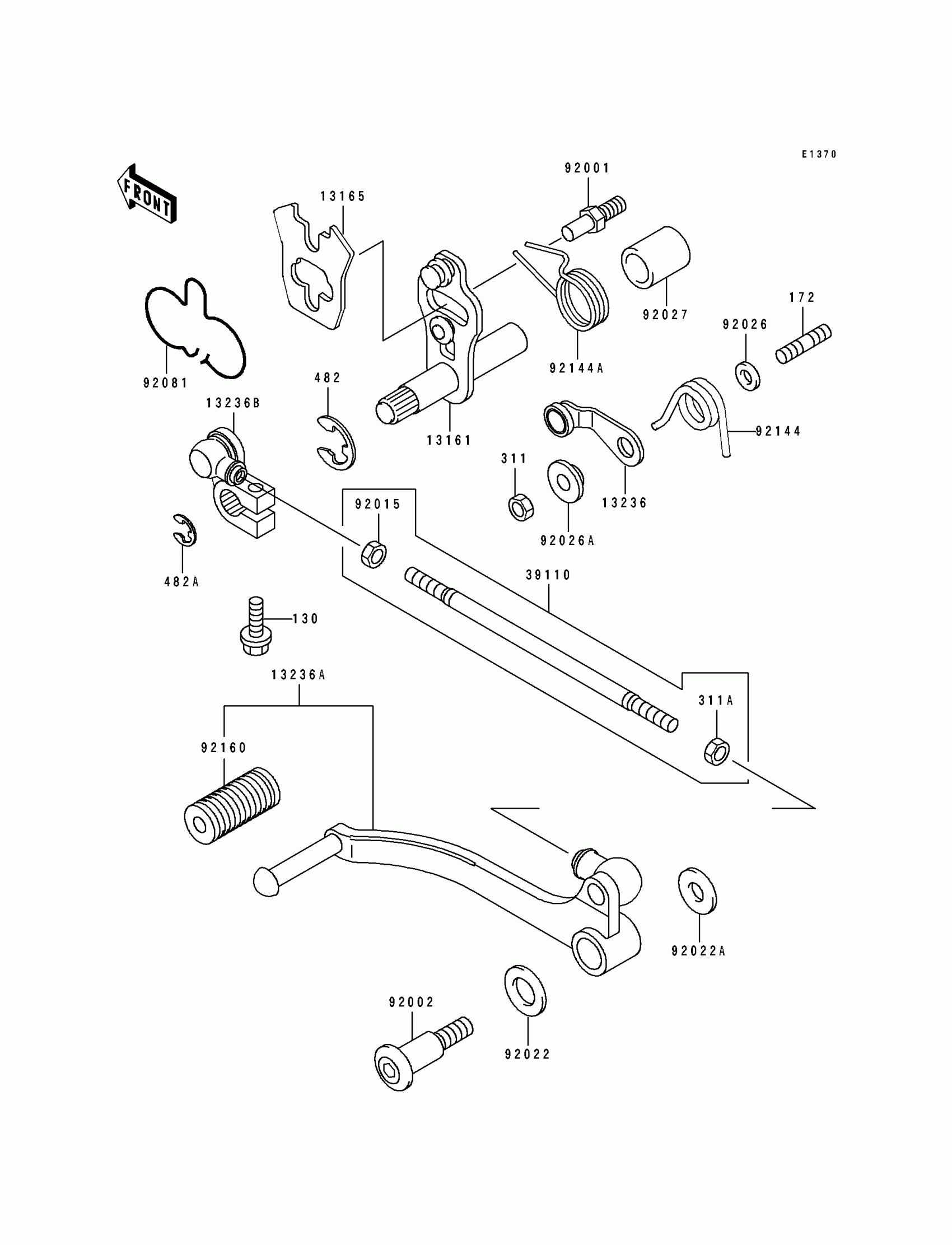

1989 Kawasaki EX500 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

LEVER-COMP-CHANGE SHAFT

13161-1117

1
Out of stock

13165

PAWL,CHANGE LEVER

13165-1034

1
Out of stock

13236

LEVER-COMP,GEAR POSITION

13236-1103

1
Out of stock

13236A

LEVER-COMP,CHANGE PEDAL

13236-1153

1
Out of stock

13236B

LEVER-COMP,CHANGE LINK

13236-1154

1
Out of stock

39110

ROD-ASSY-TIE

39110-1077

1
Out of stock

92001

BOLT,RETURN SPRING

92001-1455

1
Out of stock

92002

BOLT,CHANGE PEDAL

92002-1926

1
Out of stock

92015

NUT,LEFT HANDED,6MM

92015-1178

1
Out of stock

92022

WASHER,12.5X21X1.2

92022-1537

1
Out of stock

92022A

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92026

SPACER,6.3X12X1.0

92026-094

1
Out of stock

92026A

SPACER

92026-1217

1
Out of stock

92027

COLLAR,13X18.3X21.5

92027-1440

1
Out of stock

92081

SPRING,CHANGE PEDAL RETURN

92081-1387

1
Out of stock

92081A

SPRING,CHANGE LEVER

92081-1785

1
Out of stock

92144

SPRING,POSITION LEVER

92144-1180

1
Out of stock

92160

DAMPER,CHANGE PEDAL

92160-1036

1
Out of stock

130

BOLT-FLANGED,6X20

130S0620

1
Out of stock

172

BOLT-STUD,6X14

172G0614

1
Out of stock

311

NUT-HEX,6MM

311G0600

1
Out of stock

311A

NUT-HEX

311J0600

1
Out of stock

482

CIRCLIP-TYPE-E,12MM

482J0200

1
Out of stock

482A

CIRCLIP-TYPE-E

482L7000

1
Out of stock
