1981 Yamaha EX440E Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

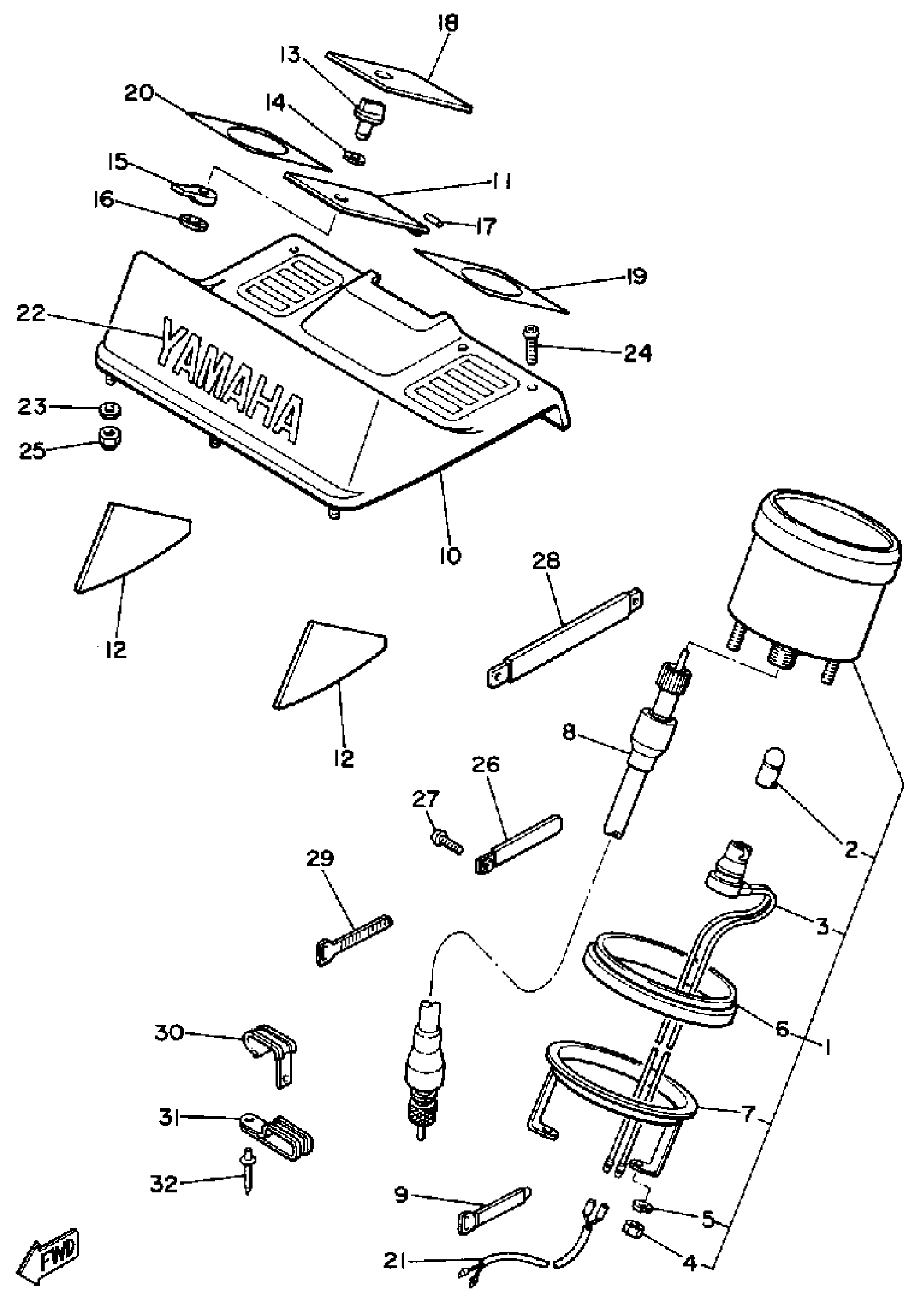

1981 Yamaha EX440E Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(8L5-83510-40-00)

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

7

. BRACKET, METER

8G6-83519-00-00

1
Out of stock

8

SPEEDOMETER CABLEASSEMBLY

8H6-83550-00-00

1
Out of stock

9

BAND

341-26397-01-00

1
Out of stock

10

PANEL, METER

(8H6-83611-00-00)

1
Out of stock

11

COVER, LUGGAGE BOX

(8H6-77392-00-00)

1
Out of stock

12

SHEET, LUGGAGE BOX

8H6-77394-00-00

1
Out of stock

13

KNOB

8H6-77324-00-00

1
Out of stock

14

WASHER, WAVE

(90206-10063-00)

1
Out of stock

15

LEVER, ARM FITTING

8H6-77328-00-00

1
Out of stock

16

NUT, SPRING

90183-06071-00

1

$0.54

In stock

17

PIN

8H6-77384-00-00

1
Out of stock

18

EMBLEM 10

(8H6-77365-00-00)

1
Out of stock

19

EMBLEM 11

8H6-77366-00-00

1
Out of stock

20

EMBLEM 12

8H6-77367-00-00

1
Out of stock

21

WIRE, LEAD

8H6-83553-00-00

1
Out of stock

22

EMBLEM 9

(8H6-77359-00-00)

1
Out of stock

23

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

24

SCREW, FLAT

98707-05020-00

—
Out of stock

25

NUT, NYLON

95707-05300-00

—

$2.74

In stock

26

CLAMP

90462-06037-00

1
Out of stock

27

SCREW, BINDING

98907-06008-00

—

$6.68

In stock

28

CLAMP

90465-05128-00

1
Out of stock

29

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

30

CLAMP (706)

90465-06100-00

—
Out of stock

31

CLAMP

(90461-05014-00)

1
Out of stock

32

RIVET, BLIND

90267-40936-00

1

$1.38

In stock
