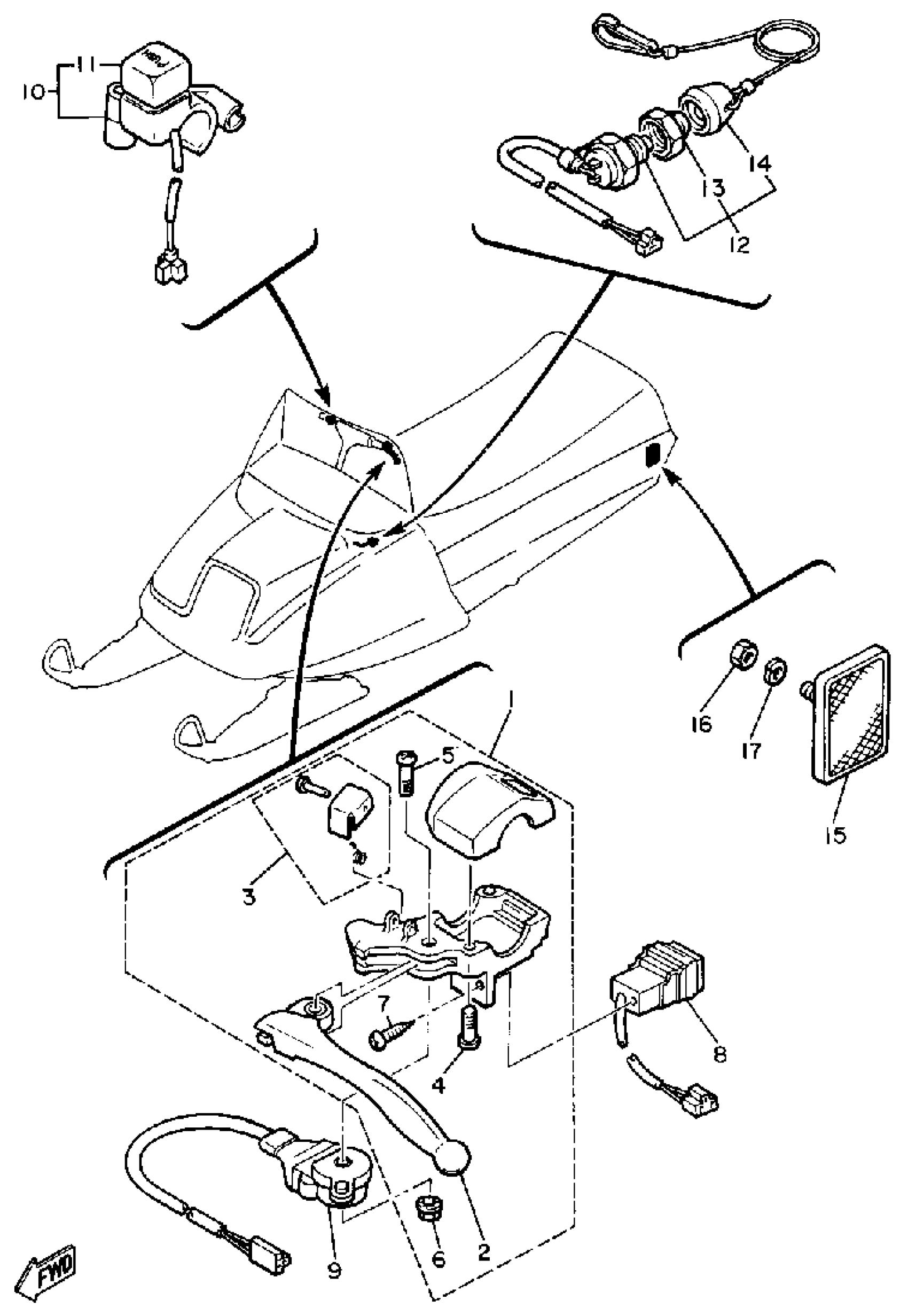

Yamaha EX440E 1981 ELECTRICAL 2 Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

8R4-W8291-02-00

Unavailable

2

LEVER L

803-83912-00-38

Unavailable

3

LEVER LOCK ASSY

8E3-W8393-01-00

Unavailable

4

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.31

5

SCREW,PANHEAD (EG9)

98580-05540-00

$6.22

6

NUT, NYLON

95707-05300-00

$2.56

7

. SCREW, TAPPING

97780-30312-00

Unavailable

8

BEAM SWITCH ASSY

8H8-83950-01-00

$64.46

9

STOP SWITCH ASSY

8R4-82530-00-00

$27.23

10

SWITCH, HANDLE 1

8E3-83976-02-00

$92.27

11

CAP 1

8E3-83956-01-00

$6.62

12

STOP SWITCH ASSEMBLY

8J7-82550-01-00

Unavailable

13

NUT

8H8-82557-00-00

$3.73

14

CAP, SWITCH

8H8-82552-09-00

$41.41

15

REFLECTOR, REAR 1

8J7-85131-00-00

Unavailable

16

NUT, HEXAGON

95380-06600-00

$4.11

17

WASHER, SPRING

92995-06100-00

$2.95
