1981 Yamaha EX440E Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

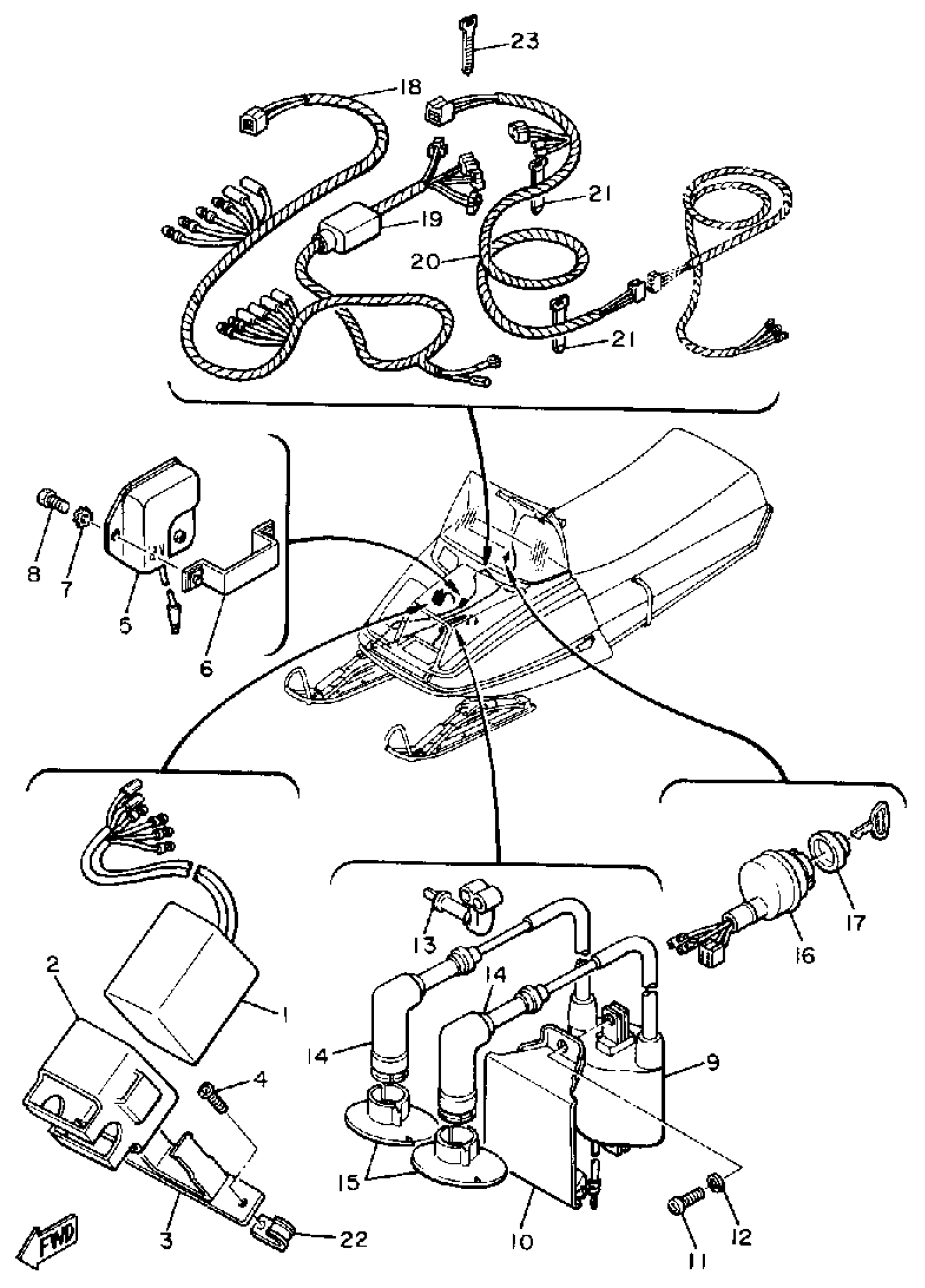

1981 Yamaha EX440E Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

8J7-85540-10-00

1
Out of stock

2

BAND

2A7-85546-00-00

—

$20.40

In stock

3

BRACKET

(8H6-85542-00-00)

1
Out of stock

4

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

5

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

1

$50.55

In stock

6

PLATE, REG FITTING

8G6-81915-00-00

1
Out of stock

7

WASHER, TOOTH

92901-06400-00

1
Out of stock

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

9

IGNITION COIL ASY

8E7-82310-09-00

1
Out of stock

10

COVER, IGNITN COIL

(8E7-82314-00-00)

1
Out of stock

11

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

CLAMP, CORD

(8E7-82361-00-00)

1
Out of stock

14

PLUG CAP ASSY

7KA-82370-00-00

1

$62.25

In stock

15

SEAL, PLUG CAP

8E7-82372-00-00

1
Out of stock

16

MAIN SWITCH ASSEMBLY

8J7-82508-20-00

1
Out of stock

17

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

18

WIRE HARNESS ASSEMBLY

8J7-82590-20-00

1
Out of stock

19

COVER, CONNECTER

(878-82599-00-00)

1
Out of stock

20

WIRE HARNESS ASSEMBLY 2

(8J7-82580-20-00)

1
Out of stock

21

BAND

341-26397-01-00

1
Out of stock

22

CLAMP

90465-06013-00

1
Out of stock

23

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
