1981 Yamaha EX440E Fuel Tank Diagram

← All diagrams

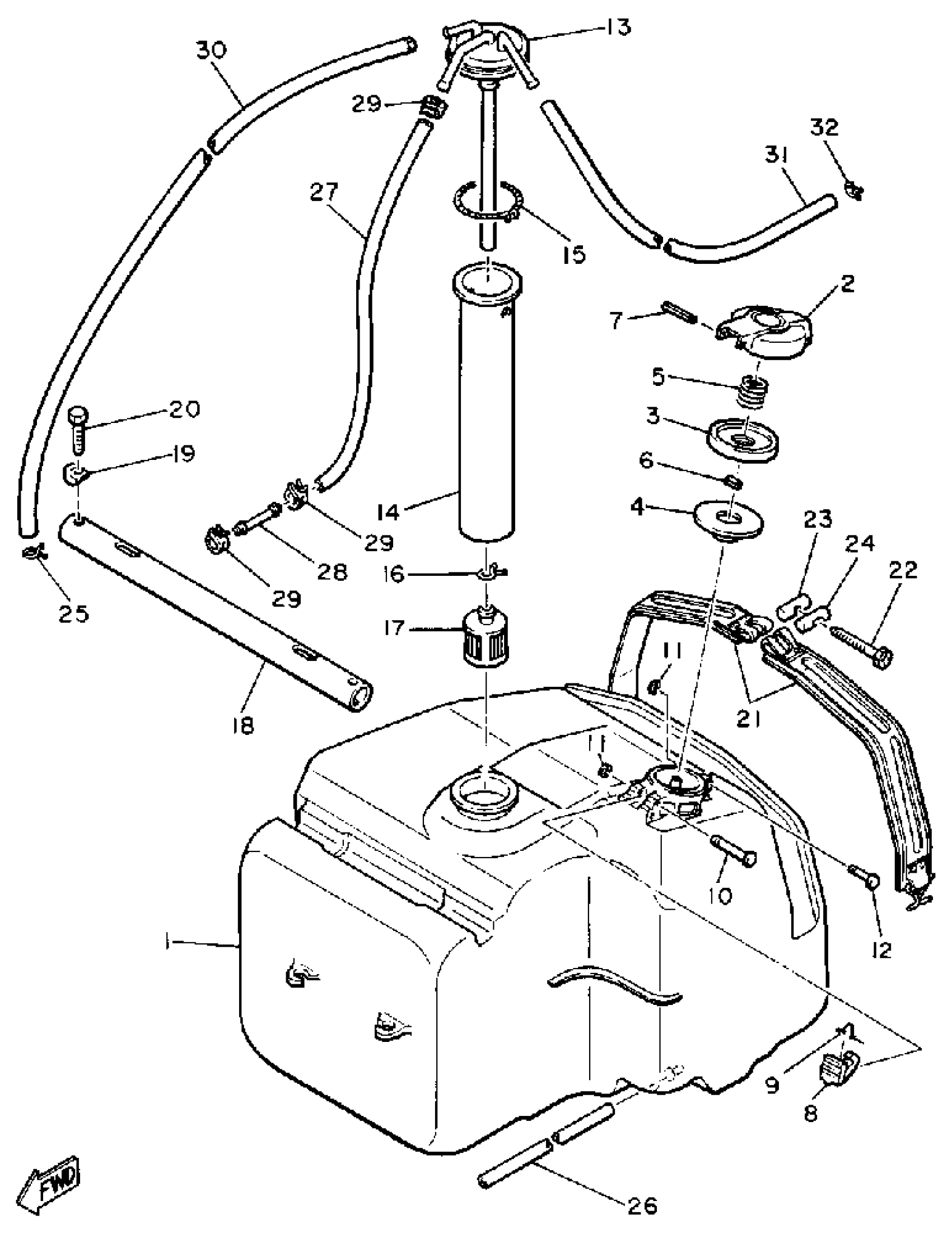

Find the part on the Fuel Tank diagram for your 1981 Yamaha EX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha EX440E Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

8G6-24111-01-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

DISK,CAP

813-24613-01-00

1

$18.71

In stock

4

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

5

SPRING, CAP

90501-20130-00

1

$6.80

In stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING

91609-25032-00

1

$1.83

In stock

8

HOOK

83M-24628-00-00

1

$19.68

In stock

9

SPRING, TORSION(81E)

90508-10715-00

—

$5.48

In stock

10

PIN (813)

90249-03017-00

1

$2.25

In stock

11

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

12

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

13

PIPE, SUCTION 1

(8G6-24335-00-00)

1
Out of stock

14

PIPE, SUCTION 2

(8G6-24336-01-00)

1
Out of stock

15

SPRING, TENSION (8R4)

90506-06261-00

1

$6.94

In stock

16

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

17

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

18

BAND, TNK FITTING 1

(878-24173-01-00)

1
Out of stock

19

WASHER, LOCK

(90215-06048-00)

1
Out of stock

20

BOLT (682)

97095-06040-00

—

$2.36

In stock

21

BAND, TNK FITTING 2

8G6-24199-00-00

1
Out of stock

22

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

23

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

24

CLAMP

806-24135-00-00

—

$3.20

In stock

25

CLIP (8J7)

90467-11009-00

—

$7.55

In stock

26

TUBE, FLEXIBLE(3NV)

91A21-07020-00

—

$8.95

In stock

27

HOSE

91A30-07036-00

1
Out of stock

28

PIPE, JOINT 4

878-24379-00-00

1

$6.46

In stock

29

CLIP

90467-11028-00

1

$5.14

In stock

30

HOSE (806-24319-00)

90446-09051-00

1
Out of stock

31

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

32

CLIP (8L2)

90467-08017-00

—

$7.51

In stock
