1977 Yamaha EX440A Shroud Diagram

← All diagrams

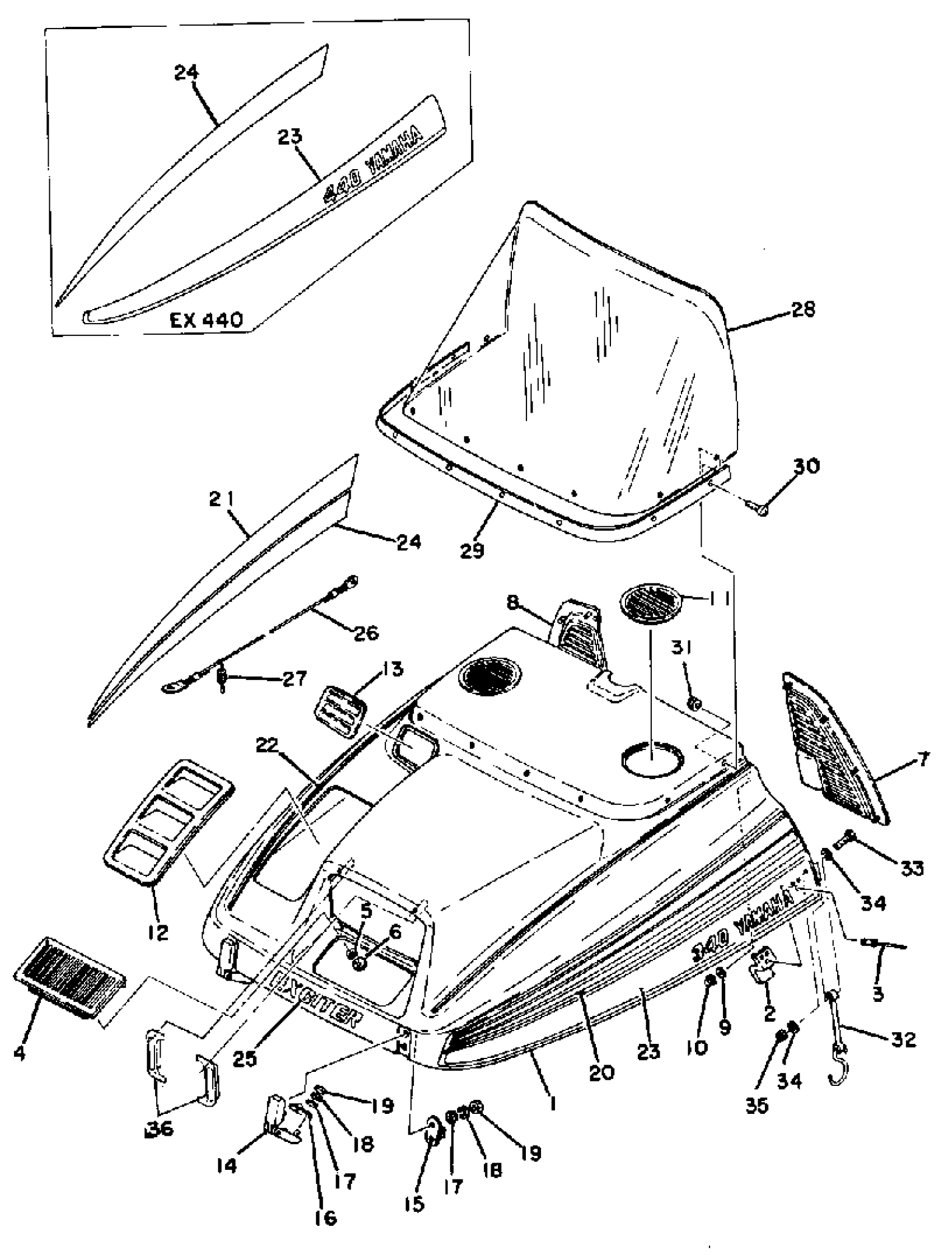

Find the part on the Shroud diagram for your 1977 Yamaha EX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha EX440A Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

8E7-77110-00-00

1
Out of stock

2

CLAMP 2

8A5-77136-01-00

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK (90267-40004)

90267-40M04-00

1
Out of stock

4

LOUVER 6

8A5-77108-30-00

1
Out of stock

5

NUT 6504269100

90183-05003-00

1
Out of stock

6

EMBLEM 3

838-77143-00-00

1
Out of stock

7

LOUVER 1

8A5-77131-01-00

1
Out of stock

8

LOUVER 2

8A5-77132-01-00

1
Out of stock

9

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

10

NUT, NYLON

95707-05300-00

1

$2.74

In stock

11

LOUVER 3

8A7-77133-00-00

1
Out of stock

12

LOUVER 4

8A5-77134-30-00

1
Out of stock

13

LOUVER 5

8A5-77109-00-00

1
Out of stock

14

HINGE ASSEMBLY

878-77140-00-00

1
Out of stock

15

PLATE, BACK UP 1

8G6-77153-00-00

1
Out of stock

16

PLATE, BACK UP 2

878-77154-00-00

1
Out of stock

17

WASHER, PLATE

90201-06M08-00

1
Out of stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

20

ORNAMENT 1

(8E7-77163-00-00)

1
Out of stock

21

ORNAMENT 2

(8E7-77164-00-00)

1
Out of stock

22

ORNAMENT 3

(8A5-77169-00-00)

1
Out of stock

23

ORNAMENT 4

(8E7-77113-00-00)

1
Out of stock

23

ORNAMENT 4

(8E8-77113-00-00)

1
Out of stock

24

ORNAMENT 5

(8E7-77114-00-00)

1
Out of stock

24

ORNAMENT 5

8E8-77114-00-00

1
Out of stock

25

EMBLEM 6

(8A5-77356-00-00)

1
Out of stock

26

STOPPER, SHROUD

8A5-77118-00-00

1
Out of stock

27

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

28

WINDSHIELD

8A5-77210-00-00

1
Out of stock

29

SHROUD ASSEMBLY

8E7-77110-00-00

1
Out of stock

30

SCREW, BINDING(3XV)

90154-05059-00

—

$5.21

In stock

31

NUT, NYLON

95707-05300-00

1

$2.74

In stock

32

LATCH ASSEMBLY

856-77170-00-00

1
Out of stock

33

SCREW, BIND(J39)

98980-06030-00

—

$5.62

In stock

34

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

35

NUT, NYLON

95707-06300-00

—

$3.20

In stock

36

DUCT

(8A5-77194-00-00)

1
Out of stock
