1977 Yamaha EX440A Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1977 Yamaha EX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

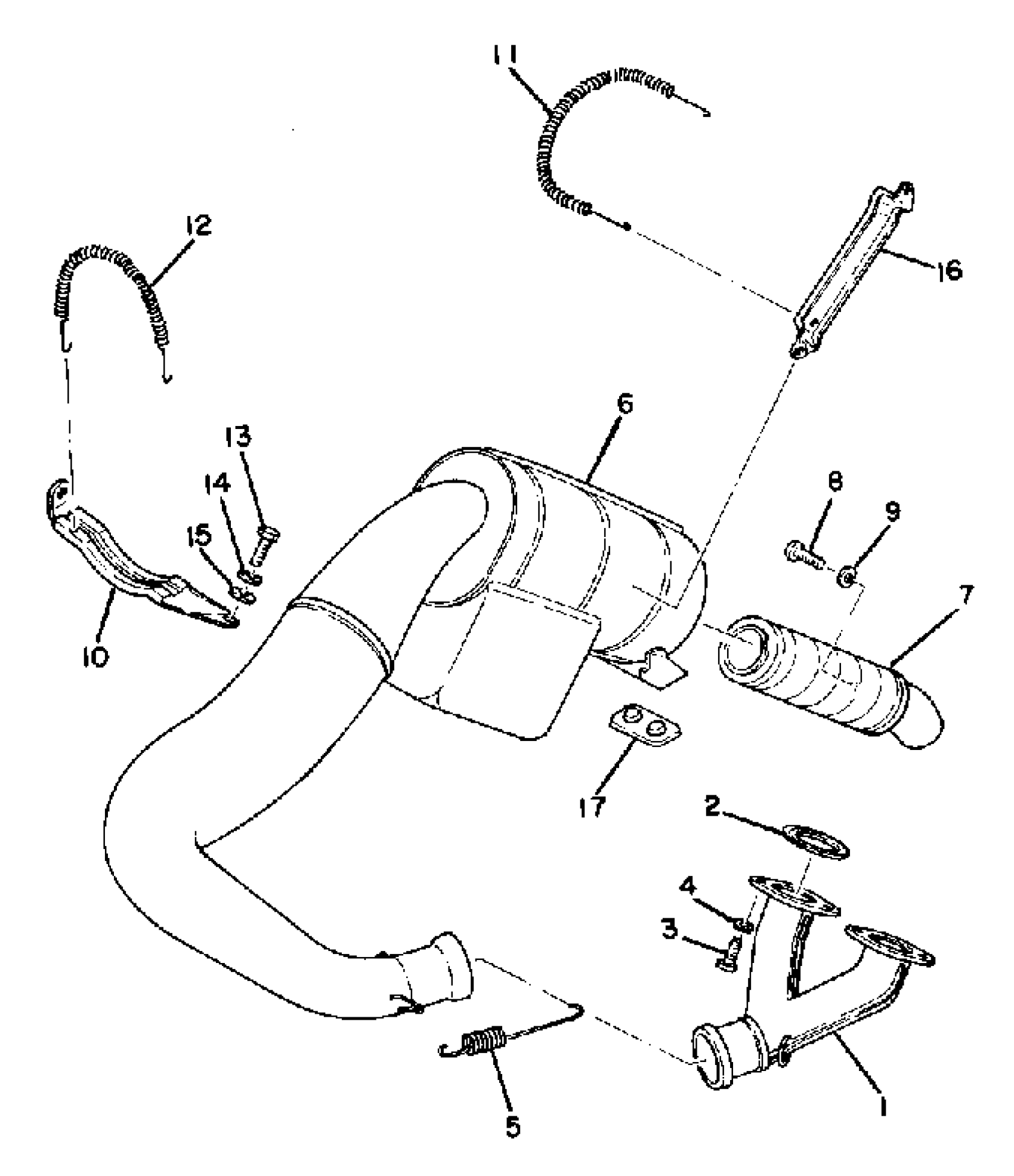

1977 Yamaha EX440A Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

8A5-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

89A-14613-00-00

1

$13.42

In stock

3

BOLT (682)

97013-08025-00

1

$6.80

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

6

MUFFLER ASSEMBLY L

(8G7-14710-00-00)

1
Out of stock

6

MUFFLER ASSEMBLY L

(8H6-14710-00-00)

1
Out of stock

7

SILENCER, EXHAUST

8A5-14753-00-00

1
Out of stock

8

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

STAY, MUFFLER 1

8A5-14771-00-00

1
Out of stock

11

SPRING, TENSION

90506-16130-00

1
Out of stock

12

SPRING, TENSION (8BU1)

90506-16494-00

1

$6.22

In stock

13

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

16

STAY, MUFFLER 2

(8A5-14772-01-00)

1
Out of stock

17

PROTECTOR, MUFFLER 2

8A5-14728-02-00

1
Out of stock
