1977 Yamaha EX440A Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1977 Yamaha EX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

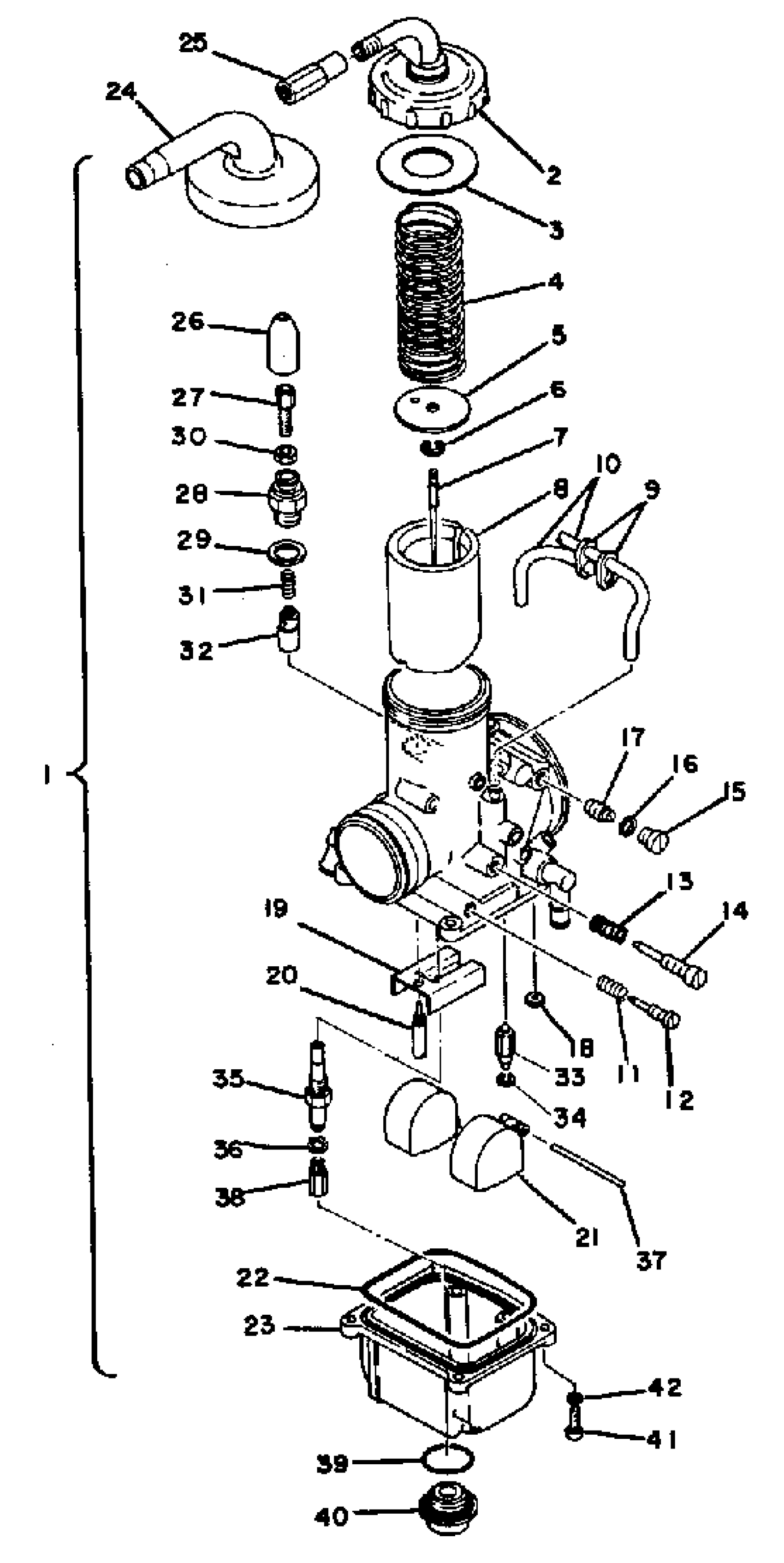

1977 Yamaha EX440A Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

8E7-14101-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

8E8-14101-00-00

1
Out of stock

2

. TOP, MIXING CHAMBER

8A6-14158-00-00

1
Out of stock

3

GASKET

(8A6-14126-01-00)

1
Out of stock

4

SPRING, COMPRESSION

(90501-16401-00)

1
Out of stock

5

PLATE

(8A6-14146-00-00)

1
Out of stock

6

CLIP BAR

(371-14929-60-00)

1
Out of stock

7

NEEDLE

(8A5-14916-00-00)

1
Out of stock

7

NEEDLE

(8A6-14916-00-00)

1
Out of stock

8

. VALVE, THROTTLE

8A6-14970-01-00

1
Out of stock

9

BUSH

(8A6-14998-00-00)

1
Out of stock

10

NET, FILTER

(8A6-14994-01-00)

1
Out of stock

11

. SPRING, COMPRESSION

90501-07398-00

1
Out of stock

12

SCREW, PILOT

(8A6-14923-00-00)

1
Out of stock

13

SPRING, COMPRESSION

(90501-12444-00)

1
Out of stock

14

SCREW, THROTTLE

(8A6-14922-00-00)

1
Out of stock

15

SCREW

(845-14567-00-00)

1
Out of stock

16

. WASHER

838-14597-00-00

1
Out of stock

17

JET #90

(888-14515-90-00)

1
Out of stock

17

JET, MAIN #100

(888-14516-00-00)

1
Out of stock

18

O-RING

(8A6-14147-00-00)

1
Out of stock

19

CLIP

(8A6-14919-01-00)

1
Out of stock

20

JET

(8A6-14948-05-00)

1
Out of stock

20

JET

(8A6-14948-06-00)

1
Out of stock

20

. JET

8A6-14948-07-00

1
Out of stock

20

. JET

8A6-14948-08-00

1
Out of stock

20

. JET

8A6-14948-09-00

1
Out of stock

21

FLOAT

(8A6-14985-00-00)

1
Out of stock

22

. O-RING

93210-72310-00

1
Out of stock

23

BODY, FLOAT CHAMBER

(8E7-14980-00-00)

1
Out of stock

24

CAP

(8A6-14169-00-00)

1
Out of stock

25

ADJUSTER, CABLE

(8A6-14576-00-00)

1
Out of stock

26

COVER

(8A6-14967-00-00)

1
Out of stock

27

—

$19.06

In stock

28

CAP, PLUNGER

8A6-14969-00-00

—

$23.14

In stock

29

. WASHER, PLATE

90201-12581-00

1
Out of stock

30

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

31

SPRING (8E7)

90501-08443-00

—

$8.63

In stock

32

PLUNGER, STARTER

371-14993-60-00

—

$31.14

In stock

33

VALVE,FLOAT

8E7-14546-01-00

—

$57.49

In stock

34

CLIP

633-14159-00-00

—

$13.88

In stock

35

JET, NEEDLE

(8A6-14947-01-00)

1
Out of stock

36

CLIP

(8A6-14159-00-00)

1
Out of stock

37

PIN, FLOAT ARM

(371-14548-60-00)

1
Out of stock

38

. JET, MAIN #130

8A6-14516-30-00

1
Out of stock

38

. JET, MAIN #135

8A6-14516-35-00

1
Out of stock

38

. JET, MAIN #140

8A6-14516-40-00

1
Out of stock

38

. JET, MAIN #145

8A6-14516-45-00

1
Out of stock

38

. JET, MAIN #150

8A6-14516-50-00

1
Out of stock

38

. JET, MAIN #150

8A6-14516-50-00

1
Out of stock

38

. JET, MAIN #155

8A6-14516-55-00

1
Out of stock

38

. JET, MAIN #160

8A6-14516-60-00

1
Out of stock

38

. JET, MAIN #165

8A6-14516-65-00

1
Out of stock

38

. JET, MAIN #170

8A6-14516-70-00

1
Out of stock

38

. JET, MAIN #175

8A6-14516-75-00

1
Out of stock

38

. JET, MAIN #180

8A6-14516-80-00

1
Out of stock

39

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

40

. ROD

8M7-14992-00-00

1
Out of stock

41

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

42

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock
