1977 Yamaha EX440A Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1977 Yamaha EX440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

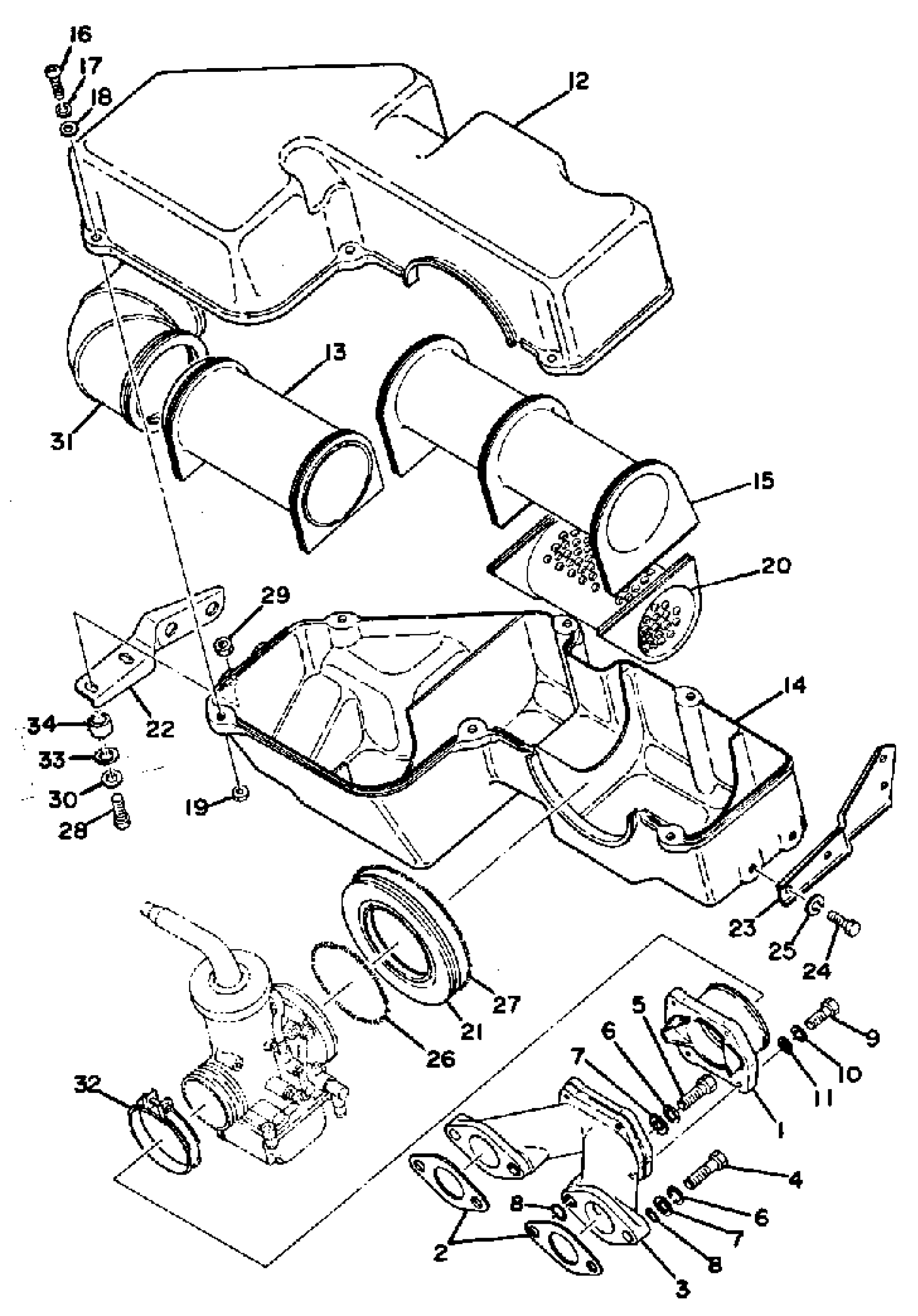

1977 Yamaha EX440A Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

8A6-13555-00-00

1
Out of stock

2

GASKET

810-13563-09-00

1
Out of stock

3

JOINT, CARBURETOR

(8A6-13565-00-00)

1
Out of stock

4

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

5

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

O-RING (11M)

93210-07540-00

1

$5.77

In stock

9

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

SILENCER, INTAKE 1

8A5-14431-00-00

1
Out of stock

13

PIPE

8A5-14419-00-00

1
Out of stock

14

SILENCER, INTAKE 2

8A5-14441-00-00

1
Out of stock

15

PIPE

(8A5-14465-00-00)

1
Out of stock

16

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

19

NUT, HEXAGON

95317-05600-00

—

$1.10

In stock

20

PIPE

(8A6-14466-00-00)

1
Out of stock

21

JOINT, AIR CLNR 1

8A5-14453-00-00

1
Out of stock

22

STAY 1

(8A5-14493-00-00)

1
Out of stock

23

STAY 2

(8A5-14494-00-00)

1
Out of stock

24

BOLT (661)

97013-06012-00

—

$4.71

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

—

$6.89

In stock

27

SPRING, TENSION

90506-06131-00

1
Out of stock

28

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

29

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

30

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

31

PIPE, SUCTION

8A5-14423-00-00

—
Out of stock

32

BAND

86M-13575-00-00

—

$16.45

In stock

33

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

34

COLLAR (90387-066J9)

90387-064W1-00

1
Out of stock
