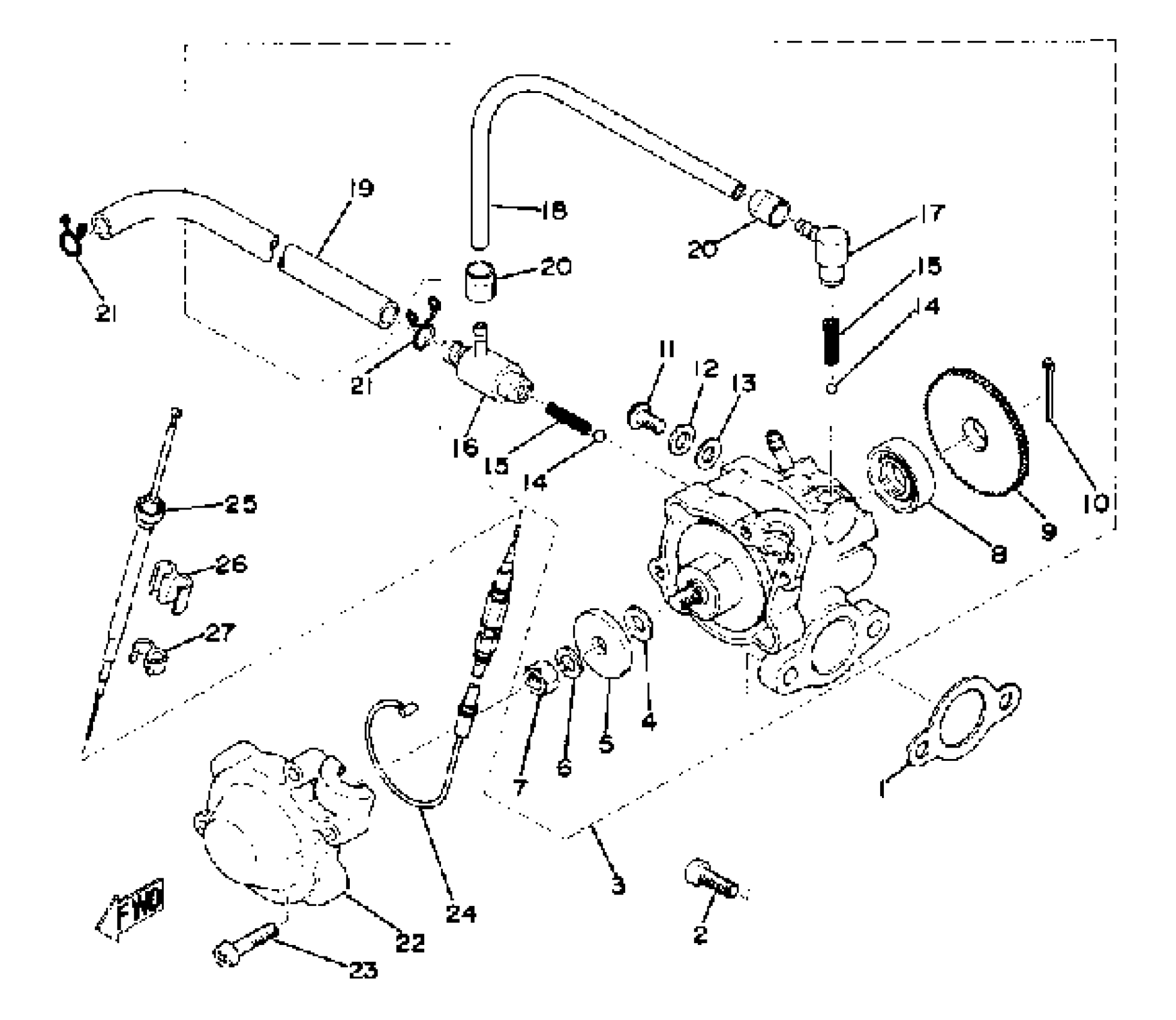

Find the part on the OIL Pump diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha EX440 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

OIL PUMP ASSEMBLY

(8E7-13101-01-00)

1
Out of stock

3

OIL PUMP ASSEMBLY

(8E8-13101-01-00)

1
Out of stock

4

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

4

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

4

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

5

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

OIL SEAL, SD-TYPE

(93102-10137-00)

1
Out of stock

9

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

10

. PIN, COTTER

91401-12018-00

1
Out of stock

11

. SCREW, PAN HEAD

90157-04009-00

1
Out of stock

12

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

13

GASKET 137131870000

90430-04004-00

—
Out of stock

14

BALL

93505-32002-00

—

$2.22

In stock

15

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

16

NOZZLE

(8A5-13552-00-00)

1
Out of stock

17

NOZZLE

353-13552-01-00

—
Out of stock

18

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

19

HOSE

(90445-09265-00)

1
Out of stock

20

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

21

CLIP (8L2)

90467-08017-00

—

$7.51

In stock

22

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

23

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

24

PUMP CABLE ASSEMBLY (8GG6-26320-00)

8A5-26320-02-00

1
Out of stock

25

BOOT, CABLE

(8A5-26342-00-00)

1
Out of stock

26

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

27

CLIP (867)

90468-15020-00

—
Out of stock
