1976 Yamaha EX440 Engine Bracket-Drive Guard Diagram

← All diagrams

Find the part on the Engine Bracket-Drive Guard diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

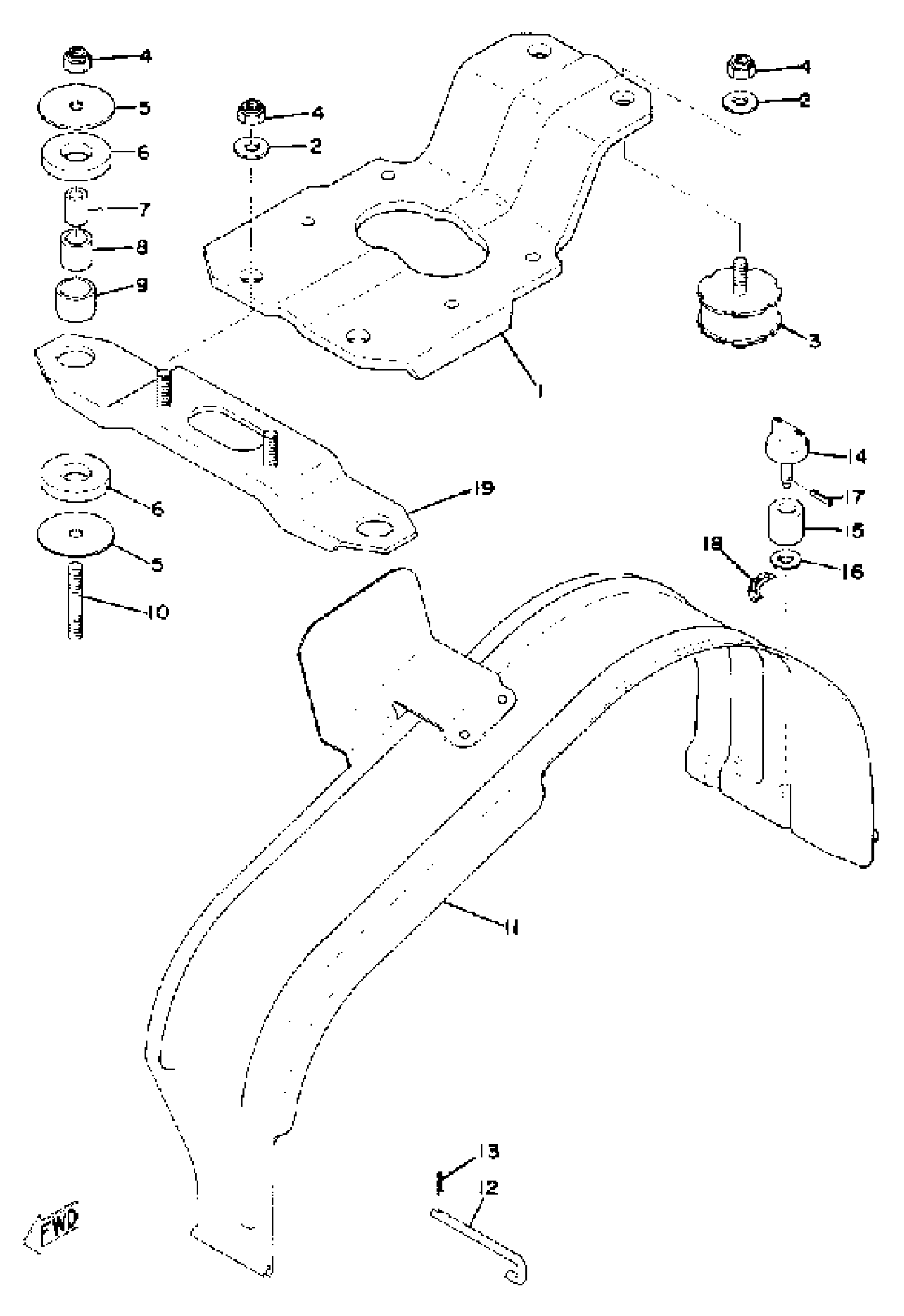

1976 Yamaha EX440 Engine Bracket-Drive Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8A5-21411-00-00

1
Out of stock

2

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

3

DAMPER 2

857-21486-00-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

5

WASHER (888)

90201-10151-00

—

$3.94

In stock

6

DAMPER, RUBBER 1

8V0-21485-00-00

1
Out of stock

7

COLLAR

90387-10514-00

1
Out of stock

8

BUSH, SPEC''L RUBBER

90385-15025-00

1
Out of stock

9

COLLAR

90387-21515-00

1
Out of stock

10

BOLT, STUD

95611-10345-00

1
Out of stock

11

GUARD, DRIVE

(8A5-77311-00-00)

1
Out of stock

12

PIN, SPEC''L SHAPE

90249-06027-00

1
Out of stock

13

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

14

KNOB

8A5-77324-00-00

1
Out of stock

15

BUSH, SPEC''L RUBBER

90385-08009-00

1
Out of stock

16

WASHER, PLATE

90201-08104-00

1
Out of stock

17

PIN, SPRING (91609-40025-00)

91609-40024-00

1
Out of stock

18

EMBLEM 11

(829-77366-00-00)

1
Out of stock

19

BRACKET, ENGINE 2

8A5-21419-00-00

1
Out of stock
