1976 Yamaha EX440 Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

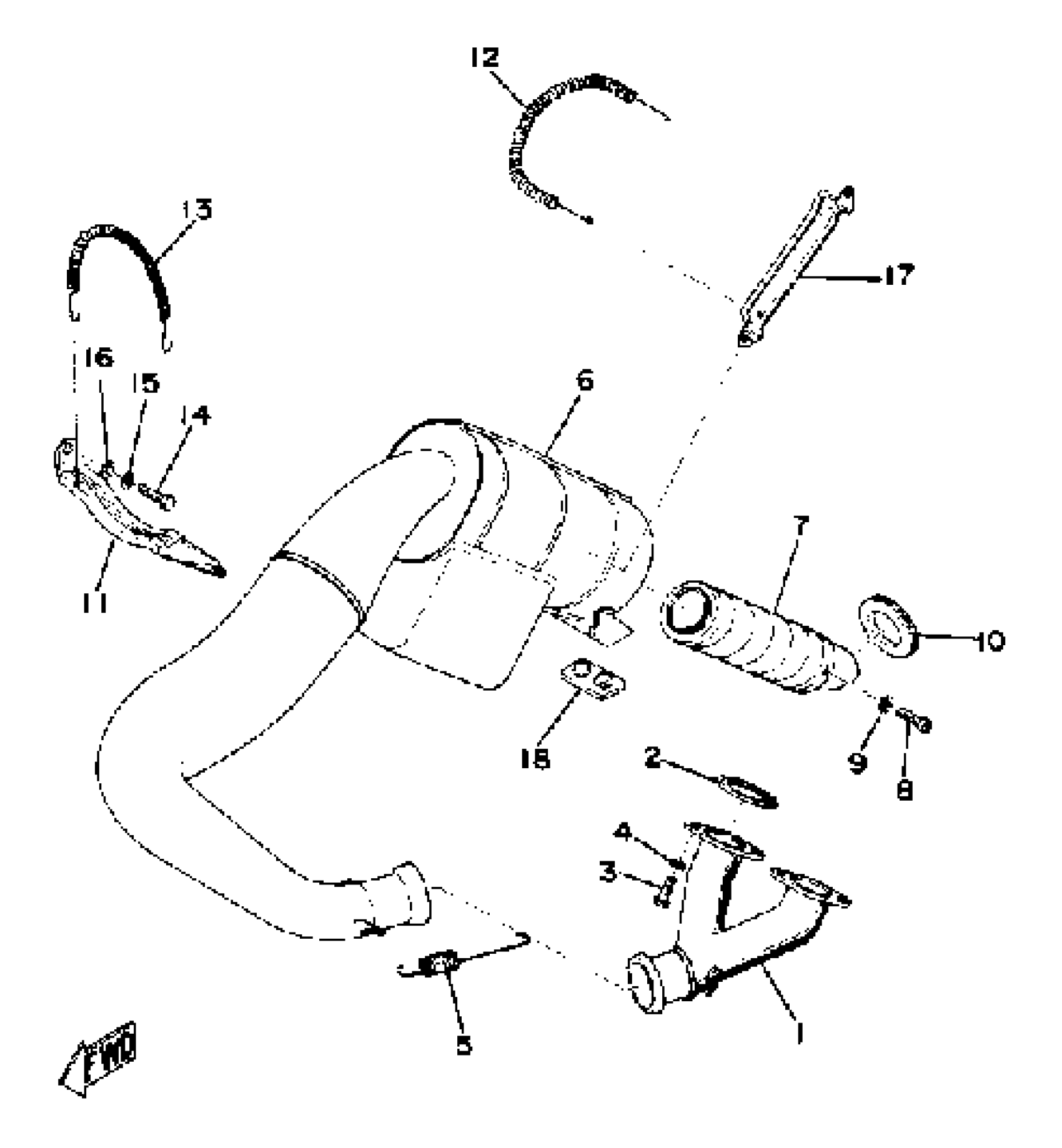

1976 Yamaha EX440 Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

8A5-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

89A-14613-00-00

1

$13.42

In stock

3

BOLT (682)

97013-08025-00

1

$6.80

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

6

MUFFLER ASSEMBLY L

(8G7-14710-00-00)

1
Out of stock

6

MUFFLER ASSEMBLY L

(8H6-14710-00-00)

1
Out of stock

7

SILENCER, EXHAUST

8A5-14753-00-00

1
Out of stock

8

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

PROTECTOR, MUFF 1 (865-14718-00)

865-14718-01-00

1
Out of stock

11

STAY, MUFFLER 1

8A5-14771-00-00

1
Out of stock

12

SPRING, TENSION

90506-16130-00

1
Out of stock

13

SPRING, TENSION (8BU1)

90506-16494-00

1

$6.22

In stock

14

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

17

STAY, MUFFLER 2

(8A5-14772-01-00)

1
Out of stock

18

PROTECTOR, MUFFLER 2

8A5-14728-02-00

1
Out of stock
