1976 Yamaha EX440 Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1976 Yamaha EX440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

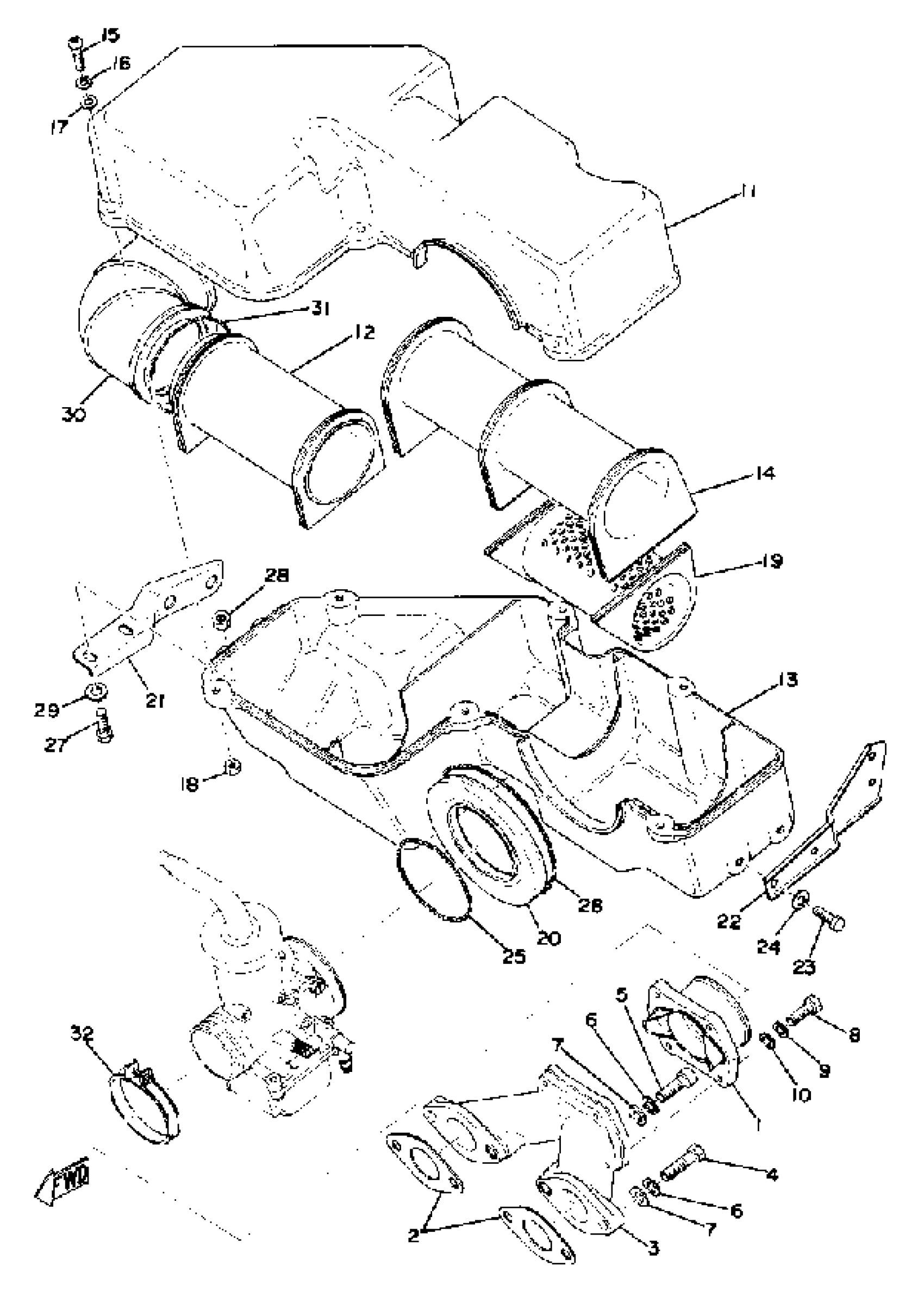

1976 Yamaha EX440 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

8A6-13555-00-00

1
Out of stock

2

GASKET

810-13563-09-00

1
Out of stock

3

JOINT, CARBURETOR

(8A6-13565-00-00)

1
Out of stock

4

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

5

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

SILENCER, INTAKE 1

8A5-14431-00-00

1
Out of stock

12

PIPE

8A5-14419-00-00

1
Out of stock

13

SILENCER, INTAKE 2

8A5-14441-00-00

1
Out of stock

14

PIPE

(8A5-14465-00-00)

1
Out of stock

15

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

18

NUT, HEXAGON

95317-05600-00

—

$1.10

In stock

19

PIPE

(8A6-14466-00-00)

1
Out of stock

20

JOINT, AIR CLNR 1

8A5-14453-00-00

1
Out of stock

21

STAY 1

(8A5-14493-00-00)

1
Out of stock

22

STAY 2

(8A5-14494-00-00)

1
Out of stock

23

BOLT (661)

97013-06012-00

—

$4.71

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

—

$6.89

In stock

26

SPRING, TENSION

90506-06131-00

1
Out of stock

27

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

28

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

29

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

30

PIPE, SUCTION

8A5-14423-00-00

—
Out of stock

31

—

$6.89

In stock

32

BAND

86M-13575-00-00

—

$16.45

In stock
