2017 Yamaha EX (EX1050CS) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2017 Yamaha EX (EX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

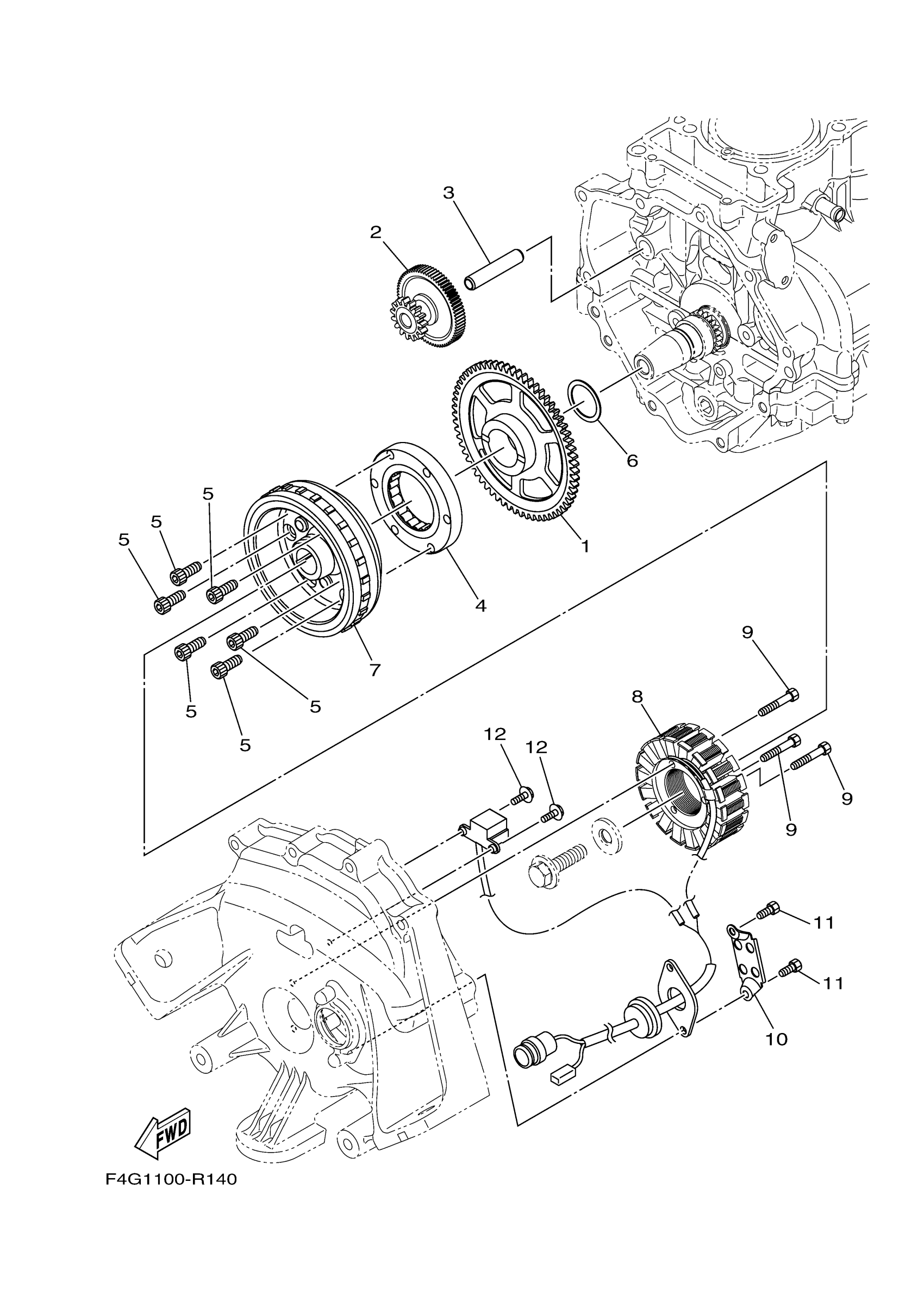

2017 Yamaha EX (EX1050CS) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR 3

8FA-15515-00-00

1

$148.89

In stock

2

GEAR, IDLER 1

2HC-15512-00-00

1

$98.66

In stock

3

SHAFT 1

8ES-15521-00-00

1

$7.40

In stock

4

STARTER ONE-WAY ASSY

6EY-15590-00-00

1

$125.49

In stock

5

BOLT, SOCKET

91317-08020-00

1

$2.34

In stock

6

WASHER, PLATE

90201-30013-00

1

$3.40

In stock

7

ROTOR ASSY

6EY-81450-01-00

1

$420.49

In stock

8

STATOR ASSY

6EY-81410-00-00

1

$361.10

In stock

9

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

10

CLAMP

60E-81328-00-00

1

$7.38

In stock

11

BOLT,SOCKET

91317-06014-00

1
Out of stock

12

BOLT, WITH WASHER

97513-05514-00

1

$3.69

In stock
← Electrical 3 Starting Motor →
