2017 Yamaha Ex (EX1050CS) Electrical 3 Diagram

← All diagrams

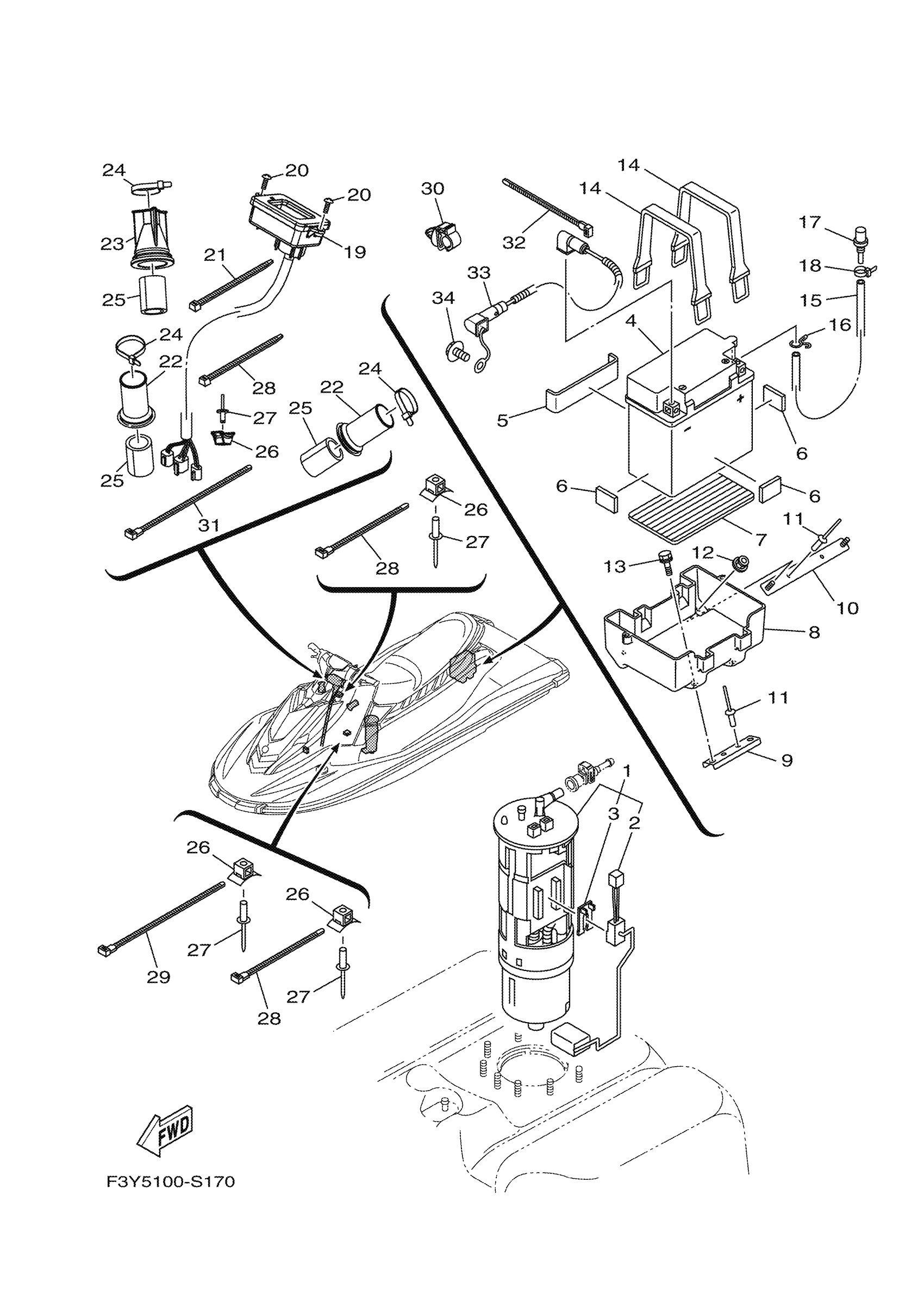

Find the part on the Electrical 3 diagram for your 2017 Yamaha Ex (EX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Ex (EX1050CS) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL PUMP COMP.

6S5-13907-05-00

1
Out of stock

2

FUEL SENDER ASSY SET

99999-04571-00

1
Out of stock

3

DAMPER, STOPPER

60E-82556-10-00

1
Out of stock

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1
Out of stock

5

PAD, BATTERY

F1K-U8221-00-00

1
Out of stock

6

PAD, BATTERY

EU0-U8221-31-00

1
Out of stock

7

PAD, BATTERY

F1S-U8221-00-00

1
Out of stock

8

CASE, BATTERY

F2S-U8211-00-00

1
Out of stock

9

PLATE, BASE 2

F2S-U8592-00-00

1
Out of stock

10

PLATE, BASE 3

F2S-U8593-00-00

1
Out of stock

11

RIVET (EU0)

90267-48938-00

1
Out of stock

12

NUT, LOCK

F2N-U142L-00-00

1
Out of stock

13

BOLT, WITH WASHER

90119-06820-00

1
Out of stock

14

BAND,BATTERY 1

EU0-U821D-00-00

1
Out of stock

15

HOSE, AIR VENT

F0D-U785G-11-00

1
Out of stock

16

CLIP

90467-089U1-00

1
Out of stock

17

NIPPLE

GJ3-6215F-00-00

1
Out of stock

18

CLAMP

90465-10098-00

1
Out of stock

19

METER ASSY

F3Y-U820A-00-00

1
Out of stock

20

SCREW

F2S-U7823-01-00

1
Out of stock

21

CLAMP

90464-32801-00

1
Out of stock

22

GROMMET

GU2-6822E-01-00

1
Out of stock

23

GROMMET

F3J-U822E-01-00

1
Out of stock

24

CLAMP

90464-32801-00

1
Out of stock

25

PACKING, HOSE 2

GJ1-U7578-22-00

—
Out of stock

26

BASE, CLAMP

F1W-U828M-00-00

1
Out of stock

27

RIVET, BLIND

90267-489U6-00

1
Out of stock

28

CLAMP

90464-32801-00

1
Out of stock

29

BAND

90601-200U2-00

1
Out of stock

30

CLAMP

90464-10008-00

—
Out of stock

31

BAND

90601-200U2-00

1
Out of stock

32

CLAMP

90464-32801-00

1
Out of stock

33

WIRE, MINUS LEAD

6GA-82116-00-00

1
Out of stock

34

BOLT, WITH WASHER

97513-08514-00

1
Out of stock
