Find the part on the Electrical 2 diagram for your 2017 Yamaha Ex (EX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

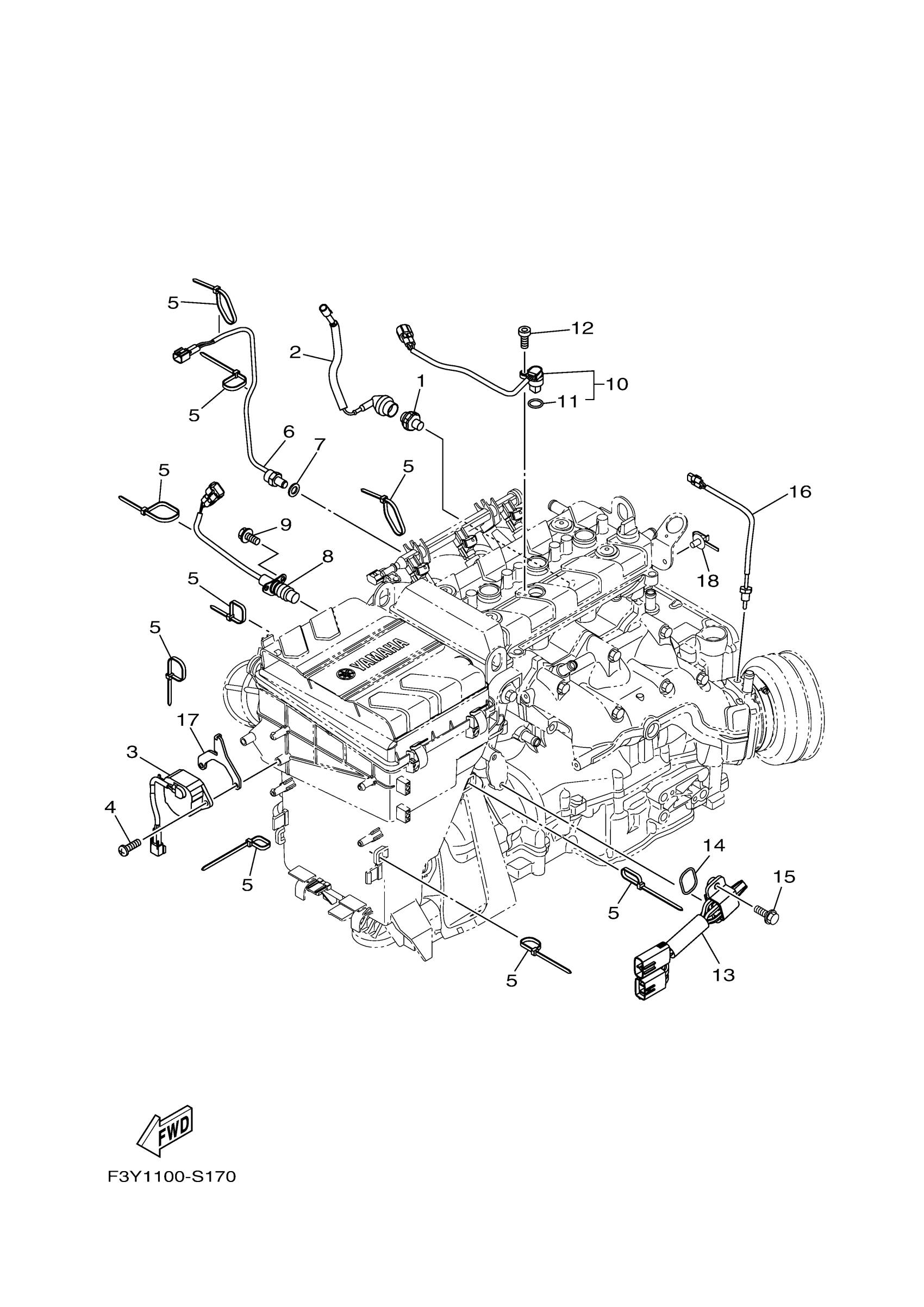

2017 Yamaha Ex (EX1050CS) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

1

$30.45

In stock

2

LEAD WIRE ASSY

60E-81315-01-00

1

$37.41

In stock

3

SWITCH ASSY

60E-8259E-00-00

1

$186.99

In stock

4

SCREW, TAPPING

97780-60520-00

1

$4.15

In stock

5

CLAMP

90465-13M18-00

1

$1.59

In stock

6

THERMOSENSOR ASSY

61A-85790-01-00

1

$121.46

In stock

7

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

8

THERMO SWITCH ASSY

6CR-82560-00-00

1

$76.81

In stock

9

1

$2.46

In stock

10

SENSOR, CAM POSITI

2S3-85896-02-00

1

$86.60

In stock

11

O-RING

4D9-81168-00-00

1

$3.71

In stock

12

BOLT,SOCKET

91380-06016-00

—

$5.46

In stock

13

EARTH PLATE COMP.

6CS-8273J-11-00

1

$182.99

In stock

14

O-RING (341)

93210-32172-00

1

$5.78

In stock

15

BOLT, WITH WASHER

90119-06MA3-00

1

$2.77

In stock

16

THERMOSENSOR ASSY

6DE-85790-00-00

1

$95.82

In stock

17

PLATE

6EY-83618-00-00

1

$7.38

In stock

18

CLAMP

90464-20005-00

1
Out of stock
