2017 Yamaha EX (EX1050CS) Engine Hatch 2 Diagram

← All diagrams

Find the part on the Engine Hatch 2 diagram for your 2017 Yamaha EX (EX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

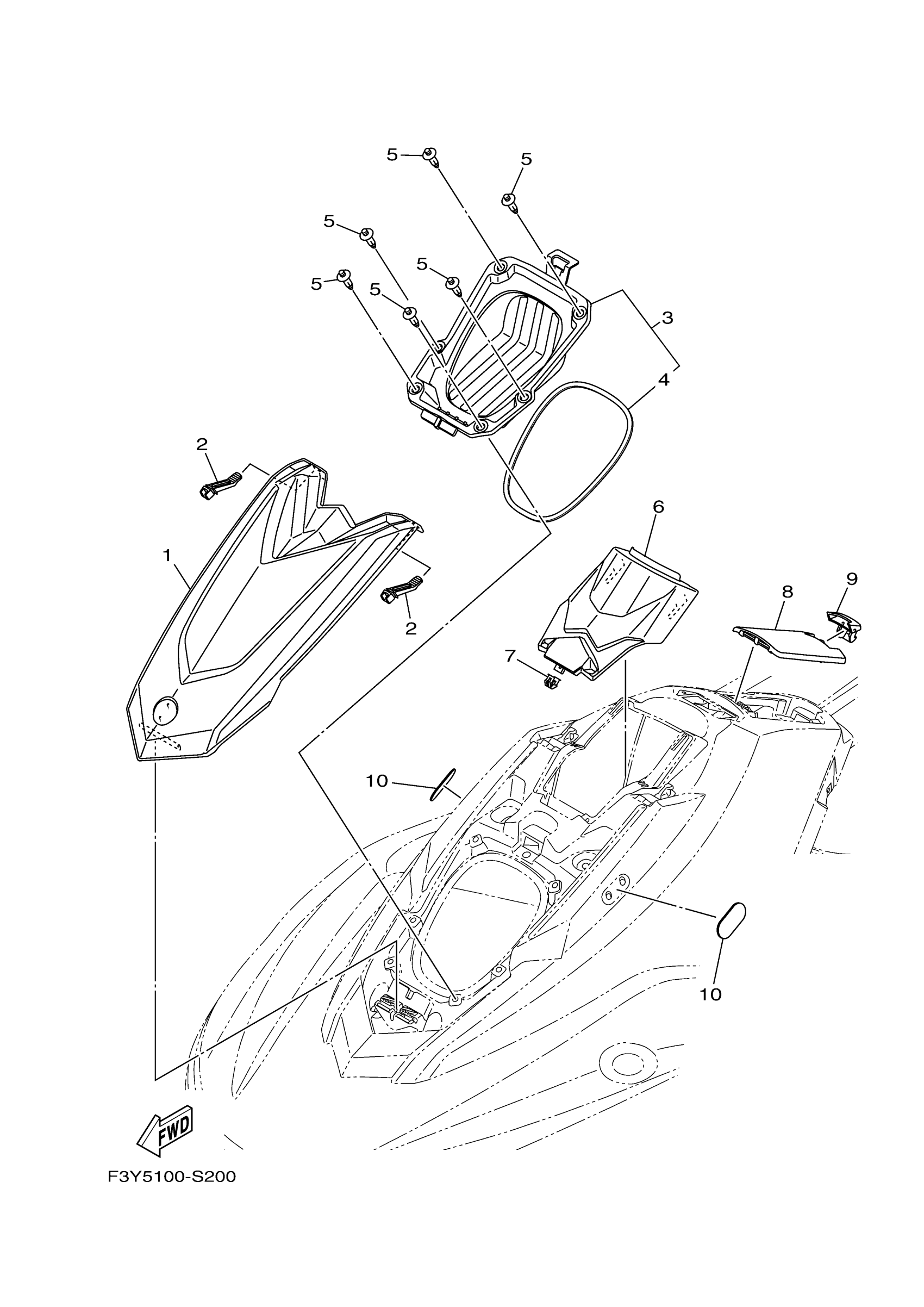

2017 Yamaha EX (EX1050CS) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID, ENGINE ROOM

F3Y-U517B-10-00

1

$104.60

In stock

2

LOCK 1

F3Y-U264L-00-00

1

$6.23

In stock

3

BOWLOCKER ASSY

F3Y-U475A-00-00

1

$21.52

In stock

4

. PACKING 1

F3Y-U2663-00-00

1

$7.08

In stock

5

RIVET

90269-08801-00

1

$1.31

In stock

6

COVER, FRONT

F3Y-U513M-00-00

1

$12.29

In stock

7

CLIP

F3Y-U153K-00-00

1

$1.46

In stock

8

LID HATCH

F3Y-U517H-00-00

1

$9.22

In stock

9

LOCK

F3Y-U2875-00-00

1

$3.77

In stock

10

PLUG 2

F3Y-U2724-00-00

1

$23.83

In stock
