2017 Yamaha Ex (EX1050CS) Engine Hatch 1 Diagram

← All diagrams

Find the part on the Engine Hatch 1 diagram for your 2017 Yamaha Ex (EX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

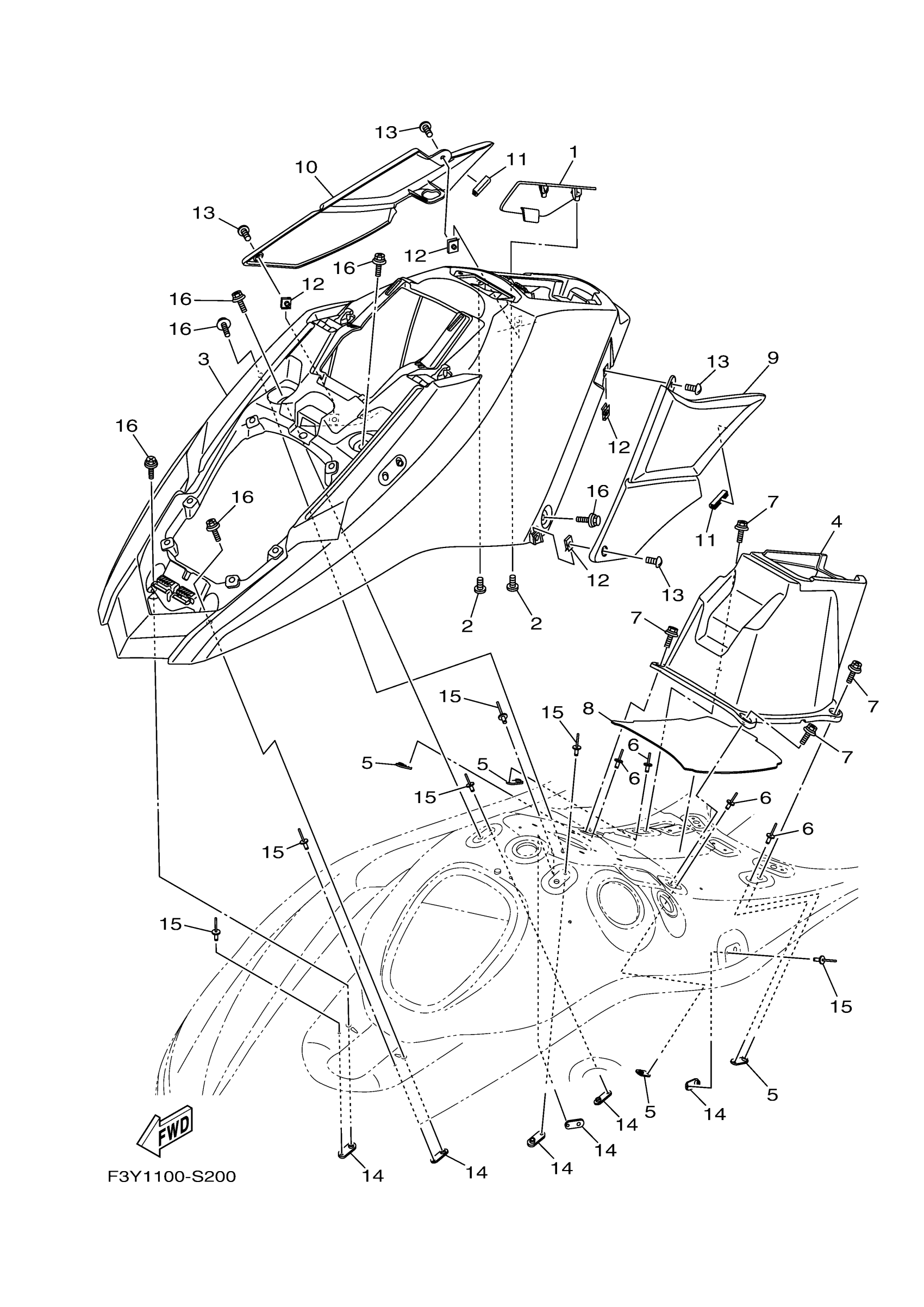

2017 Yamaha Ex (EX1050CS) Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL

F3Y-U2723-00-00

1

$5.54

In stock

2

SCREW

F2S-U13C1-00-00

1

$2.69

In stock

3

COVER, ENGINE HATCH

F3Y-U516N-00-00

1

$135.37

In stock

4

BOX GLOVE

F3Y-U516P-00-00

1

$19.98

In stock

5

PLATE, FIX

F2X-U5175-00-00

1

$2.00

In stock

6

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

7

BOLT, WITH WASHER

90119-06878-00

1

$3.85

In stock

8

MAT 1

F3Y-U759B-00-00

1

$14.60

In stock

9

PAD, KNEE

F3Y-U353B-00-00

1

$16.91

In stock

10

PAD, KNEE

F3Y-U353B-10-00

1

$16.91

In stock

11

TRIM, 1

F3Y-U828H-00-00

1

$5.54

In stock

12

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

13

SCREW

F2S-U7823-01-00

1

$2.38

In stock

14

PLATE, FIX

F2X-U5175-00-00

1

$2.00

In stock

15

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

16

BOLT, WITH WASHER

90119-06820-00

1

$3.92

In stock
