1973 Yamaha EW643B OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

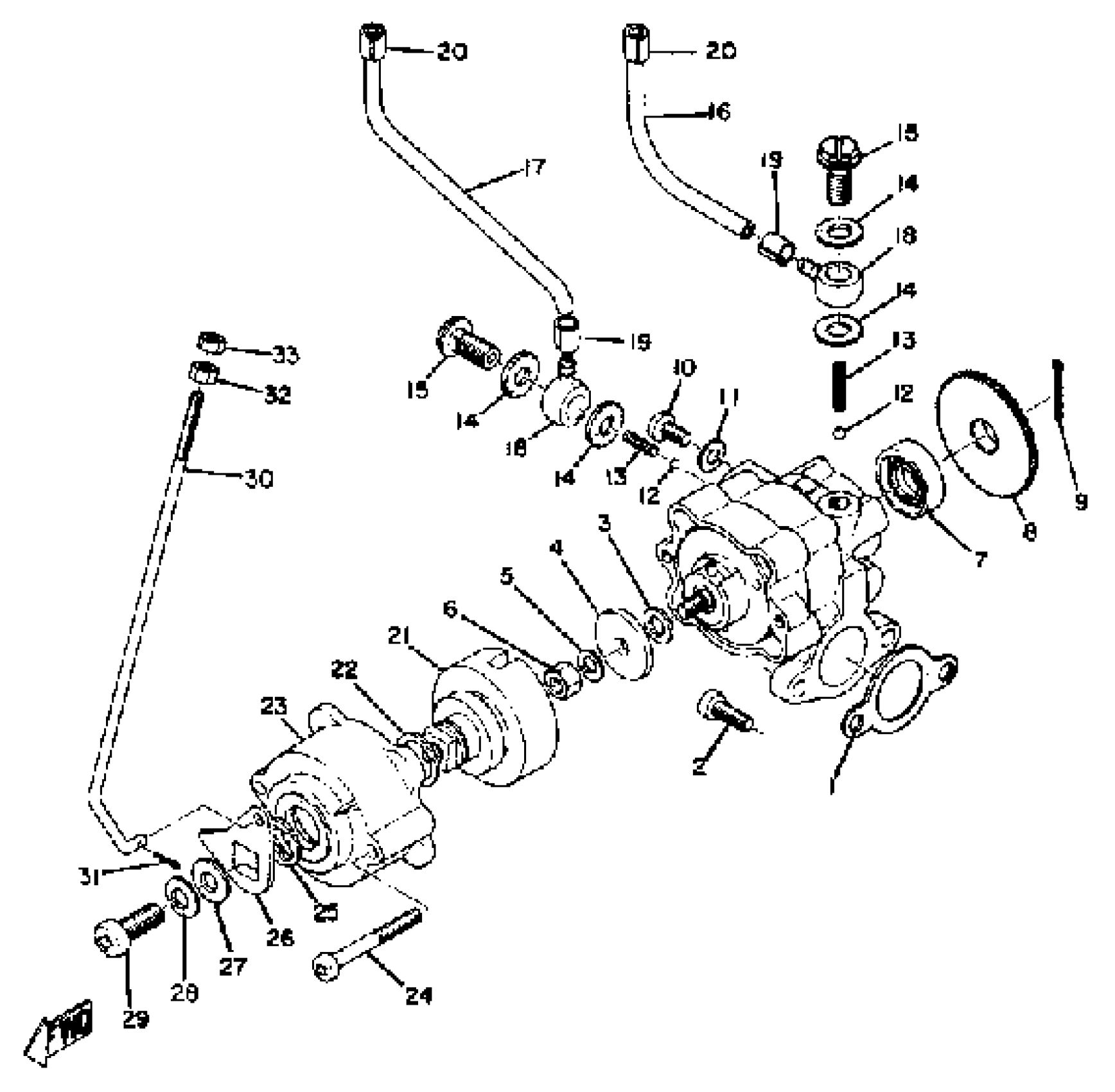

1973 Yamaha EW643B OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

3

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

4

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

8

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

9

. PIN, COTTER

91401-12018-00

1
Out of stock

10

SCREW, BIND

98980-04008-00

1

$3.26

In stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

BALL

93505-32002-00

1

$2.22

In stock

13

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

14

GASKET(3FP)

90430-06224-00

1

$4.32

In stock

15

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

16

. HOSE (3-90) (807-13161-01)

90445-05020-00

1
Out of stock

17

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

18

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

19

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

20

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

21

SHAFT, PUMP CONTROL

(812-13153-00-00)

1
Out of stock

22

SHIM

(812-13147-00-00)

1
Out of stock

23

COVER, AJST PULLEY

(812-13146-00-00)

1
Out of stock

24

SCREW, PAN

98507-04030-00

1

$1.51

In stock

25

CIRCLIP(J51)

99080-09600-00

—

$1.88

In stock

26

LEVER, PUMP CONTROL

(852-13156-00-00)

1
Out of stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

SCREW, PAN

98507-06014-00

—

$6.18

In stock

30

ROD, PUMP CONTROL

(852-13157-00-00)

1
Out of stock

31

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

32

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock

33

NUT, SELF-LOCKING (838-13139-00)

90185-03007-00

1
Out of stock
