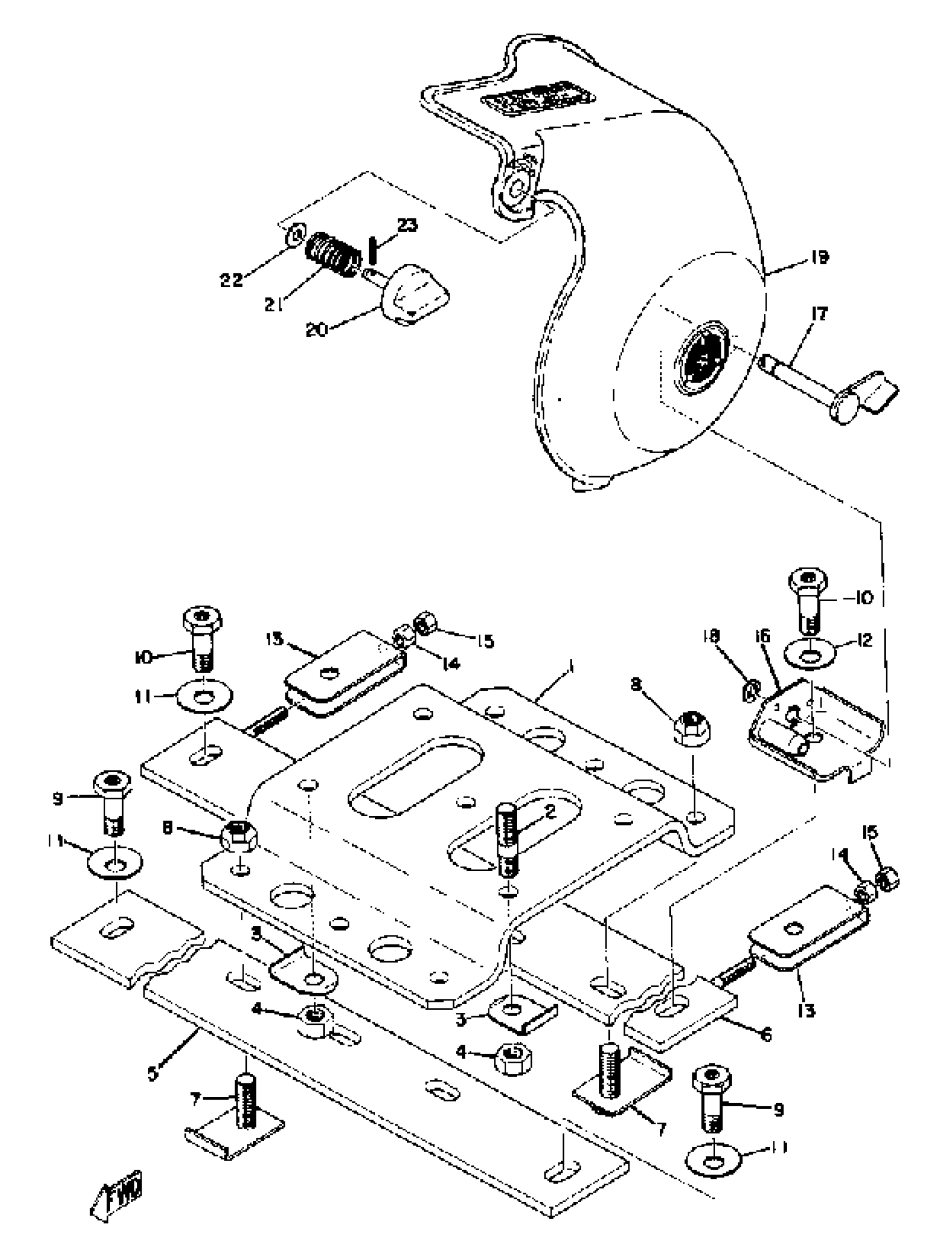

1973 Yamaha EW643B Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha EW643B Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(834-21411-00-00)

1
Out of stock

2

BOLT, STUD

(90116-10084-00)

1
Out of stock

3

WASHER, LOCK

(90215-10076-00)

1
Out of stock

4

NUT(3BM)

95314-10600-00

1

$1.74

In stock

5

BRACKET, ENGINE 2

(834-21419-00-00)

1
Out of stock

6

BRACKET, ENGINE 3

(834-21429-00-00)

1
Out of stock

7

BOLT, ENG MNTNG 4

(834-21484-00-00)

1
Out of stock

8

NUT, SELF-LOCKING

90185-10030-00

1
Out of stock

9

BOLT

(90101-10057-00)

1
Out of stock

10

BOLT, DOME HEAD

(90106-10015-00)

1
Out of stock

11

WASHER, CONICAL SPR

90208-10013-00

1
Out of stock

12

WASHER 823214910000

90208-10012-00

1

$13.20

In stock

13

PLATE, ENGINE ADJUSTING

(834-21475-00-00)

1
Out of stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

NUT(650)

95380-06700-00

1

$6.17

In stock

16

BRACKET 1

(821-77315-00-00)

1
Out of stock

17

ARM, FITTING

806-77314-00-00

1
Out of stock

18

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

19

GUARD, DRIVE

(810-77311-01-00)

1
Out of stock

20

KNOB

(806-77324-00-00)

1
Out of stock

21

SPRING 1

806-77325-00-00

1
Out of stock

22

WASHER, PLATE

90201-06095-00

—

$6.31

In stock

23

PIN, SPRING

91690-25016-00

—
Out of stock
