1973 Yamaha EW643B Engine Cowl Diagram

← All diagrams

Find the part on the Engine Cowl diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

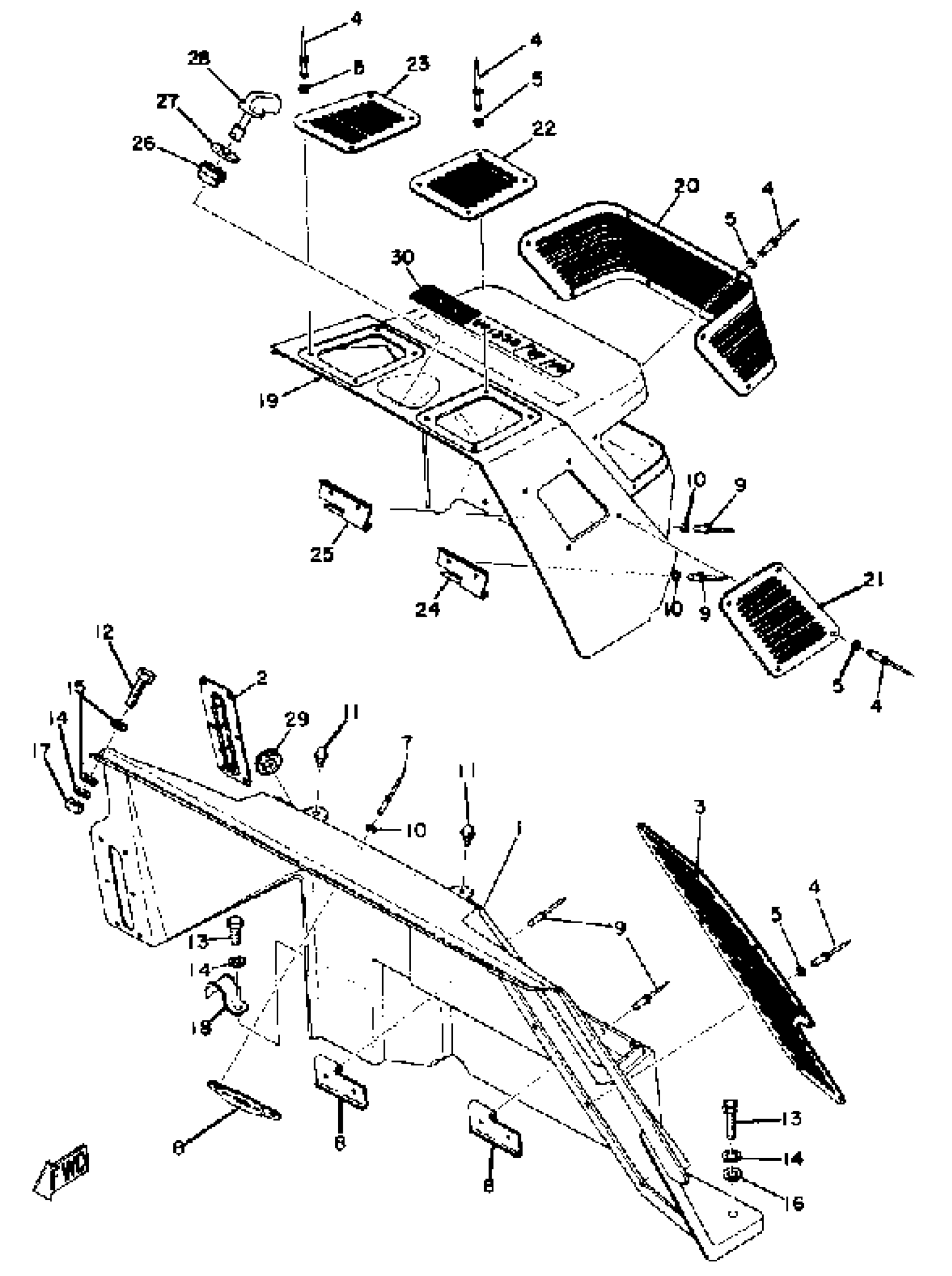

1973 Yamaha EW643B Engine Cowl Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

3

LOUVER 1

(834-77441-00-00)

1
Out of stock

4

RIVET (813)

90267-32070-00

1

$2.25

In stock

5

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

6

BRACKET 4

(807-77424-00-00)

1
Out of stock

7

RIVET, BLIND

(90267-40028-00)

1
Out of stock

8

HINGE 3

811-77478-00-00

1
Out of stock

9

RIVET, BLIND

(90267-40027-00)

1
Out of stock

10

WASHER

90201-04015-00

—
Out of stock

11

DAMPER 1

(811-77461-00-00)

1
Out of stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

13

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

14

WASHER, SPRING

92907-06100-00

1
Out of stock

15

WASHER, PLATE (4L0)

90201-062A8-00

1

$6.23

In stock

16

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

17

NUT(6TA)

95317-06600-00

1

$2.69

In stock

18

CLAMP

90462-10007-00

1
Out of stock

20

LOUVER 2

(852-77442-00-00)

1
Out of stock

21

LOUVER 3

(834-77443-00-00)

1
Out of stock

22

LOUVER 4

(834-77444-00-00)

1
Out of stock

24

HINGE 1

(811-77475-00-00)

1
Out of stock

25

HINGE 2

(811-77476-00-00)

1
Out of stock

26

BUSHING

(807-77446-00-00)

1
Out of stock

27

WASHER 6154275100

90201-08103-00

—

$5.51

In stock

28

FASTNER

(811-42753-00-00)

1
Out of stock

29

GROMMET

(102-82598-00-00)

1
Out of stock

30

EMBLEM 1

(852-77351-00-00)

1
Out of stock
