1972 Yamaha EW643 Engine Cowl Diagram

← All diagrams

Find the part on the Engine Cowl diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

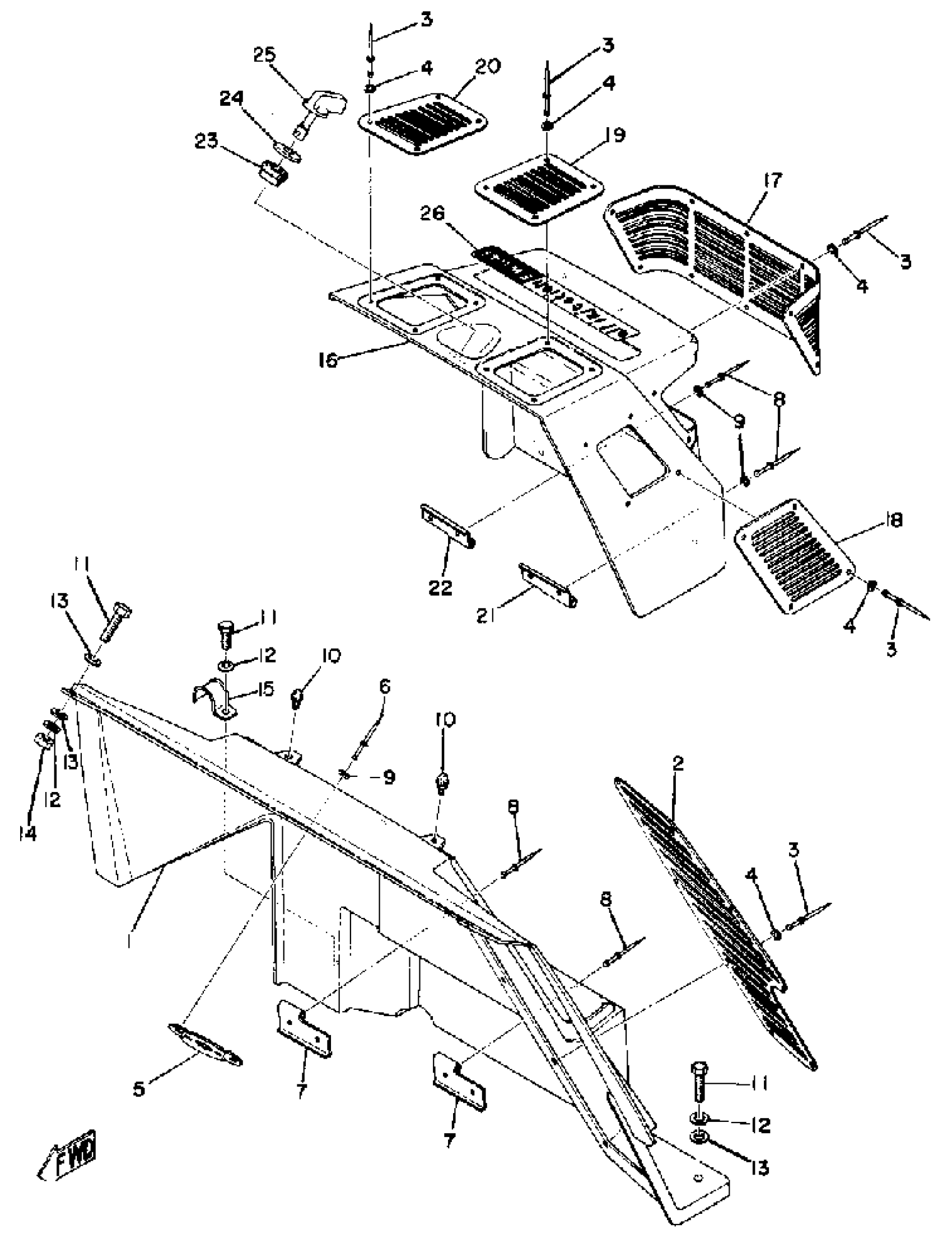

1972 Yamaha EW643 Engine Cowl Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL, ENGINE

(834-77411-00-00)

1
Out of stock

2

LOUVER 1

(834-77441-00-00)

1
Out of stock

3

RIVET (813)

90267-32070-00

1

$2.25

In stock

4

WASHER, PLATE 8077743700

90201-03313-00

1

$5.20

In stock

5

BRACKET 4

(807-77424-00-00)

1
Out of stock

6

RIVET, BLIND

(90267-40028-00)

1
Out of stock

7

HINGE 3

811-77478-00-00

1
Out of stock

8

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

9

WASHER

90201-04015-00

—
Out of stock

10

DAMPER 1

(811-77461-00-00)

1
Out of stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER, SPRING

92907-06100-00

1
Out of stock

13

WASHER, PLATE (4L0)

90201-062A8-00

1

$6.23

In stock

14

NUT(6TA)

95317-06600-00

1

$2.69

In stock

15

CLAMP

90462-10007-00

1
Out of stock

16

LID, ENGINE COWL

(834-77425-00-00)

1
Out of stock

17

LOUVER 2

(834-77442-00-00)

1
Out of stock

18

LOUVER 3

(834-77443-00-00)

1
Out of stock

19

LOUVER 4

(834-77444-00-00)

1
Out of stock

20

LOUVER, LID 4

(834-77447-00-00)

1
Out of stock

21

HINGE 1

(811-77475-00-00)

1
Out of stock

22

HINGE 2

(811-77476-00-00)

1
Out of stock

23

BUSHING

(807-77446-00-00)

1
Out of stock

24

WASHER 6154275100

90201-08103-00

—

$5.51

In stock

25

FASTNER

(811-42753-00-00)

1
Out of stock

26

EMBLEM 1

(834-77351-00-00)

1
Out of stock
