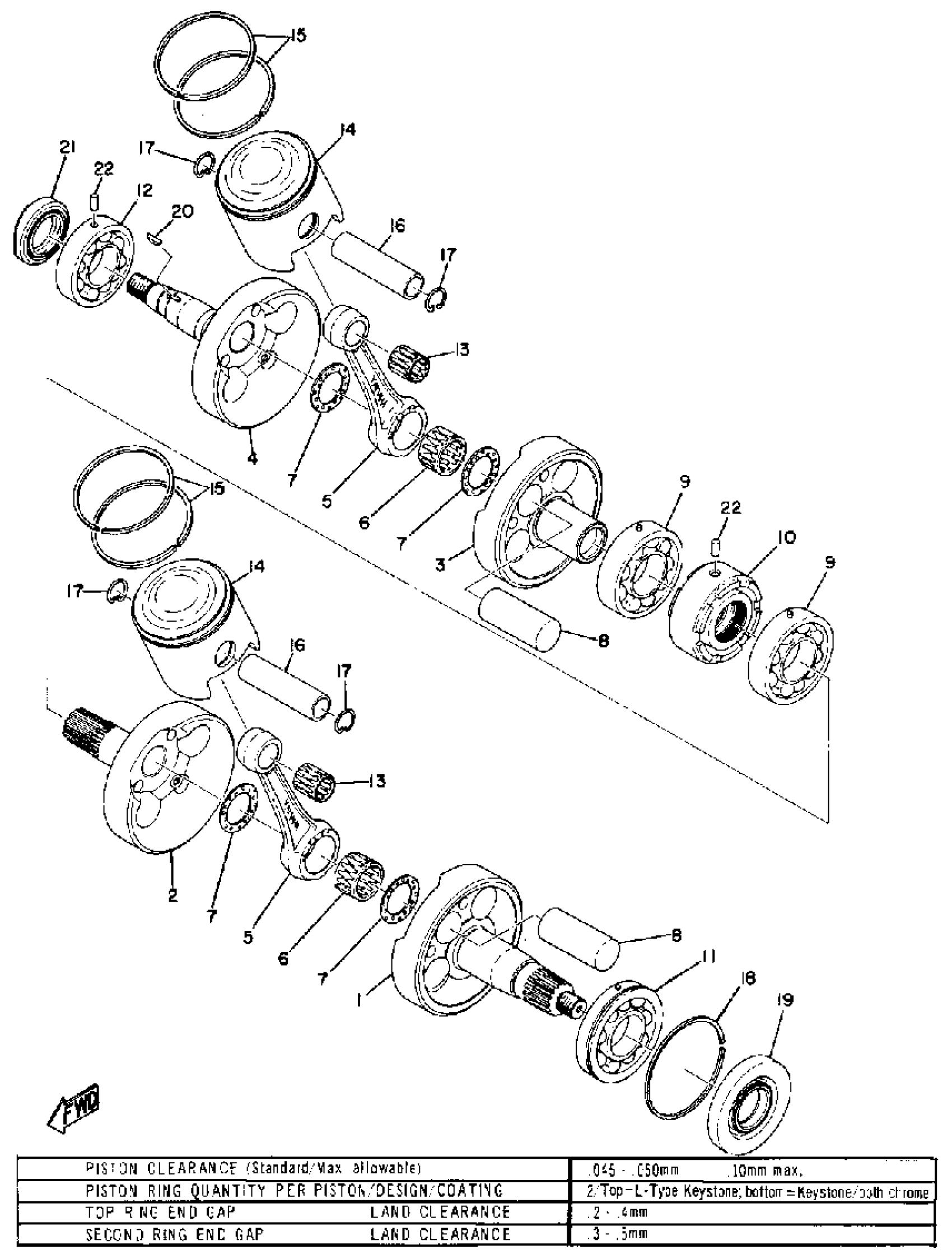

Find the part on the Crank - Piston diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW643 Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(834-11400-00-00)

1
Out of stock

1

CRANK 1

(834-11412-00-00)

1
Out of stock

2

CRANK 2

(834-11422-00-00)

1
Out of stock

3

CRANK 3

(834-11432-00-00)

1
Out of stock

4

CRANK 4

(834-11442-00-00)

1
Out of stock

5

. ROD, CONNECTING

431-11651-00-00

1
Out of stock

6

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

7

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

8

PIN, CRANK 1

(834-11681-00-00)

1
Out of stock

9

. BEARING (B6207 C3 SPECIAL)

93306-20701-00

1
Out of stock

10

SEAL, LABYRINTH 1

(834-11515-00-00)

1
Out of stock

11

BEARING

(93306-30701-00)

1
Out of stock

12

BEARING(8V0)

93306-20633-00

1

$67.35

In stock

13

1

$32.87

In stock

14

PISTON STD (76.46MM STD)

834-11631-01-46

1
Out of stock

14

PISTON 1 O/S 0.25 (76.75MM 1ST O.S)

834-11635-01-00

1
Out of stock

14

PISTON 2 O/S 0.50

(834-11636-01-00)

1
Out of stock

15

PISTON RINGSET STD

(834-11610-00-00)

1
Out of stock

15

PISTON RINGSET 1ST (1ST O.S)

834-11610-10-00

1
Out of stock

15

PISTON RINGSET 2ND (2ND O.S)

834-11610-20-00

1
Out of stock

16

PIN, PISTON

275-11633-00-00

—

$30.66

In stock

17

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

18

CIRCLIP (834)

93440-80023-00

—
Out of stock

19

OIL SEAL, SW-TYPE

(93103-35068-00)

1
Out of stock

20

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

21

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

22

PIN,DOWEL (168)

93604-12037-00

—
Out of stock
