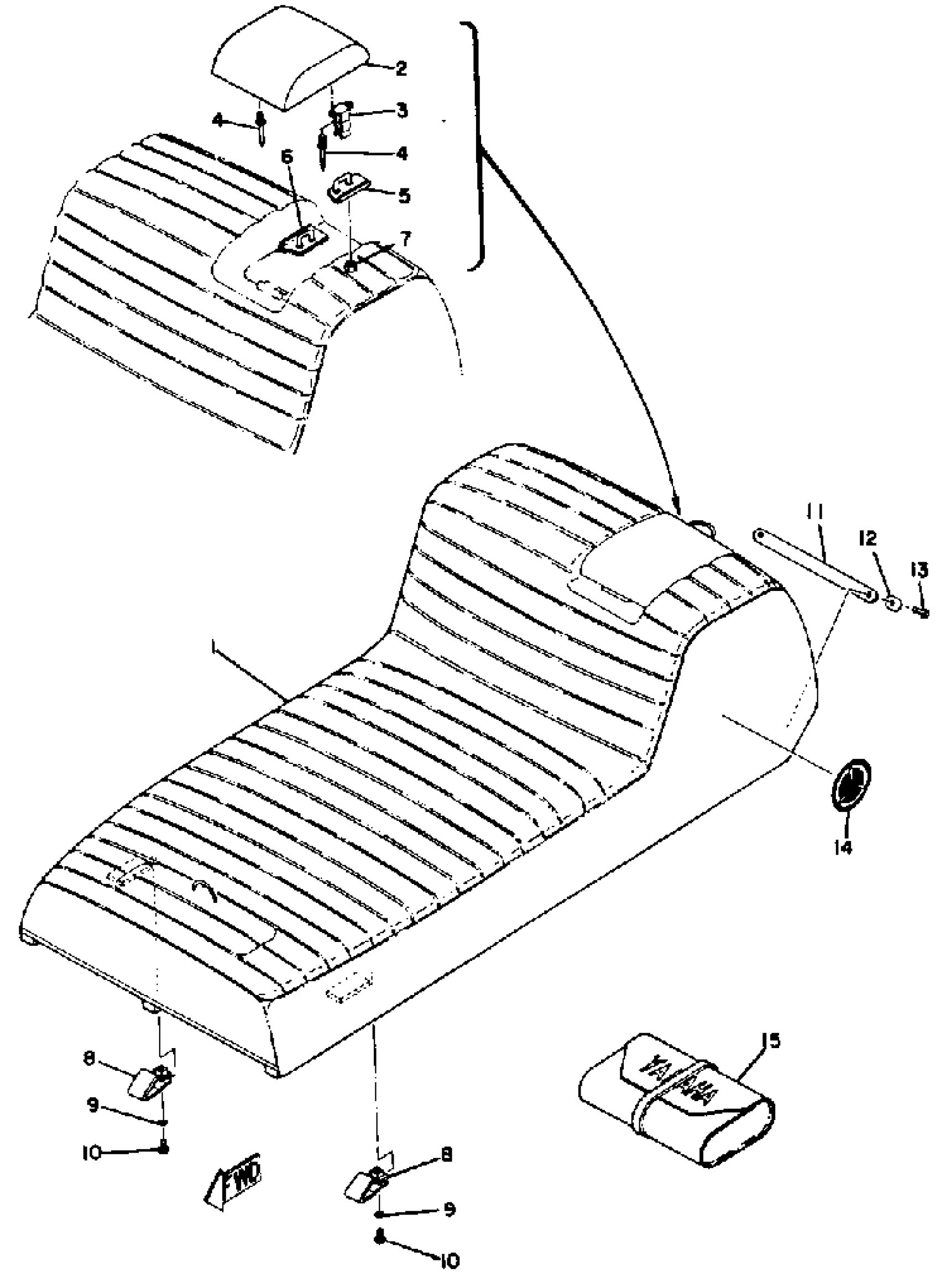

Yamaha EW433B 1972 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

(826-24730-00-00)

Unavailable

1

COVER, DOUBLE SEAT

(826-24731-00-00)

Unavailable

2

LID, DOUBLE SEAT

(822-24765-00-00)

Unavailable

3

SPRING, SEAT BACK

(821-24794-00-00)

Unavailable

4

RIVET, BLIND

(90267-32016-00)

Unavailable

5

PIN

(821-24793-00-00)

Unavailable

6

PIN

(821-24784-00-00)

Unavailable

7

NUT(650)

95380-06700-00

$5.75

8

PLATE, SEAT FITTING

(809-24744-00-00)

Unavailable

9

WASHER, SPRING

92995-06100-00

$2.95

10

SCREW, PAN

98507-06014-00

$5.76

11

WASHER, SEAT

(813-24746-00-00)

Unavailable

12

WASHER, LOCK

(90215-07064-00)

Unavailable

13

BOLT, HEXAGON

97017-06020-00

$2.37

14

EMBLEM 2

821-77352-00-00

Unavailable

15

TOOL KIT

(811-28100-00-00)

Unavailable
