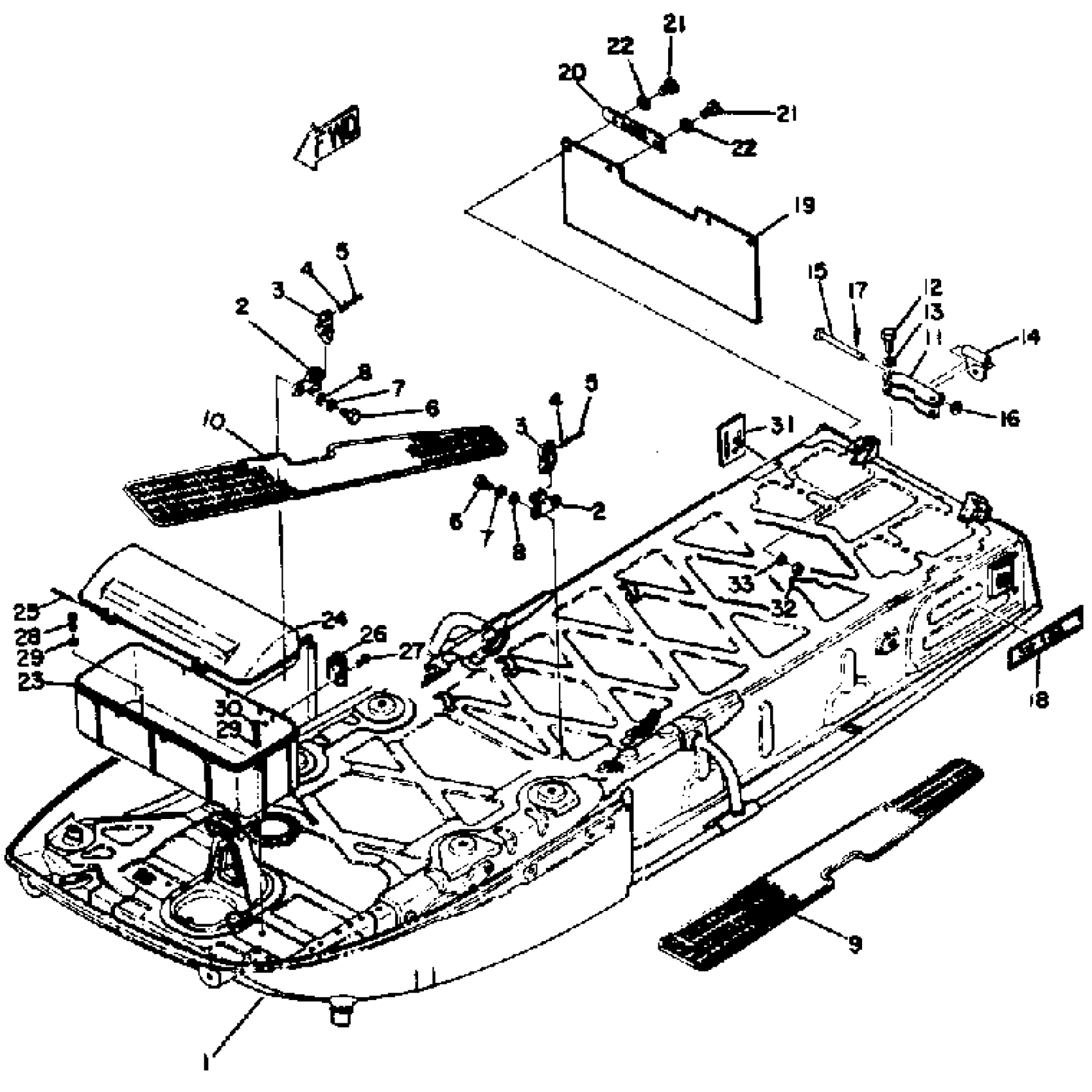

1972 Yamaha EW433B Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1972 Yamaha EW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW433B Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

807-77170-00-00

1
Out of stock

1

FRAME

(826-21910-00-00)

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

9

COVER, FOOTREST

(806-27413-00-00)

1
Out of stock

10

COVER, FOOTREST

(806-27423-00-00)

1
Out of stock

11

BRACKET, HITCH 2

(802-77592-00-00)

1
Out of stock

12

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

12

BOLT (682)

97095-06040-00

1

$2.36

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

15

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

16

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

17

PIN, COTTER

91490-25020-00

—

$2.94

In stock

18

EMBLEM 4

827-77354-00-00

1
Out of stock

19

FLAP

(807-77595-02-00)

1
Out of stock

20

PLATE, FLAP 1

(807-77593-00-00)

1
Out of stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

LUGGAGE BOX

(827-77391-00-00)

1
Out of stock

24

COVER, LUGGAGE BOX

(822-77392-00-00)

1
Out of stock

25

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

26

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

27

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

28

SCREW, PAN

98507-06014-00

—

$6.18

In stock

29

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

30

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

31

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
