2001 Yamaha ET410TRF 8BY8 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2001 Yamaha ET410TRF 8BY8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

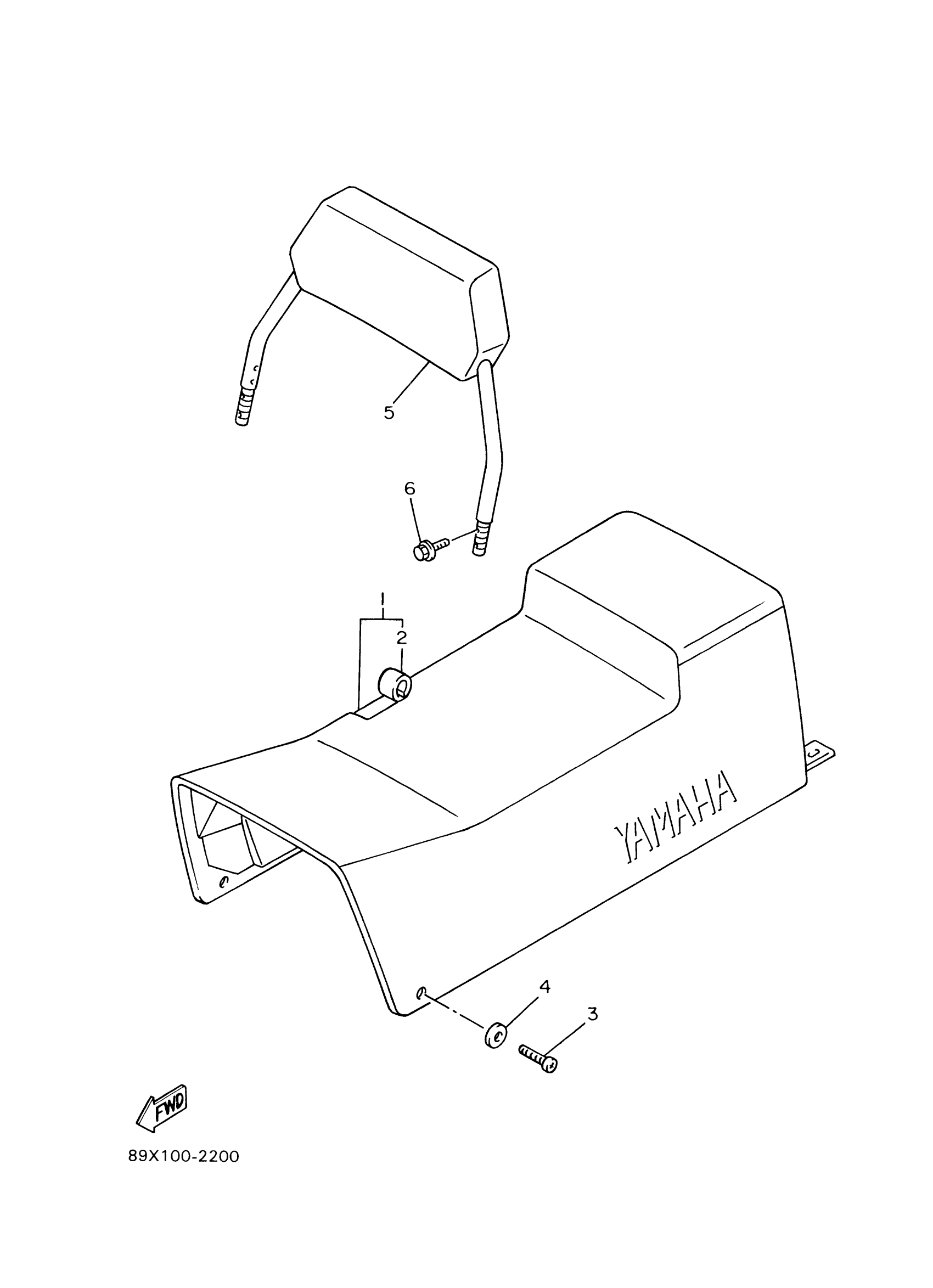

2001 Yamaha ET410TRF 8BY8 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSY

89X-24730-01-00

1
Out of stock

2

COVER, SEAT

89X-24731-01-00

1
Out of stock

3

SCREW, BINDING

98907-06020-00

1

$6.18

In stock

4

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

5

SEAT BACK ASSY

82U-24790-00-00

—

$264.26

In stock

6

BOLT

90109-06757-00

1
Out of stock
