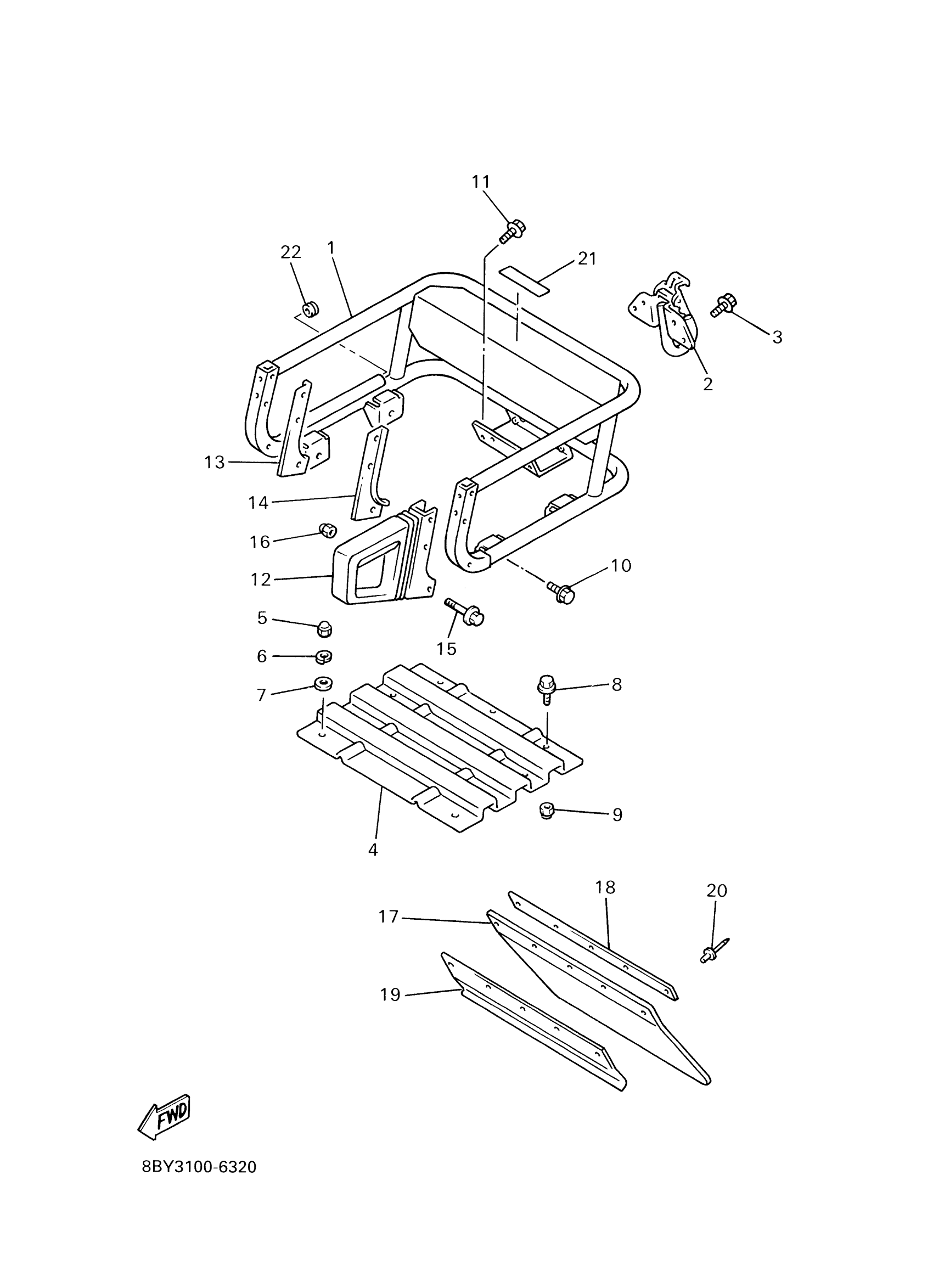

Find the part on the Bumper diagram for your 2001 Yamaha ET410TRF 8BY8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha ET410TRF 8BY8 Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, REAR 1

89X-77541-00-00

1
Out of stock

2

BRACKET, HITCH 2

84R-77592-00-00

1

$65.05

In stock

3

BOLT, FLANGE(8AB)

95817-08020-00

1

$7.00

In stock

4

PROTECTOR 4

89X-77554-00-00

1
Out of stock

5

NUT, CAP

95307-08800-00

1
Out of stock

6

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

7

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

8

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

9

NUT, NYLON

95717-08300-00

1

$2.57

In stock

10

BOLT, FLANGE

95817-08014-00

1

$1.94

In stock

11

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

12

GRIP, ASSIST 1

8X0-77571-00-00

—

$170.71

In stock

13

WASHER 1

8X0-77525-00-00

1
Out of stock

14

WASHER 2

8X0-77526-00-00

1
Out of stock

15

BOLT, FLANGE

95817-08040-00

1

$5.43

In stock

16

NUT, CROWN(82U)

90176-08063-00

—
Out of stock

17

FLAP

88K-77595-20-00

1
Out of stock

18

STOPPER, FLAP

89X-77596-00-00

1
Out of stock

19

PROTECTOR 6

89X-77556-00-00

1
Out of stock

20

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

21

EMBLEM

89X-24897-00-00

1
Out of stock

22

GROMMET (8L1)

90480-15268-00

—

$20.82

In stock
