2001 Yamaha ET410TRF 8BY8 Frame Diagram

← All diagrams

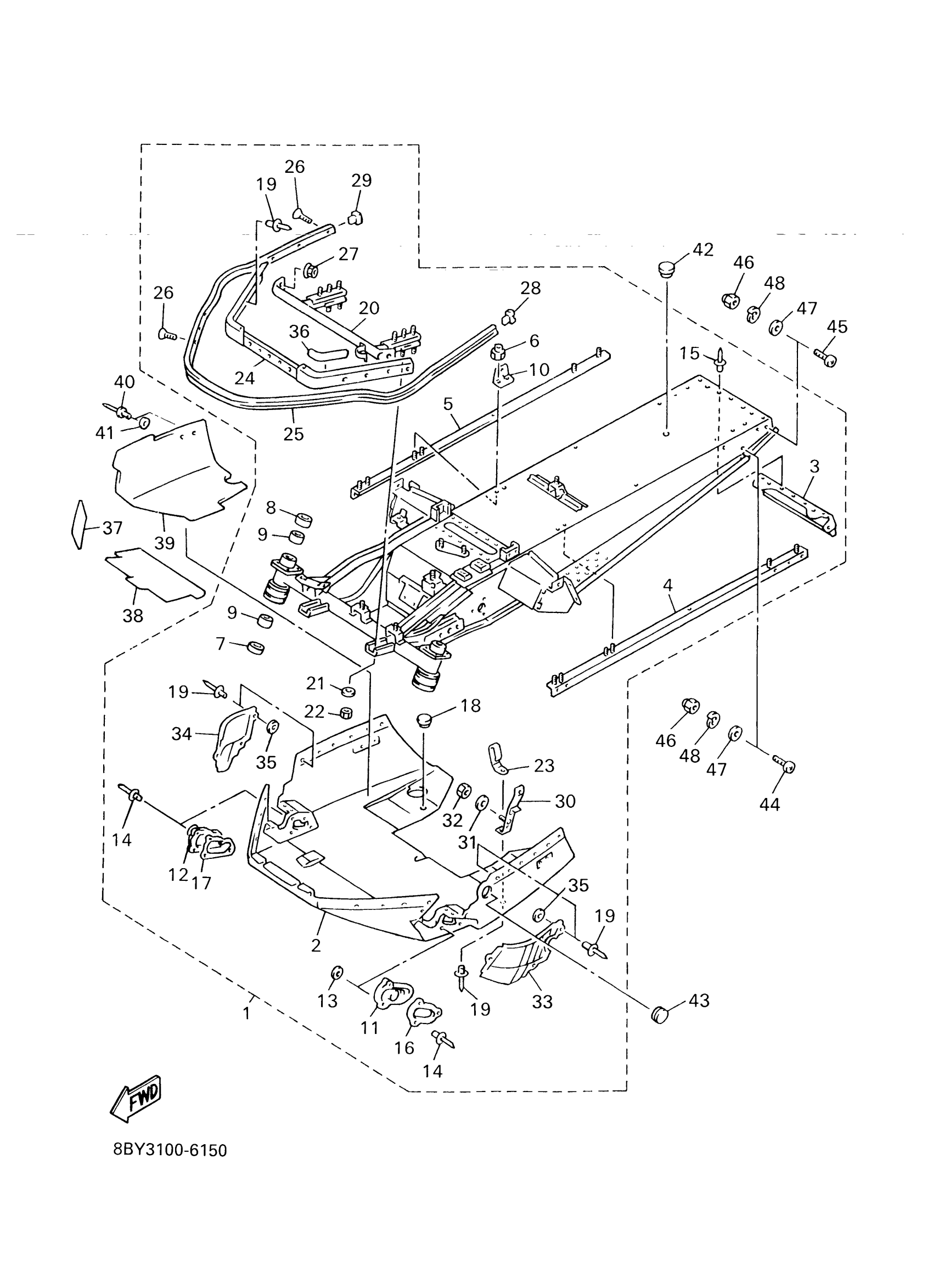

Find the part on the Frame diagram for your 2001 Yamaha ET410TRF 8BY8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha ET410TRF 8BY8 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

89Y-21910-00-00

1
Out of stock

2

. PANEL, SUB FRAME 1

89X-21912-00-00

1
Out of stock

3

. REINEFORCEMENT, FRAME REAR 1

8X0-21923-00-00

1
Out of stock

4

. PATCH 4

89X-21964-00-00

1
Out of stock

5

. PATCH 5

89X-21965-00-00

1
Out of stock

6

NUT, NYLON

95707-06300-00

1

$3.20

In stock

7

OIL SEAL (8M6)

93103-36117-00

1

$20.31

In stock

8

OIL SEAL (8M6)

93102-36232-00

1

$9.51

In stock

9

1

$9.68

In stock

10

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

11

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

12

. COVER 2

80L-2198G-00-00

1
Out of stock

13

WASHER, PLATE

90201-04027-00

1
Out of stock

14

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

15

RIVET

90269-04019-00

1
Out of stock

16

SPACER

8M6-21998-00-00

—

$3.05

In stock

17

. WASHER 2

80L-77526-00-00

1
Out of stock

18

SPACER

80F-21998-00-00

—

$11.69

In stock

19

RIVET, BLIND

90267-48018-00

—

$7.35

In stock

20

. BUMPER, FRONT 2

89X-77512-00-00

1
Out of stock

21

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

22

NUT, NYLON

95717-08300-00

—

$2.57

In stock

23

CLAMP(51Y)

90465-08277-00

—
Out of stock

24

. PLATE, BACK UP 1

89X-77153-00-00

1
Out of stock

25

BUMPER, FRONT 1

89X-77511-A0-00

1
Out of stock

26

SCREW, FLAT HEAD(JH8)

98707-08035-00

—
Out of stock

27

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

28

. END, BUMPER

89X-77523-00-00

1
Out of stock

29

. END, BUMPER

89X-77524-00-00

1
Out of stock

30

. STAY, BELT

89X-77338-00-00

1
Out of stock

31

—

$6.58

In stock

32

NUT(6TA)

95317-06600-00

—

$2.69

In stock

33

. COVER 1

89X-2198F-00-00

1
Out of stock

34

. COVER 2

89X-2198G-00-00

1
Out of stock

35

WASHER, PLATE

90201-04027-00

1
Out of stock

36

. PROTECTOR, FRAME

89X-21978-00-00

1
Out of stock

37

SHIELD, NOISE

89X-2199F-00-00

1
Out of stock

38

SHIELD, HEAT

89X-2199H-00-00

1
Out of stock

39

SHIELD, NOISE 2

89X-2199J-00-00

1
Out of stock

40

RIVET, BLIND

90267-48018-00

—

$7.35

In stock

41

WASHER, PLATE

90201-04027-00

1
Out of stock

42

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

43

PLUG (8H8)

90338-44093-00

—

$13.91

In stock

44

SCREW,BINDING

98907-08014-00

1
Out of stock

45

SCREW, BINDING

98907-08016-00

1
Out of stock

46

NUT, CROWN

95303-08800-00

—

$7.52

In stock

47

WASHER(6TC)

92907-08200-00

—
Out of stock

48

WASHER(JN5)

92907-08100-00

—

$5.98

In stock
